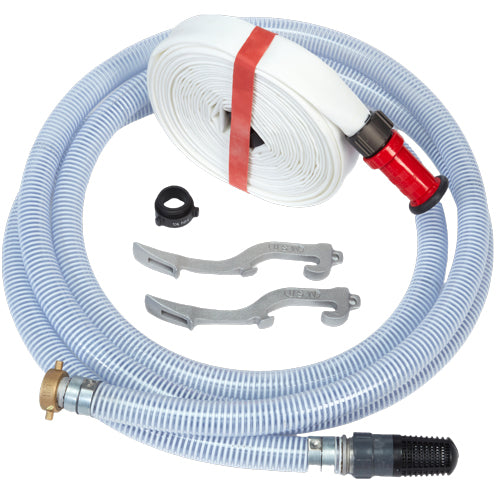

Kit includes a heavy-duty PVC suction hose, lay-flat 1 1/2" forestry hose and an industrial-grade polyurethane strainer to keep waste from clogging your pump. Both hoses feature aluminum water shank couplings to connect easily to any NPT pump or accessory. High-quality aluminum adapters are included to make size and length adjustments easy.

Applications

• Residential
• General purpose
• Agricultural
• Irrigation
• Construction

White-Clear 1 1/2" x 20' Thread / Thread Suction Hose

• Suction Hose Length - 20 feet
• Male Coupling - Aluminum 1 1/2 inch NPSH
• Female Coupling - Brass 1 1/2 inch NPSH
• The Male Coupling Will Only Connect to a Female 1 1/2 inch NPSH, or NPSM threads
• The Female Coupling Will Only Connect to a Male 1 1/2 inch NPSH, NPT or NPSM threads
• Working Temperature - 140° F to -5° F

Plastic 1 1/2" NPT Barrel Strainer with Foot Valve

• Material: PVC
• Threads: 1 1/2 inch Female NPT
• This strainer will only connect to a hose with 1 1/2 inch Male NPT or NPSH threads
• Seal Material: Nitrile Rubber
• Poppet Material: Acetal
• Screen Material: Polypropylene
• Spring Material: Stainless Steel
• Maximum Pressure Rating: 150 PSI
• Lead Free

Aluminum 1 1/2" Female NPSH to 1 1/2" Male NH

• Made In USA
• Female Side: 1 1/2 inch NPSH
• The Female will only Connect to a Male 1 1/2 inch NPSH or NPT
• Male Side: 1 1/2 inch NH / NST
• The Male will only Connect to a Female 1 1/2 inch NH / NST
• Material: 6061-T6 Aluminum
• Finish: Hard Coat Anodized
• Complies With NFPA 1963 (Corrosion Resistance)
• 99.95% Lead Free

White 1 1/2" x 50' Forestry Hose (Alum NH Couplings)

• Imported
• Hose Size: 1 1/2 inches (Inside Diameter)
• Hose Length: 50 feet (Approximately)
• Male Coupling: Aluminum 1 1/2 inch NH / NST
• Swivel Female Coupling: Aluminum 1 1/2 inch NH / NST
• The Female Coupling will only Connect to a Male 1 1/2 inch NH / NST
• Compatible Nozzle: 1 1/2 inch NH / NST only
• Hose Type: Polyester Single Jacket (Mildew Resistant)
• Color: White
• Liner: Thermoplastic Polyurethane (TPU)
• Approximate Width Laying Flat: 2 1/2 inches
• Working Pressure: 300 PSI
• Test Pressure: 600 PSI
• Burst Pressure: 900 PSI

• Made In USA
• Material: Plastic
• Size: 1 1/2 inches
• Threads: NH / NST 9 TPI
• This nozzle will only connect to a 1 1/2 inches NH / NST hose
• Maximum operating pressure: 100 PSI
• Approximate Gallons Per Minute: 60 GPM
• Approximate Distance: 60 feet
• Positions: Fog, straight stream and off
• NSN: 4210-00-181-8872
• NFES: 0138

Fire Hose Spanner Wrench

• Made In USA
• Fits: 1 inch to 3 inch Pin or Rocker Lugs Couplings
• Gas Cock Shut-off
• Length: 11 7/8 inches
• Material: Aluminum

Fire Hose Retaining Rubber Band

• Material: Natural Rubber
• Color: Red
• Length: 9 1/2 inches
• Width: 1 3/8 inches
• Thickness: 0.063 inch
• NFES#: 0727
• NSN: 4210-01-529-8489
• HS Code: 4016.99.3550

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

• The female side of a NH / NST coupling will only connect to a male NH / NST connection
• The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

• The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
• The male side of a NPSH coupling will only connect to a female NPSH connection
• It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
