2" Pump Kit

  • 2" Pump Kit
1 7
Price: $141.74
$0.00 $141.74
Sale Sold out

Stock Level: 5

Product Status: Limited Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Dec 26, 2024


Item Number: PK20
Weight: 28.0 lb

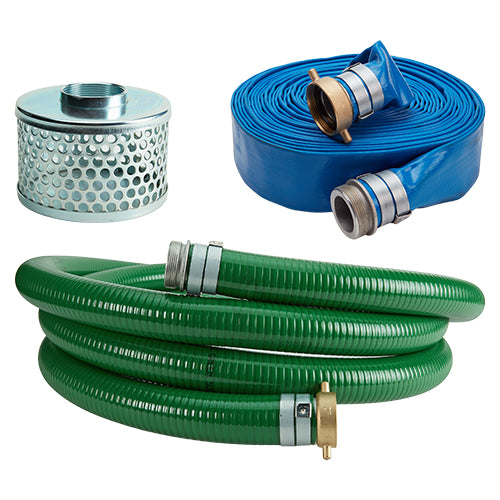

  • Green 2" x 20' Thread / Thread Suction Hose
  • Blue 2" x 50' Lightweight Discharge Hose

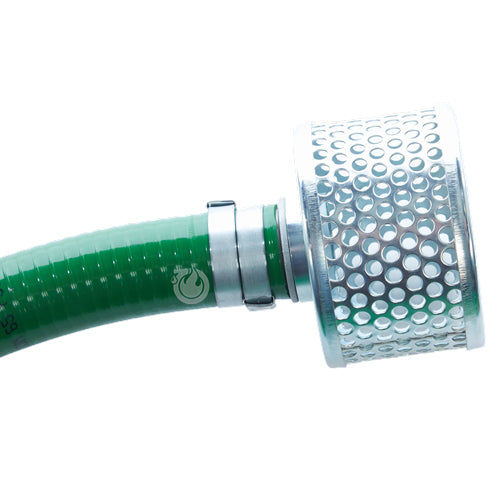

  • Steel 2" NPSH Barrel Strainer
View full details

Description

Kit includes a heavy-duty PVC suction hose, lay-flat PVC discharge hose and an industrial-grade plated steel strainer to keep waste from clogging your pump. Both hoses feature aluminum water shank couplings to connect easily to any NPT pump or accessory.

Applications

  • General purpose
  • Agricultural
  • Irrigation
  • Construction

Specifications

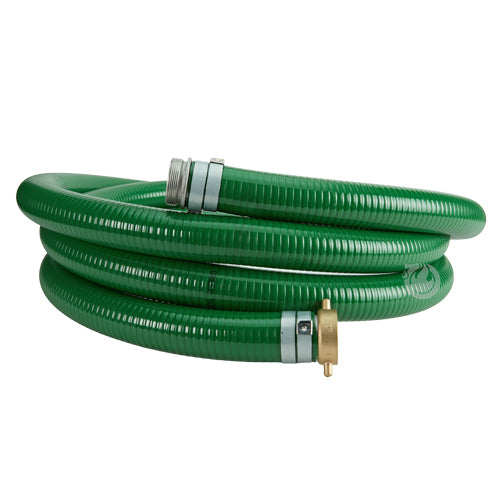

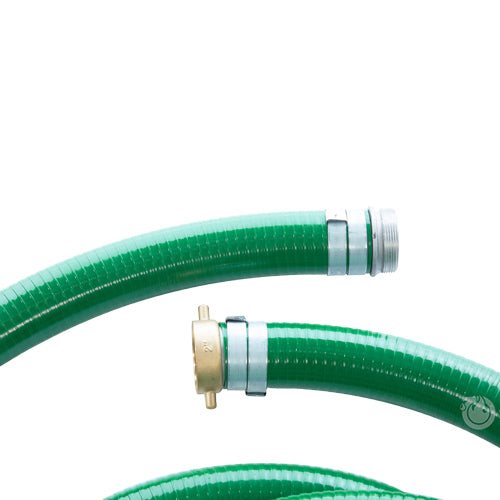

Green 2" x 20' Thread / Thread Suction Hose

  • Suction Hose Length: 20 feet
  • Male Coupling: Aluminum 2 inch NPSH
  • Female Coupling: Brass 2 inch NPSH
  • The Male Coupling will only Connect to a Female 2 inch NPSH or NPSM threads
  • The Female Coupling will only Connect to a Male 2 inch NPSH, NPT or NPSM threads
  • Approx. Bend Radius: 7" at 68°
  • Weight Per Foot: .61 pounds
  • Working Temperature: 0° F to 158° F
  • Hose ID: 2 inches
  • Hose OD: 2 7/8 inches
  • Vacuum Rating: 29" Hg @ 68°, 24" HG at 104°

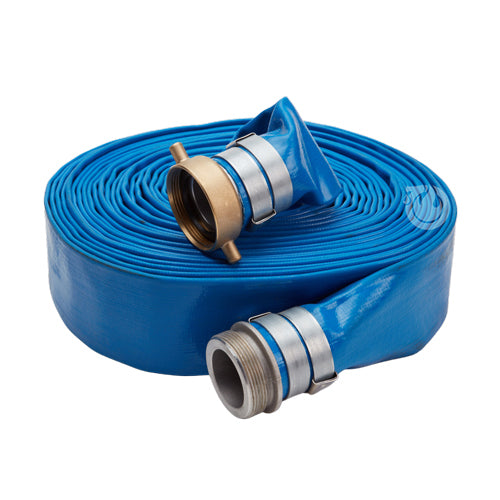

Blue 2" x 50' Lightweight Discharge Hose

  • Hose Size: 2 inches
  • Hose Length: 50 feet
  • Male coupling: Aluminum 2 inch Pipe Thread (NPT)
  • Female coupling: Brass 2 inch Straight Pipe Thread (NPSH)
  • The Female Coupling will only Connect to a Male 2 inch NPT or NPSH
  • Maximum Pressure: 80 PSI
  • Tube: Blue Lay Flat PVC
  • Approximate wall thickness: 0.06 inch
  • Weight per foot: 0.23 pounds
  • Type of use: Water
  • Working temperature: 14° F to 150° F

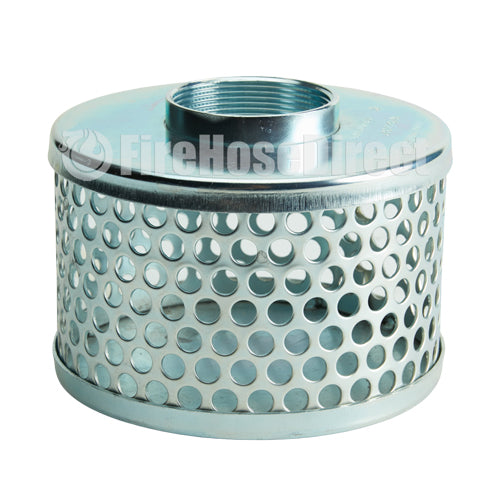

Steel 2" NPSH Barrel Strainer

  • Material: Zinc Steel
  • Threads: NPSH
  • Connection: This strainer will only thread onto a NPT or NPSH hose
  • Size: 2 inches

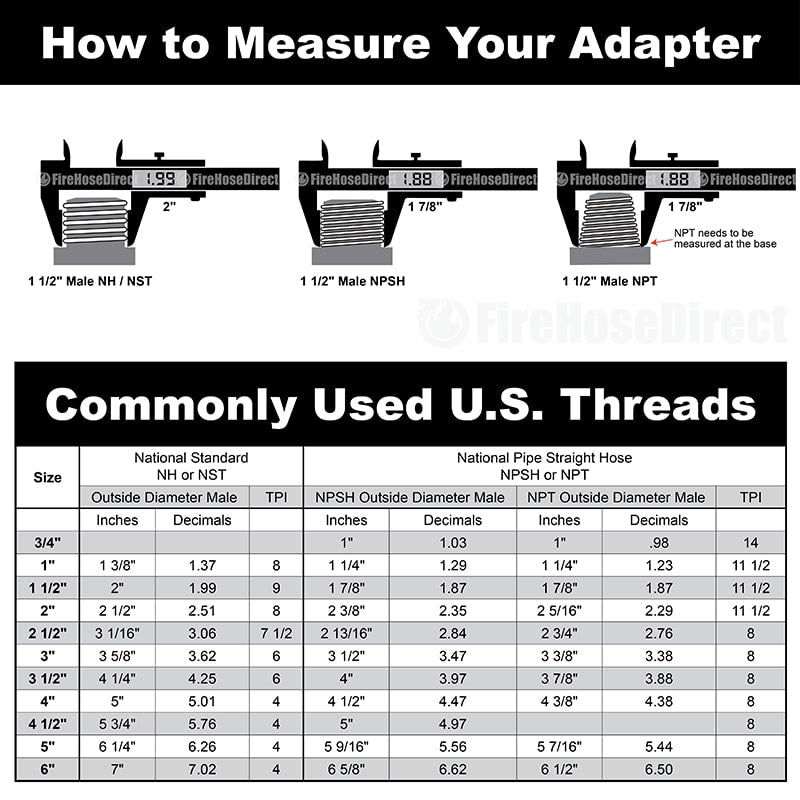

Help Me Connect

2" Male Hose Coupling
  • Inside diameter of a male adapter: 2 inches
  • Outside diameter of a male NH / NST adapter: 2 1/2 inches (2.51) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 2 3/8 inches (2.35) - 11.5 Threads per inch

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
