Akron ProVenger 1" Heavy-Duty 5 to 40 GPM Fire Nozzle (NPSH)

  • Akron ProVenger 1" Heavy-Duty 5 to 40 GPM Fire Nozzle (NPSH)
1 7
Price: $592.86
$0.00 $592.86
Sale Sold out

Stock Level: 4

Product Status: Limited Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Dec 21, 2024


Item Number: 1602P
Weight: 3.0 lb
  • Made In USA
  • Material: Pyrolite
  • Size: 1 inch
  • Length: 9 1/4 inches
  • Threads: NPSH
  • This nozzle will only connect to a 1 inch NPSH hose
  • Gallons Per Minute: 5-10-20-40 GPM @ 100 PSI
View full details

Description

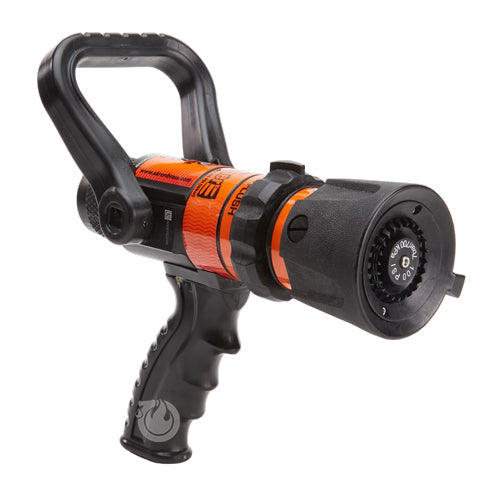

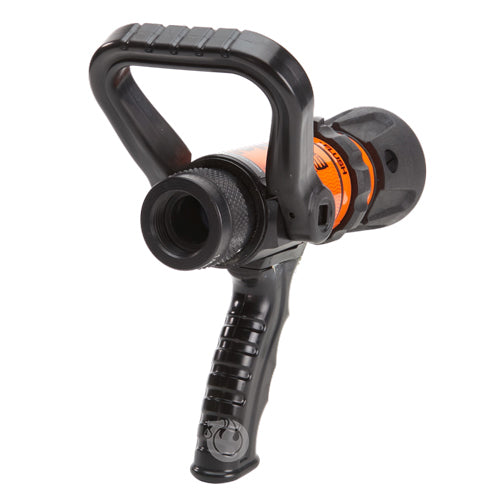

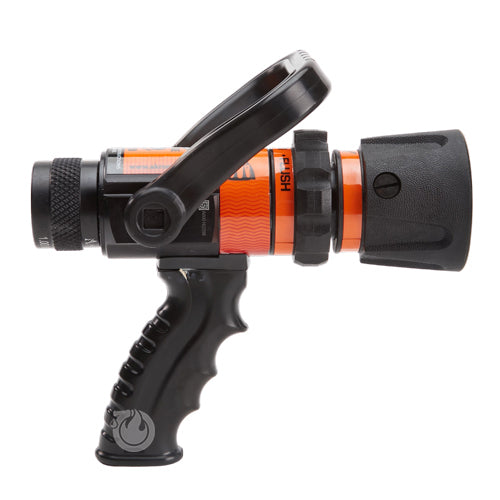

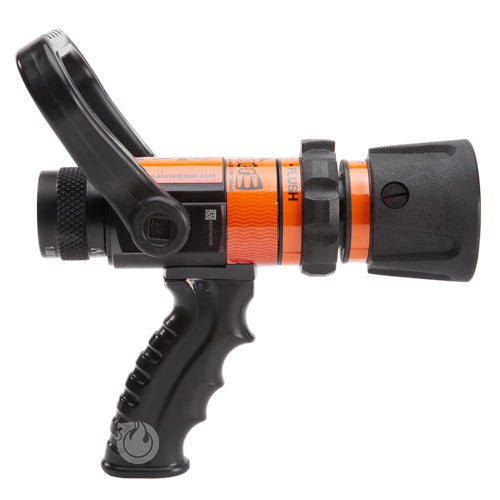

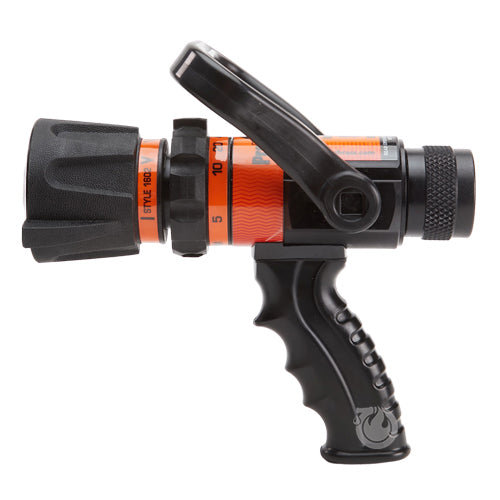

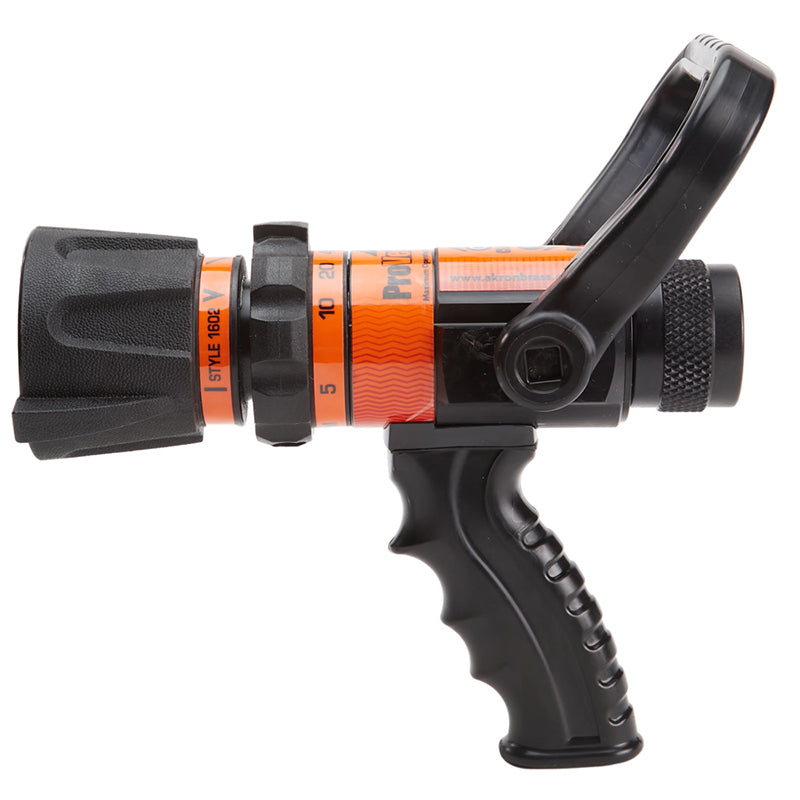

The 1 inch ProVenger 1602 is the selectable gallonage fire nozzle which makes it perfect for wildland applications. A lightweight fog and straight stream nozzle with multiple gallonage settings. This nozzle has spinning turbine teeth, a one-piece solid nylon reinforced bumper, one-piece solid rubber-like handle with dual stops, dual drive trunnions, and an extruded single piece Pyrolite body. The nozzle has a solid rubber-like pistol grip that can be easily removed. The nozzle meets all aspects of NFPA 1964.

Features

  • Great stream performance
  • Easy to operate
  • Quickly adjust from straight stream to full fog with only a quarter-turn rotation
  • Raised indicator lug on the bumper for easy pattern identification
  • Multiple pattern detents
  • Integrated control ring does not require you to flush the nozzle without shutting down or changing stream patterns
  • NFPA 1964 compliant
  • 5 year warranty
  • Swivel Inlet 1 inch NPSH
  • 5-10-20-40 GPM @ 100 PSI

Applications/Solutions

  • Fire OEMs
  • Firefighting - Airport (ARFF)
  • Firefighting - Industrial
  • Firefighting - Structural
  • Firefighting - Wildland Forestry



Specifications

1" Male Hose

  • Inside diameter of a male hose: 1 inch
  • Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch

Akron Provenger Fire Nozzle

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Five year warranty
