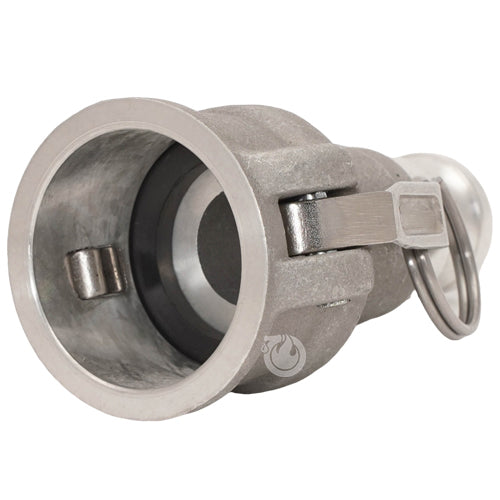

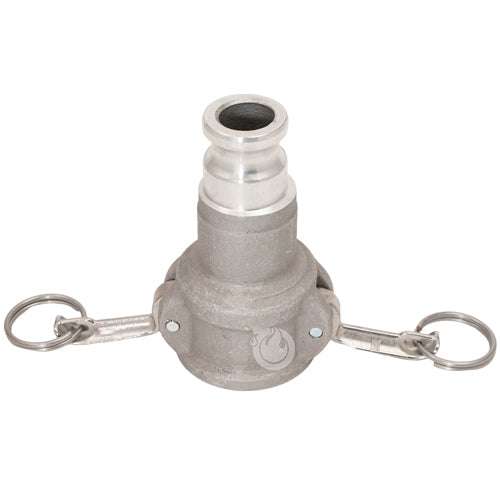

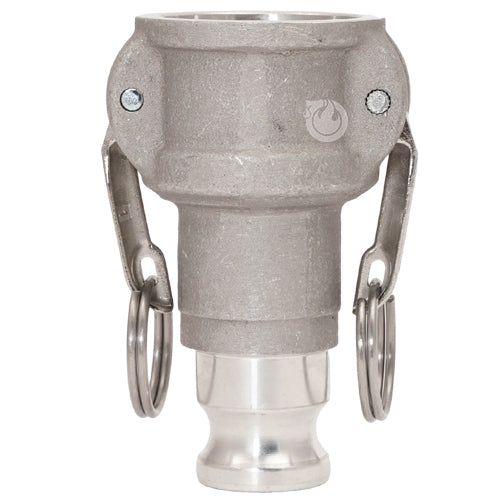

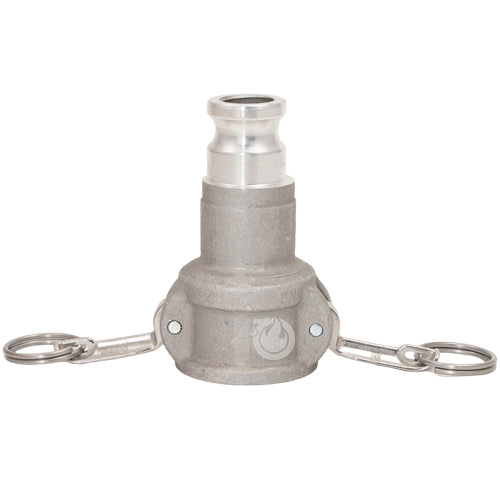

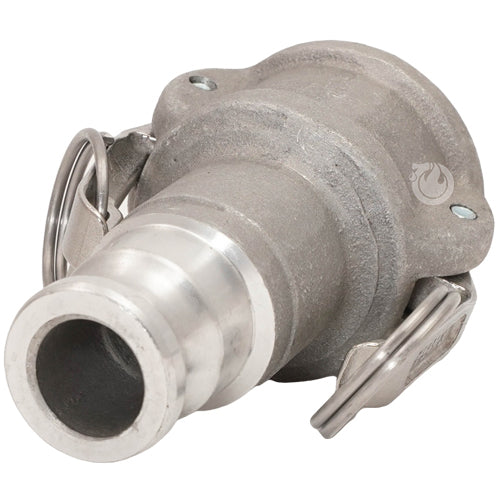

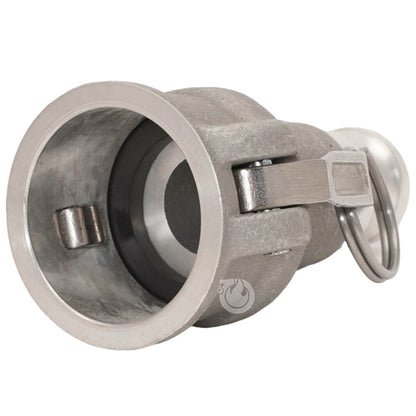

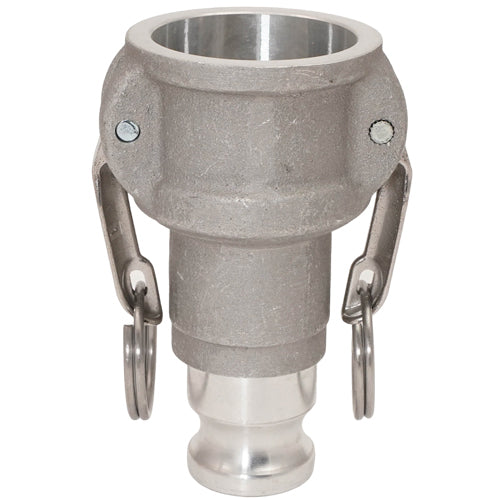

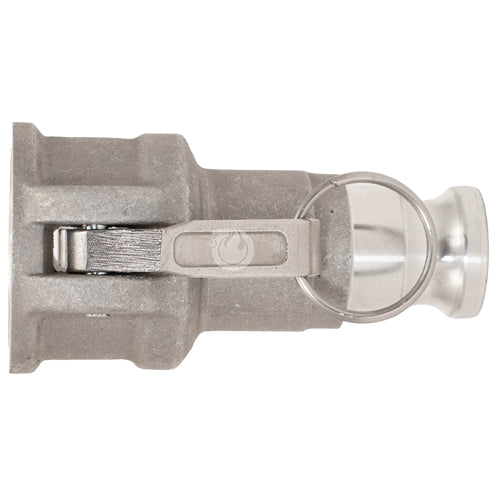

Aluminum 1 1/2" Female Camlock x 1" Male Camlock

Item Number: GA15F10M
1 8
$41.40
$0.00 $41.40
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 1.0 lb
  • Body Material: Aluminum
  • Camlock (Cam & Groove) Size: 1 1/2 inch Female
  • Camlock (Cam & Groove) Size: 1 inch Male
  • Maximum Operating Pressure: 250 PSI
  • Seal: Buna

Description

This aluminum camlock adapter facilitates quick connections between a 1 1/2 inch male camlock and a 1 inch female camlock. Constructed from aluminum with a Buna seal, it offers durability for industrial hose applications. Designed for use with water, hydraulic oil, coolants, gasoline, and petroleum products, this fitting has a maximum operating pressure of 250 PSI. Its cam and groove design ensures simple and economical coupling and uncoupling, making it suitable for sectors like construction, chemical, and marine. This adapter is not intended for compressed air or steam service.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Aluminum 1 inch female camlock (Cam & Groove) coupler to 1 inch male camlock (Cam & Groove) coupler.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to a 1 1/2 inch male camlock
  • The male side of this adapter will only connect to a 1 inch female camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

Female Camlock Dimensions

  • Size: 1 1/2 inches (1.50)
  • Female Inside Diameter: 2 1/8 inches (2.125)

Male Camlock Dimensions

  • Size: 1 inches (1.00)
  • Male Outside Diameter: 1 7/16 inches (1.437)

FAQs

What are the primary connection sizes for this camlock adapter?

This adapter features a 1 1/2 inch female camlock connection and a 1 inch male camlock connection. The female side will connect to a 1 1/2 inch male camlock, and the male side will connect to a 1 inch female camlock.

What material is this camlock adapter constructed from?

The body of this camlock adapter is made from aluminum, and it features a Buna seal for reliable performance.

What is the maximum operating pressure for this adapter?

This camlock adapter is rated for a maximum operating pressure of 250 PSI.

What liquids are compatible with this aluminum camlock adapter?

This aluminum adapter is suitable for use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Can this camlock adapter be used for compressed air or steam service?

No, this camlock adapter should not be used for compressed air or steam service under any circumstances.

How does one connect or disconnect hoses using this camlock fitting?

To connect, slide the adapter into the coupling and press the cam levers down with normal hand pressure. To disconnect, simply lift the cam arms and remove the adapter.
