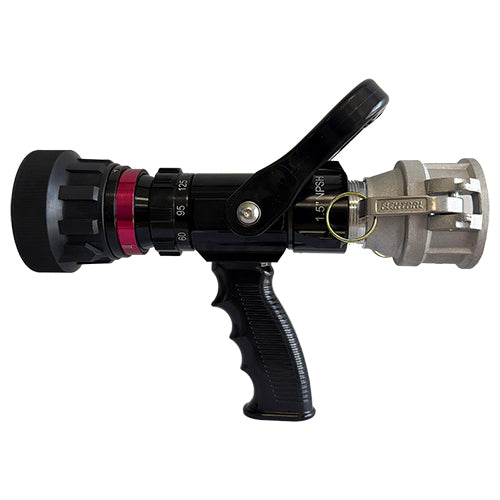

High strength aluminum heavy-duty 1 1/2 NPSH selectable gallonage nozzle. Outfitted with large rubber bumper, 316 stainless steel shutoff ball, stainless steel spinning teeth and stainless steel inlet screen. Polyamide flow control ring with raised lugs for easy flow control adjustment under pressure. Anodized metal body bands with topcoat to resist scratching.

This nozzle has the capability to be fully flushed to help with clearing of any debris and conforms to all aspects of NFPA 1964. Each nozzle etched with unique serial number for easy tracking.

NPSH and NPT are more common in industrial applications.

Global type "B" aluminum 2 inch female camlock (Cam & Groove) coupler to 1 1/2 inch male NPT threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

• The female side of this adapter will only connect to a 2 inch male camlock
• The male threaded side of this adapter will only connect to a 1 1/2 inch female National Pipe Straight Hose (NPSH) or National Pipe Tapered (NPT), for example, PVC or metal pipe fitting



Female Camlock Dimensions

• Size: 2 inches (2.00)
• Female Inside Diameter: 2 1/2 inches (2.519)

• The female side of a garden hose will only connect to a male garden hose connection
• The male side of a garden hose will only connect to a female garden hose connection

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

• The female side of a NH / NST coupling will only connect to a male NH / NST connection
• The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

• The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
• The male side of a NPSH coupling will only connect to a female NPSH connection
• It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Limited 5 year Manufacturer's Warranty
