Aluminum 1 1/2" Storz Cap with Cable

  • Aluminum 1 1/2" Storz Cap with Cable
1 3
Price: $93.81
$0.00 $93.81
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Dec 26, 2024


Item Number: SC15-D
Weight: 1.5 lb
  • Made In USA
  • Cap Size: 1 1/2 inches (38mm)
  • Inside Distance Between Lugs: 2 1/16 inches (52mm)
  • Material: Aluminum
  • Cable Length: 18 inches
  • Locking Cap: NO
  • Maximum Operating Pressure: 150 PSI
  • This cap will only connect to another 1 1/2 inch storz fitting
  • Gasket Pressure
View full details

Description

Aluminum storz cap with cable. Machined from forged 6061 - T6 aluminum. Hard coat anodized components per MIL-A-8625 Type III Class 1. Buna-N gaskets to resist most hydrocarbons, oils, gasoline, acids and greases. Complies with DIN standards which require that Storz heads must be forged when used in firefighting applications.

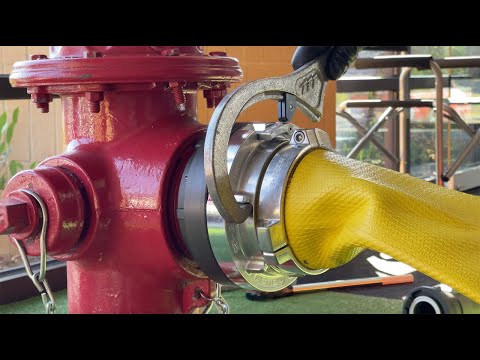

A Storz fitting enables a quarter turn sexless connection, no female or male side, with another Storz fitting. Connection features hooks and flanges with seal made by built-in included gaskets.

Specifications

1" (25mm) Storz Adapter
  • Inside Distance Between Lugs - 1 7/32 in (31mm)
  • Number of Lugs - 2
1.5" (38mm) Storz Adapter
  • Inside Distance Between Lugs - 2 1/16 in (52mm)
  • Number of Lugs - 2
2" (50mm) Storz Adapter
  • Inside Distance Between Lugs - 2 5/8 in (66mm)
  • Number of Lugs - 2
2.5" (65mm) Storz Adapter
  • Inside Distance Between Lugs - 3 3/16 in (81mm)
  • Number of Lugs - 2
3" (75mm) Storz Adapter
  • Inside Distance Between Lugs - 3 1/2 in (89mm)
  • Number of Lugs - 2
4" (100mm) Storz Adapter
  • Inside Distance Between Lugs - 4 1/2 in (115mm)
  • Number of Lugs - 2
5" (125mm) Storz Adapter
  • Inside Distance Between Lugs - 5 13/16 in (148mm)
  • Number of Lugs - 2
6" (150mm) Storz Adapter
  • Inside Distance Between Lugs - 6 5/16 in (160mm)
  • Number of Lugs - 3
