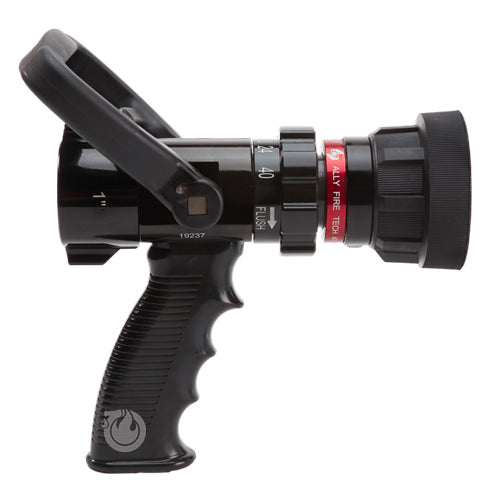

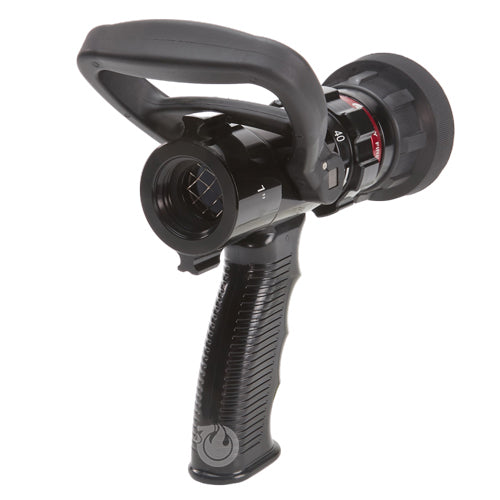

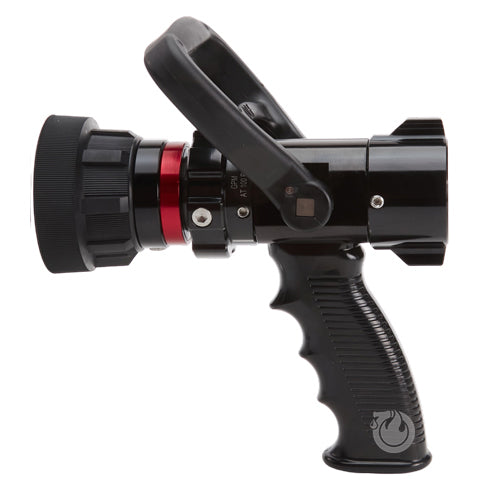

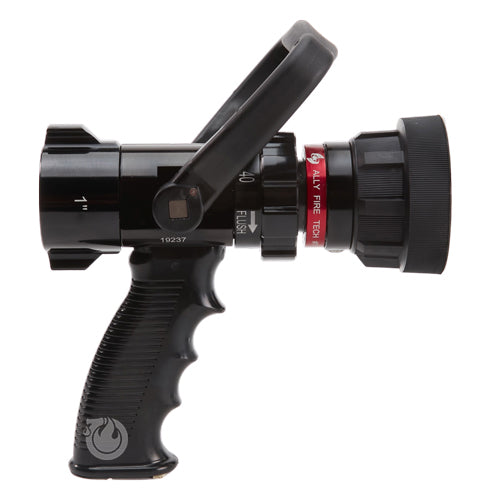

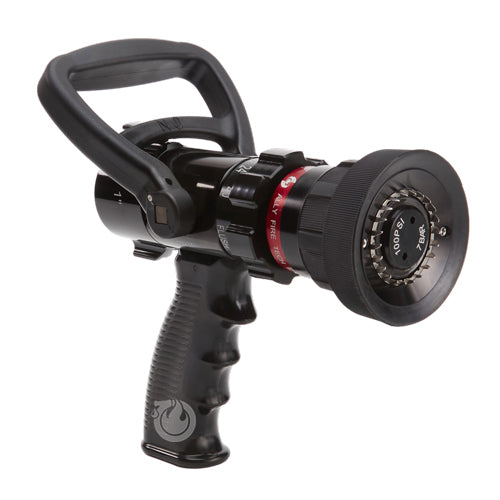

Aluminum 1" Heavy-Duty 5 to 40 GPM Fire Nozzle (NH)

Skip to product information
1 of 7
Regular price Price: $464.63
Regular price $0.00 Sale price $464.63
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Dec 24, 2024


Item Number: 710
Weight: 2.55 lb
  • Material: Aluminum
  • Size: 1 inch
  • Threads: NH / NST
  • This Nozzle will only Connect to a 1 inch NH / NST Hose
  • Maximum Operating Pressure: 100 PSI
  • Gallons Per Minute: 5-10-24-40 Selectable GPM
  • Conforms to NFPA 1964 Standard: 2018 Edition
View full details

Collapsible content

Description

Achieve maximum stream reach even when your water source has low to moderate pressure with this high strength aluminum heavy-duty 1inch NH / NST selectable gallonage nozzle. Outfitted with large rubber bumper, 316 stainless steel shutoff ball, stainless steel spinning teeth and stainless steel inlet screen. Polyamide flow control ring with raised lugs for easy flow control adjustment under pressure. Anodized metal body bands with topcoat to resist scratching.

This nozzle has the capability to be fully flushed to help with clearing of any debris and conforms to all aspects of NFPA 1964. Each nozzle etched with unique serial number for easy tracking.

National Hose (NH) aka National Standard Thread (NST) is often referred to as “fire hose thread” as this is by far the most common thread in use today by fire departments.

Specifications

1" Male Hose

  • Inside diameter of a male hose: 1 inch
  • Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection
