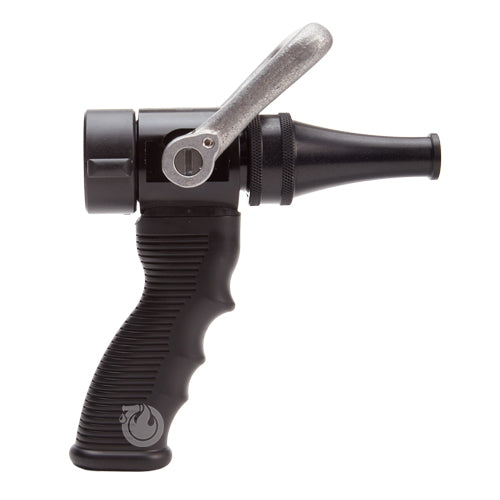

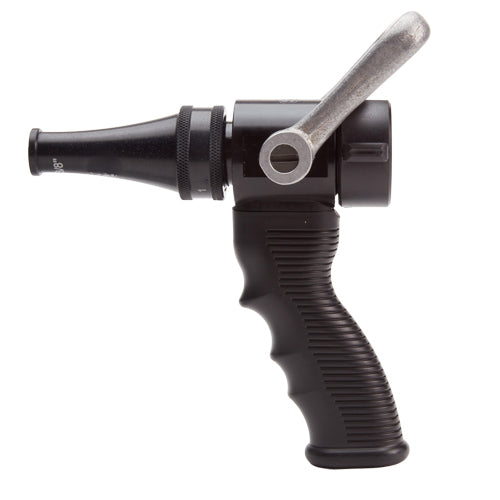

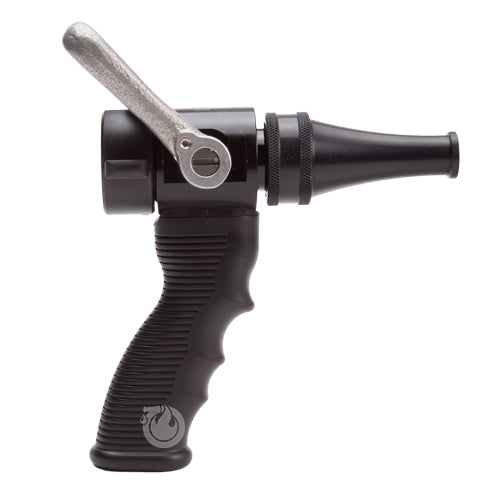

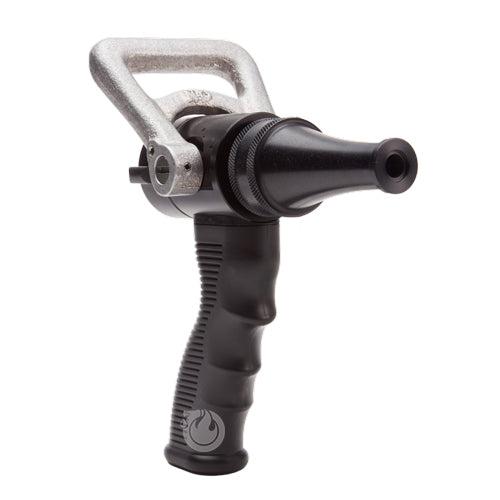

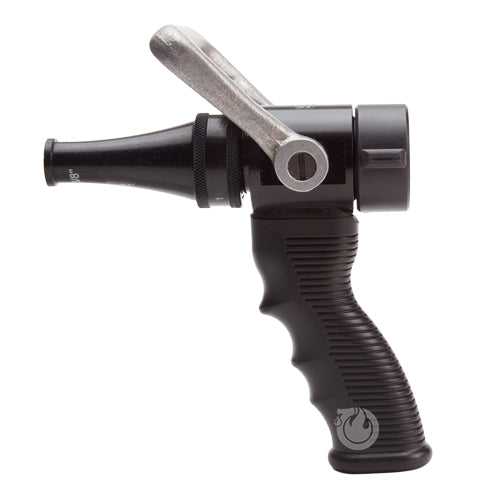

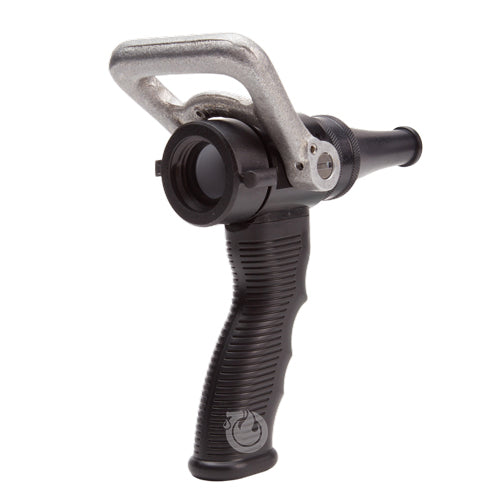

Aluminum 1" x 3/8" Orifice Pistol Grip Smooth Bore Fire Nozzle (NH)

Item Number: BA1SB38
1 8
$343.68
$0.00 $343.68
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping
Free Shipping
  • Made In USA
  • Weight: 2.5 lb
  • Material: Aluminum
  • Size: 1 inch
  • Threads: NH / NST
  • This nozzle will only connect to a 1 inch NH / NST hose
  • Approximate Distance: 60 feet
  • Nozzle Orifice: 3/8 inch
  • Positions: Straight stream and off

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection
View full details

Additional Details

Anodized aluminum 1 inch NH pistol grip ball shut-off valve with polymer bale and durable polymer pistol grip that is easily removed. Pistol grip allows for stable and comfortable use. Valve has stainless steel ball and inlet screent.

National Hose (NH) aka National Standard Thread (NST) is often referred to as “fire hose thread” as this is by far the most common thread in use today by fire departments, however there are "local" exceptions.

To remove the grip an Allen Wrench is needed.



Specifications

1" Male Hose

  • Inside diameter of a male hose: 1 inch
  • Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch
