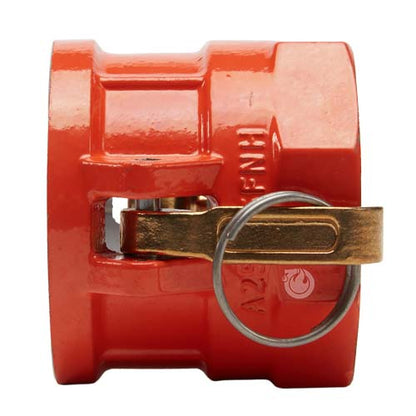

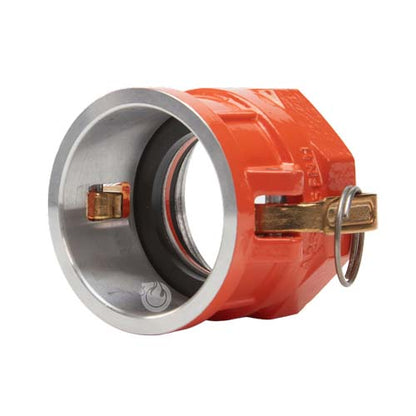

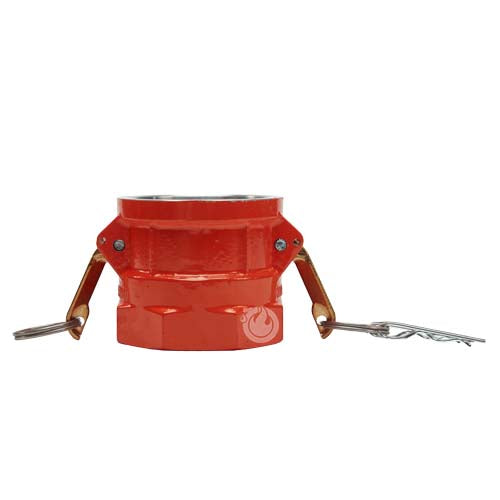

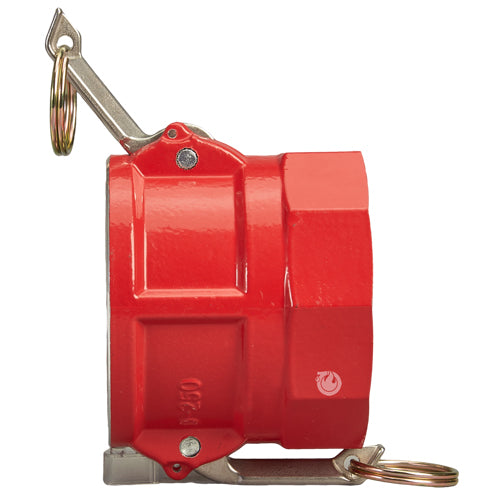

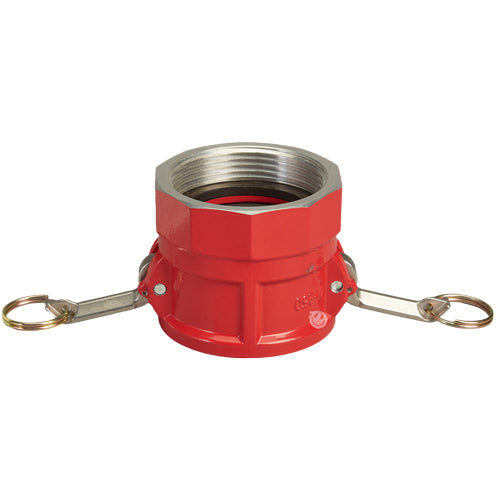

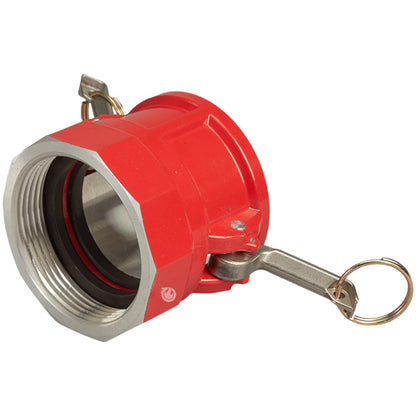

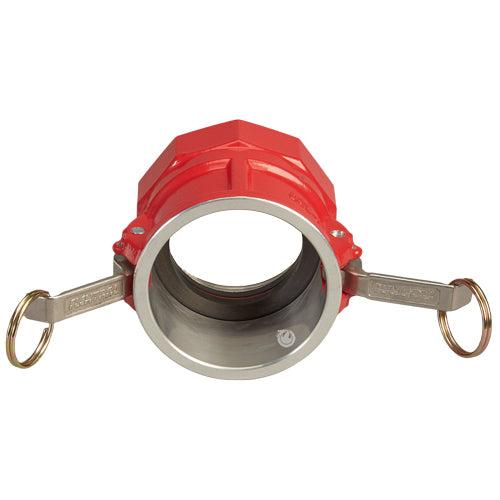

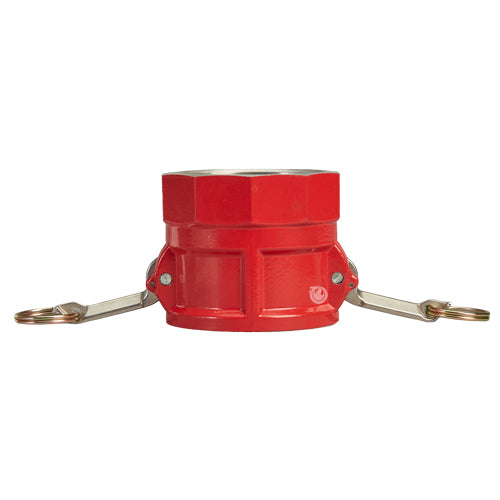

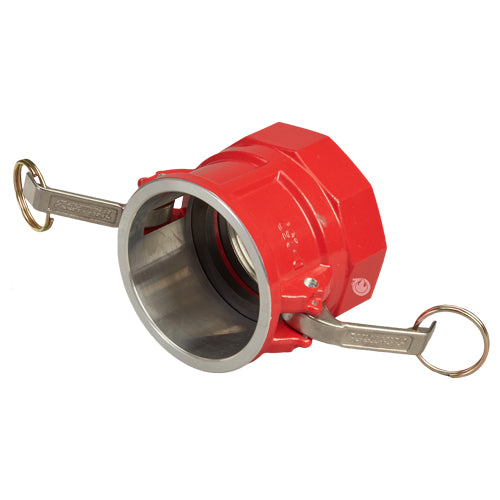

Aluminum 2 1/2" Female Camlock x 2 1/2" Female NH Fire Hose

Skip to product information
1 of 8
Regular price Price: $48.98
Regular price $0.00 Sale price $48.98
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Oct 14, 2024


Item Number: GA25F25FNH
Weight: 1.25 lb
  • Body Material: Aluminum
  • Camlock (Cam & Groove) Size: 2 1/2 inch Female
  • Threaded Size: 2 1/2 inch Female NH / NST
  • Maximum Operating Pressure: 150 PSI
  • Seal: Buna
  • Type: "D" Quick Disconnect
View full details

Collapsible content

Description

Our aluminum cam and groove to NH fire hose threaded fittings are designed to convert a standard NH/NST "fire hose thread" hose or adapter to a standard camlock. Finished in bright orange to distinguish them from regular camlock to NPT "pipe thread" cam and grove fittings. NH/NST threads are NOT compatible with NPT or NPSH threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to a 2 1/2 inch male camlock
  • The female threaded side of this adapter will only connect to a 2 1/2 inch male National Hose (NH) or National Standard Thread (NST)

The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST

How it works

  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter

Cam and groove couplings, also called cam lock fittings or quick connect couplings, are used in most industries as a hose connection to avoid leakages. This kind of coupling is popular because it is considered to be a simple and economical way of re-connecting and disconnecting.



Specifications

Female Camlock Dimensions

  • Size: 2 1/2 inches (2.50)
  • Female Inside Diameter: 3 inches (3.031)

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
