Aluminum 2 1/2" NH Inlet X (2) 1 1/2" NPSH Outlet

Skip to product information
1 of 4
Regular price Price: $432.37
Regular price $0.00 Sale price $432.37
Sale Sold out

Stock Level: 9

Product Status: Limited Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 3, 2024


Item Number: ABV2515P-D
Weight: 5.0 lb
  • Made In USA
  • Material: Aluminum
  • Inlet: 2 1/2 inch Female NH / NST Threads
  • The Female will only Connect to a Male 2 1/2 inch NH / NST
  • Outlet: Two Male 1 1/2 inch NPSH Threads
  • The Male will only Connect to a 1 1/2 inch NPSH
  • Handles are non-locking
View full details

Collapsible content

Description

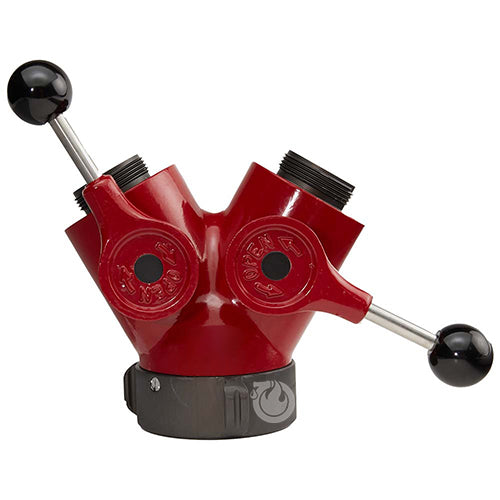

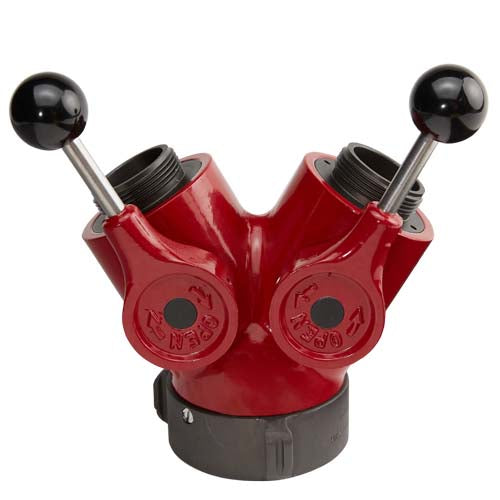

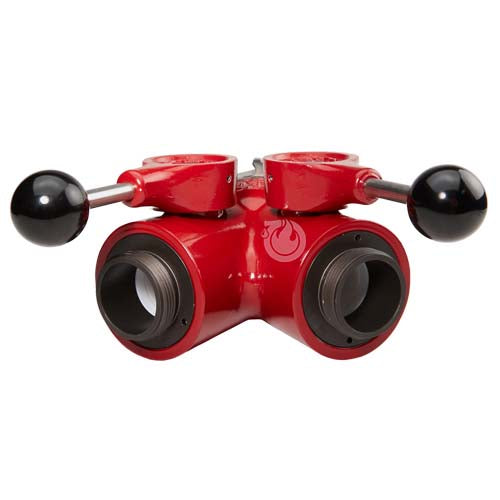

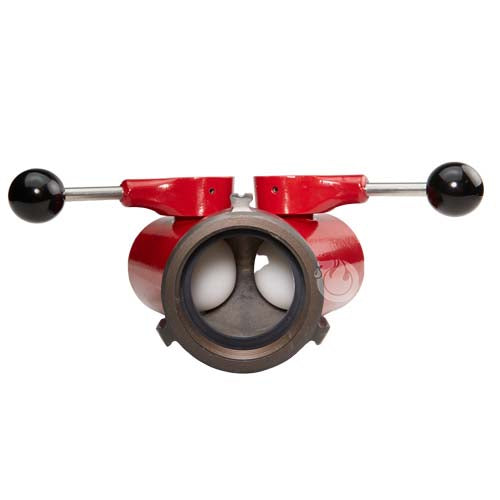

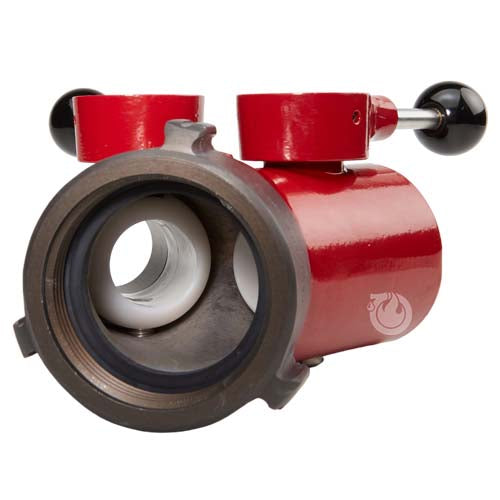

Our Made in the USA lightweight aluminum ball valve is designed to be the best available. It is constructed 6061-T6 seamless aluminum with a hardcoat and powdercoat finish. It is equipped with a high quality synthetic Delrin ball and seat for easy operation at all pressures. The inlet swivels and outlet connections are hard coat anodized to MIL-A-8625 Type III, Class I.

Specifications

1 1/2" Male Adapter
  • Inside diameter of a male adapter: 1 1/2 inches
  • Outside diameter of a male NH / NST adapter: 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 7/8 inches (1.87) - 11.5 Threads per inch
2 1/2" Male Adapter
  • Inside diameter of a male adapter: 2 1/2 inches
  • Outside diameter of a male NH / NST adapter: 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 2 7/8 inches (2.84) - 8 Threads per inch

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
