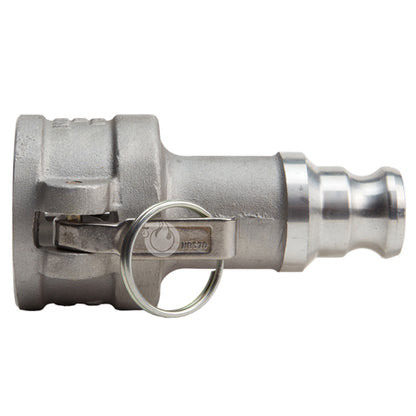

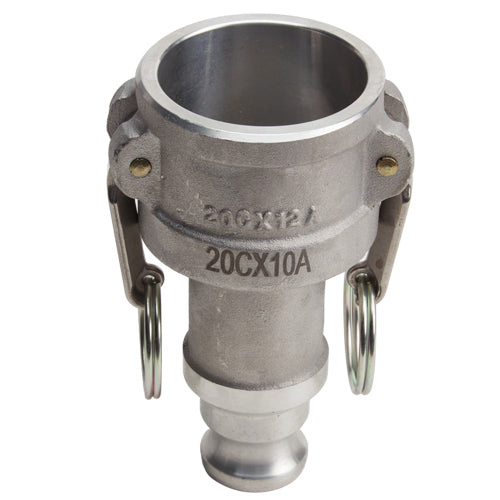

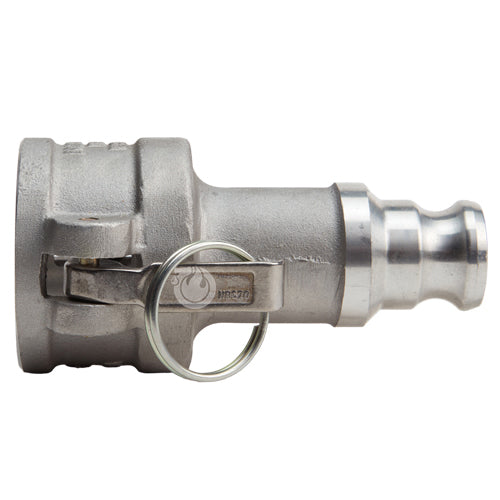

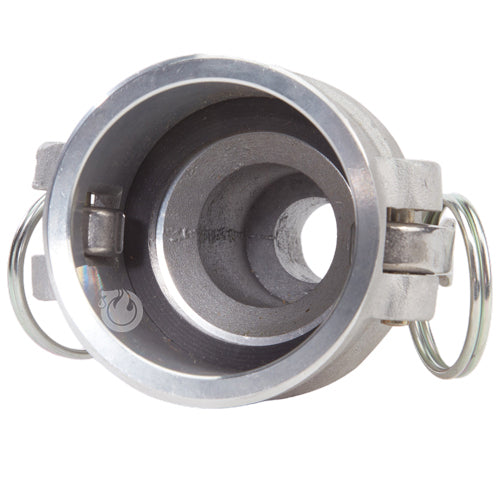

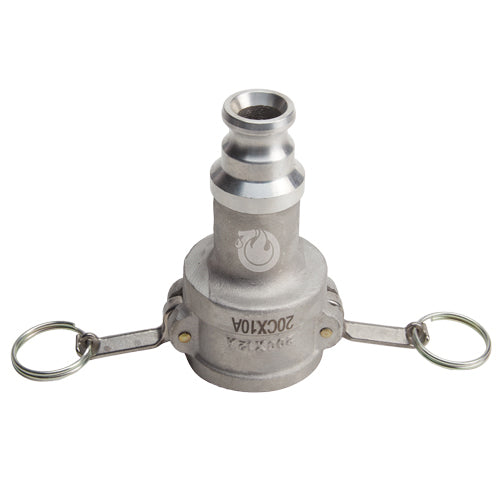

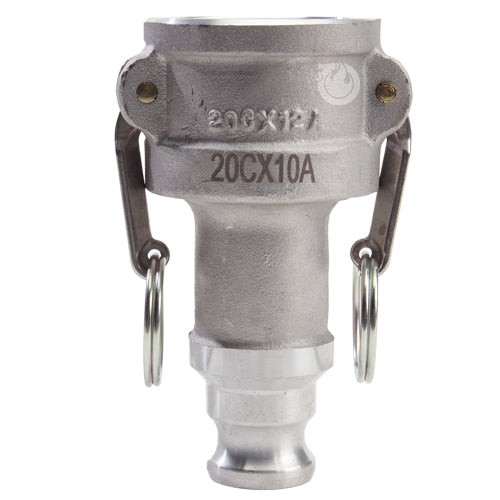

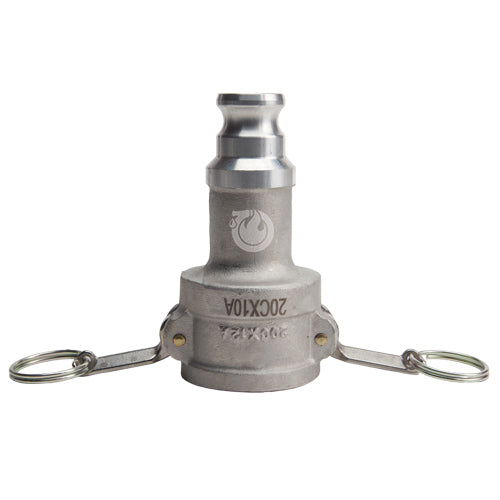

Aluminum 2" Female Camlock x 1" Male Camlock (USA)

Item Number: DA20F10M
1 7
$90.16
$0.00 $90.16
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Made In USA
  • Weight: 1.3 lb
  • Body Material: Aluminum
  • Camlock (Cam & Groove) Size: 2 inch Female
  • Camlock (Cam & Groove) Size: 1 inch Male
  • Maximum Operating Pressure: 250 PSI
  • Seal: Buna

Description

This Aluminum camlock coupler is Made in the USA, providing a quick connect and disconnect solution for various fluid transfer applications. It features a 2 inch female camlock connection that couples with a 2 inch male camlock, and a 1 inch male camlock connection that mates with a 1 inch female camlock. Constructed from aluminum with a Buna seal, it is suitable for use with water, hydraulic oil, coolants, gasoline, and petroleum products. This adapter supports a maximum operating pressure of 250 PSI and is ideal for industrial sectors such as construction, chemical, and petroleum.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Aluminum 2 inch female camlock (Cam & Groove) coupler to 1 inch male camlock (Cam & Groove) coupler.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to a 2 inch male camlock
  • The male side of this adapter will only connect to a 1 inch female camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

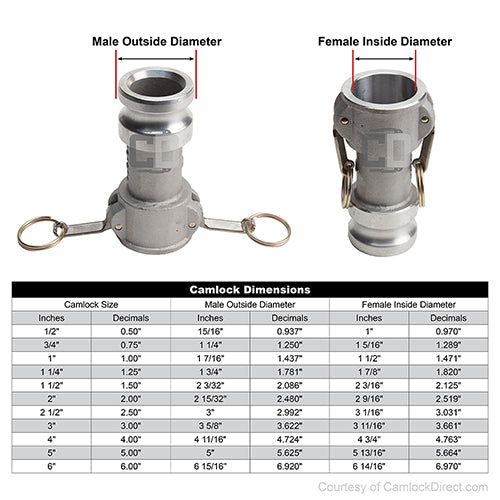

Specifications

Female Camlock Dimensions

  • Size: 2 inches (2.00)
  • Female Inside Diameter: 2 1/2 inches (2.519)

Male Camlock Dimensions

  • Size: 1 inches (1.00)
  • Male Outside Diameter: 1 7/16 inches (1.437)

FAQs

What are the specific connections for this camlock adapter?

The female side of this adapter connects only to a 2 inch male camlock, and the male side connects only to a 1 inch female camlock.

What materials is this camlock adapter made from?

This camlock adapter features an aluminum body and a Buna seal. It is Made in the USA.

What is the maximum operating pressure for this camlock?

This camlock adapter has a maximum operating pressure of 250 PSI.

What fluids are compatible with this aluminum camlock?

This aluminum camlock is compatible with water, hydraulic oil, coolants, gasoline, and petroleum products. It should not be used for compressed air or steam service.

What are the dimensions of the female and male camlock ends?

The 2 inch female camlock has an inside diameter of 2 1/2 inches (2.519), and the 1 inch male camlock has an outside diameter of 1 7/16 inches (1.437).
