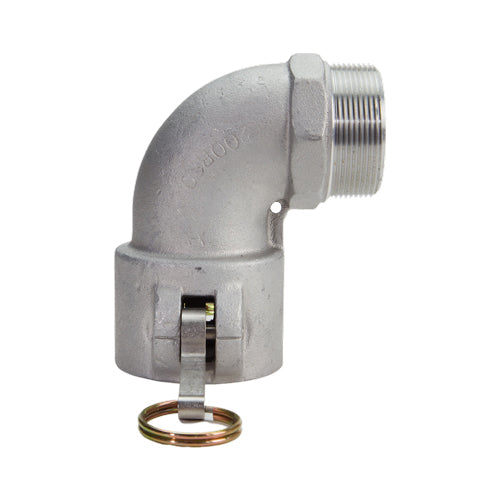

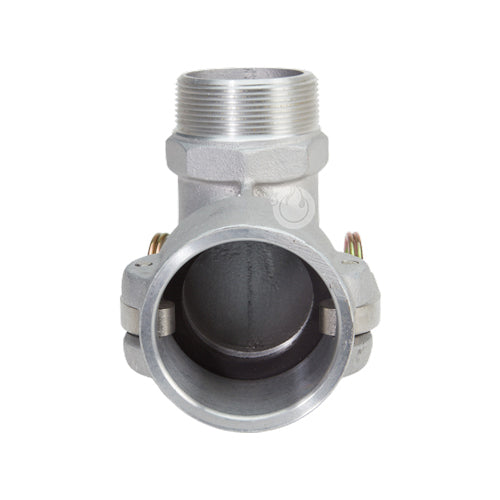

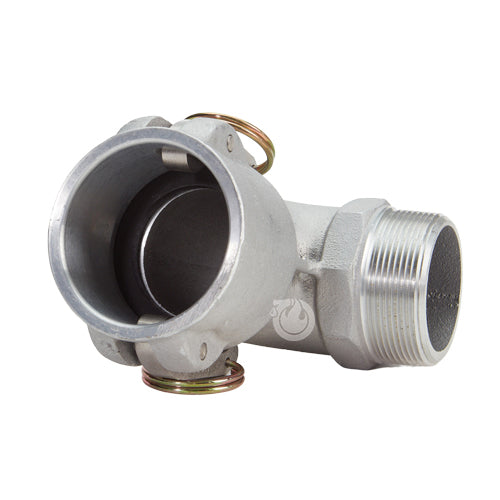

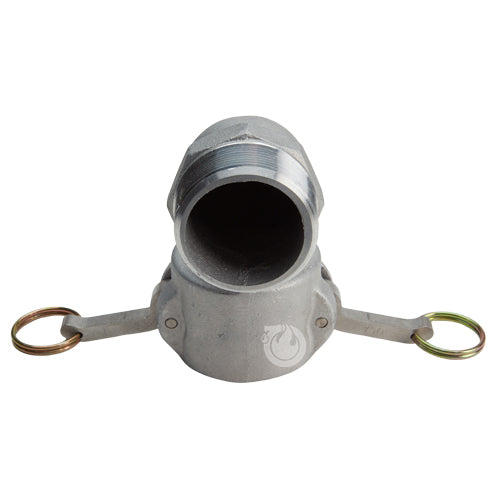

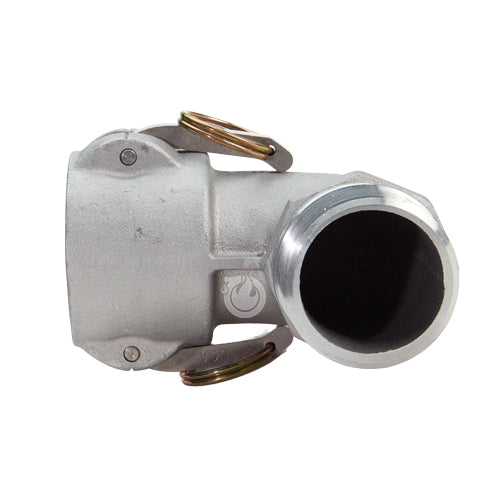

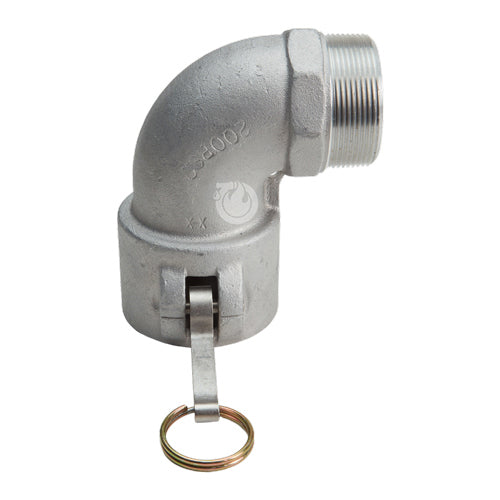

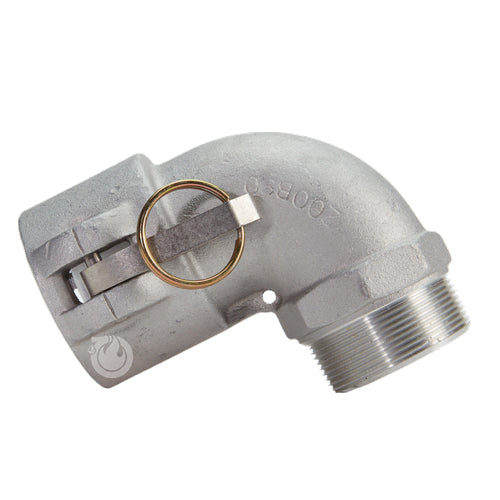

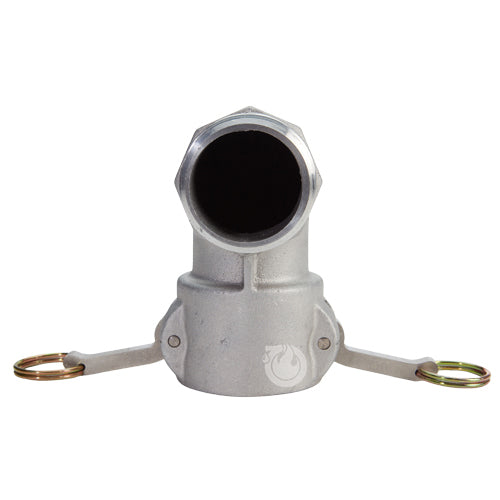

Aluminum 2" Female Camlock x 2" Male NPT 90 Degree Elbow (USA)

Item Number: DA20F20MN90
1 8
$97.02
$0.00 $97.02
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Made In USA
  • Weight: 1.5 lb
  • Body Material: Aluminum
  • Camlock (Cam & Groove) Size: 2 inch Female
  • Threaded Size: 2 inch Male NPT
  • Maximum Operating Pressure: 250 PSI
  • Seal: Buna
  • Type: "B" Quick Disconnect

Description

This Aluminum 2 inch Female Camlock x 2 inch Male NPT 90° Elbow is a Type "B" quick disconnect fitting, Made in the USA. Constructed from durable aluminum with a Buna seal, it connects a 2 inch male camlock to a 2 inch female National Pipe Tapered (NPT) or National Pipe Straight Hose (NPSH) threaded pipe. Designed for quick and secure hose connections, this elbow supports a maximum operating pressure of 250 PSI.

Help Me Connect

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.



Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Type "B" aluminum 2 inch female camlock (Cam & Groove) coupler to 2 inch male NPT threads 90° elbow.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to 2 inch male camlock
  • The male threaded side of this adapter will only connect to a 2 inch female National Pipe Tapered (NPT) or National Pipe Straight Hose (NPSH) thread, for example, PVC or metal pipe fitting

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

Female Camlock Dimensions

  • Size: 2 inches (2.00)
  • Female Inside Diameter: 2 1/2 inches (2.519)

FAQs

What are the connection types and sizes for this elbow?

This 90 degree elbow features a 2 inch female camlock (Cam & Groove) coupler and a 2 inch male NPT thread. It is designed to connect to a 2 inch male camlock and a 2 inch female NPT or NPSH thread.

What is the maximum operating pressure this fitting can handle?

This aluminum 90 degree elbow has a maximum operating pressure rating of 250 PSI.

Can this cam and groove coupling be used for compressed air or steam service?

No, under no circumstances should this cam and groove coupling be used for compressed air or steam service.

How is a connection made and disconnected with this camlock fitting?

To make a connection, slide the camlock adapter into the camlock coupling and press the cam levers down with normal hand pressure. To uncouple, simply lift the cam arms and remove the adapter.

What is the country of origin for this product?

This Aluminum 2 inch Female Camlock x 2 inch Male NPT 90 Degree Elbow is Made in the USA.
