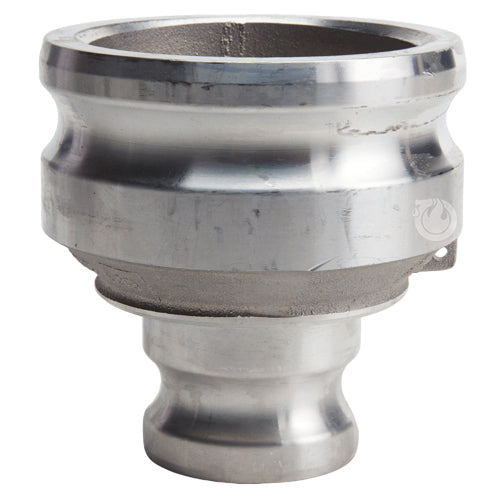

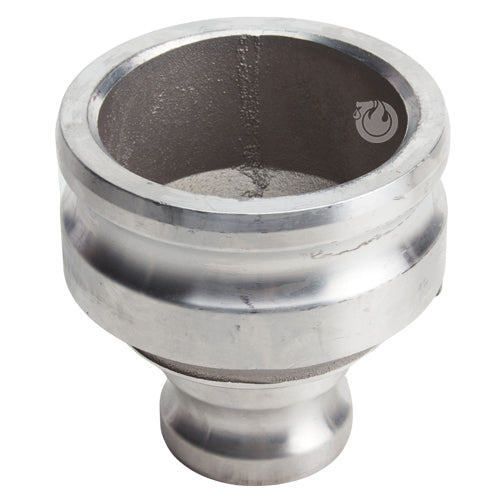

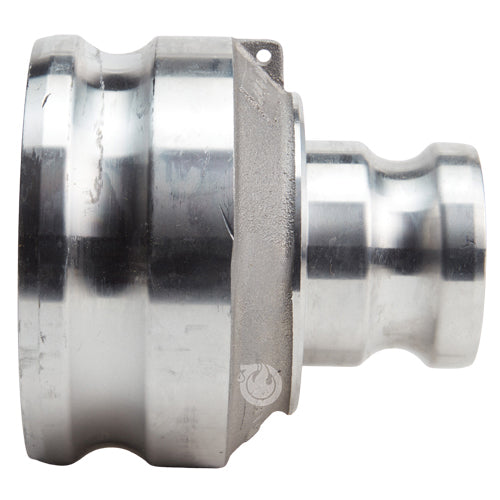

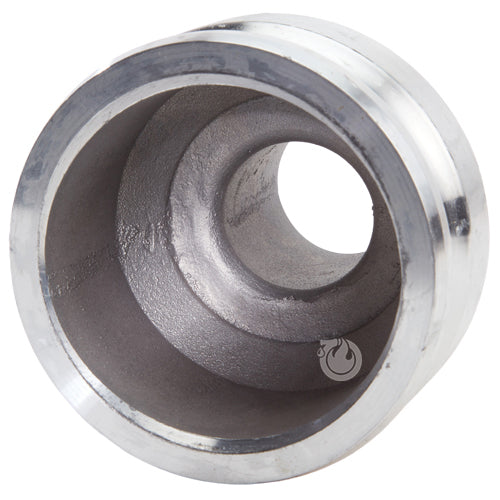

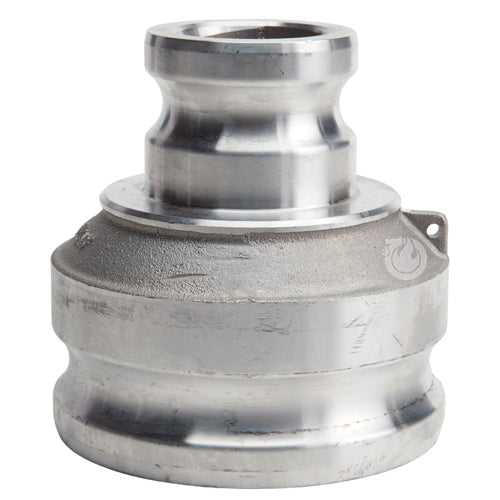

Aluminum 4" Male Camlock x 6" Male Camlock

Item Number: GA40M60M
  • Aluminum 4" Male Camlock x 6" Male Camlock
1 7
$58.82
$0.00 $58.82
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 3.32 lb
  • Body Material: Aluminum
  • Camlock (Cam & Groove) Size: 4 inch Male
  • Camlock (Cam & Groove) Size: 6 inch Male
  • Maximum Operating Pressure: 75 PSI

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Global type "AA" aluminum 4 inch male camlock (Cam & Groove) coupler to 6 inch male camlock (Cam & Groove).Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Connections
  • The male side of this adapter will only connect to 4 inch female camlock
  • The opposite male side of this adapter will only connect to a 6 inch female camlock
How it works
  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries
  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

Male Camlock Dimensions

  • Size: 4 inches (4.00)
  • Male Outside Diameter: 4 3/4 inches (4.724)

Camlock Dimensions

  • Size: 6 inches (6.00)
  • Male Outside Diameter: 6 15/16 inches (6.920)
