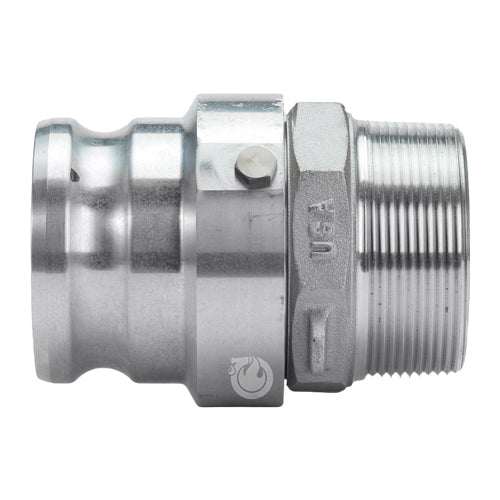

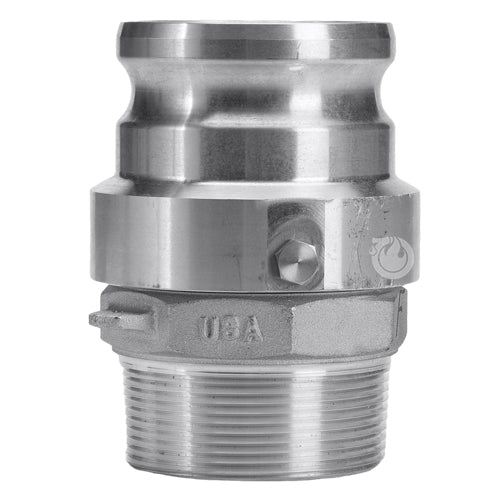

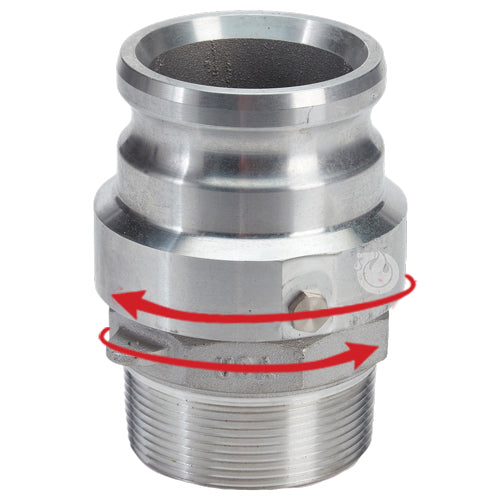

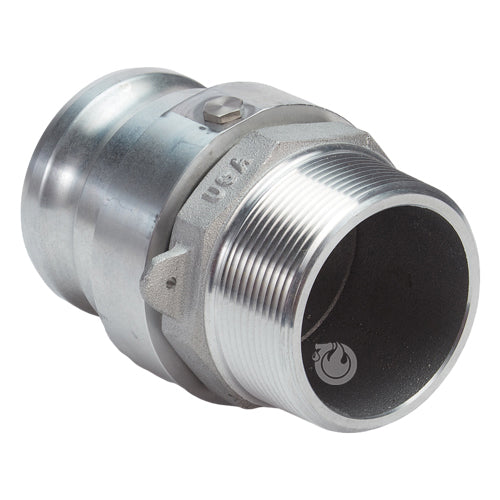

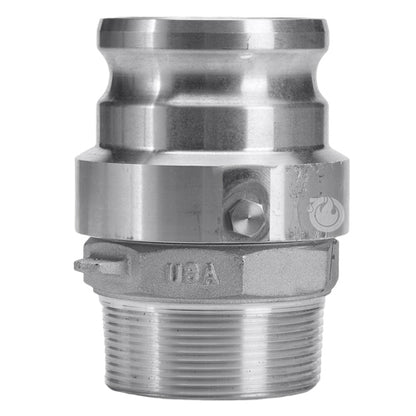

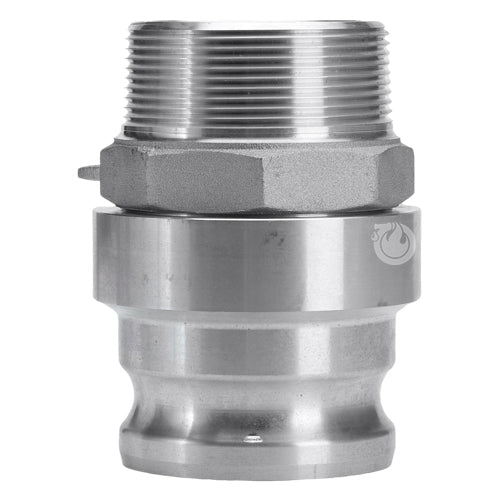

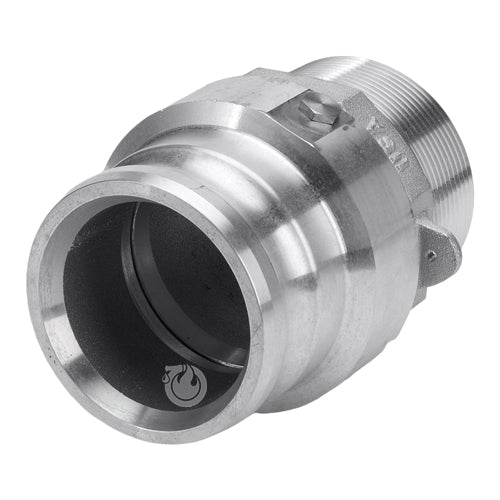

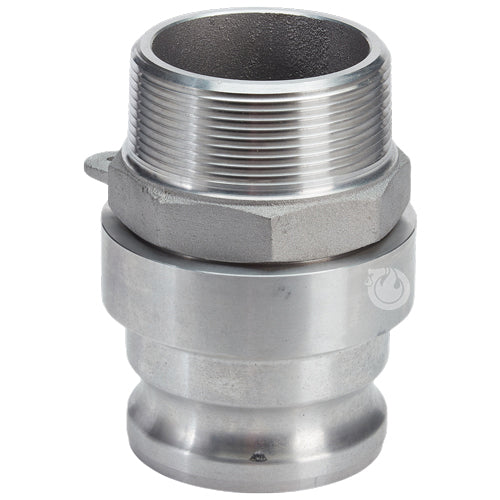

Global type "F" aluminum 4 inch male camlock (Cam & Groove) coupler to 4 inch male NPT threads with FKM seals. The Versatile 360° Swivel is manufactured in the USA and features stainless steel ball bearings for a smooth motion and durability. Fuel resistant Buna or FKM seals are standard and our U cup seals (Buna and FKM) in the ball bearing area seals better than our competitions O RINGS. And the camlock gasket is set up with the Buna or FKM. The FKM would be better for a Blower hose for the high heat. The Swivel Camlocks are NOT compatible with vacuum applications. Swivels can easily be rebuilt in the field using genuine swivel repair kits.
Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Connections

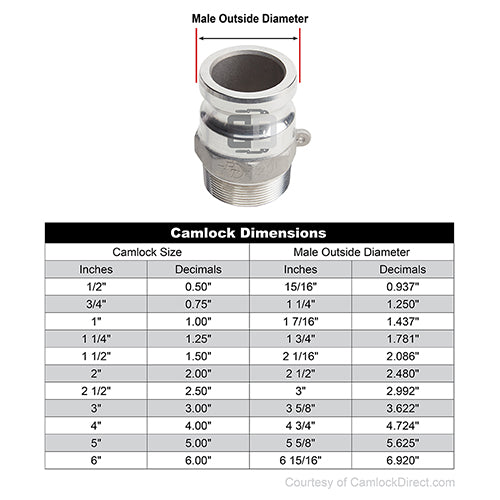

- The swivel male side of this adapter will only connect to 4 inch female camlock
- The male threaded side of this adapter will only connect to a 4 inch female National Pipe Tapered (NPT) or a National Pipe Straight Hose (NPSH) thread, for example, PVC or metal pipe fitting
How it works
- To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
- Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.
Cam and Groove Couplings Industries
- Construction
- Oil & Gas
- Transportation
- Agriculture
- Chemicals
- Petroleum
- Construction
- Material Handling
- Irrigation
- Fracking
Applications
- Water
- Hydraulic Oil
- Coolants
- Gasoline
- Petroleum Products
