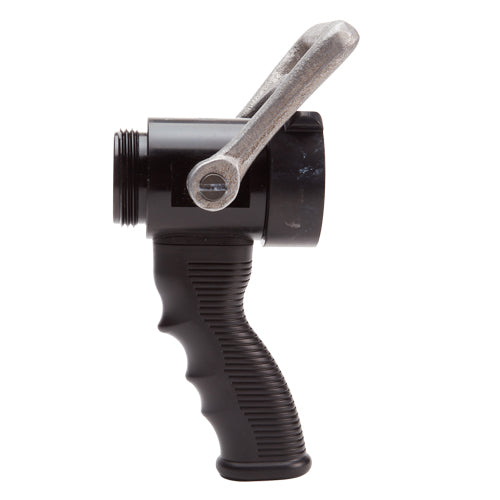

Aluminum Heavy-Duty 1 1/2" NPSH Ball Shut-Off With Pistol Grip

  • Aluminum Heavy-Duty 1 1/2" NPSH Ball Shut-Off With Pistol Grip
1 9
Price: $258.17
$0.00 $258.17
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 25, 2024


Item Number: BA15P
Weight: 2.0 lb
  • Made In USA
  • Swivel Inlet: 1 1/2 inch NPSH
  • Outlet: 1 1/2 inch NPSH (1 7/8 inch O.D. and 11.5 TPI)
  • Maximum Operating Pressure: 600 PSI
  • Body: Anodized Aluminum
  • Grip: Polymer
  • Bale: Cast Aluminum
  • Low Friction Polymer Ball and Seating
  • Removable Pistol Grip
  • Meets Forest Service Specifications (FSS)
View full details

Description

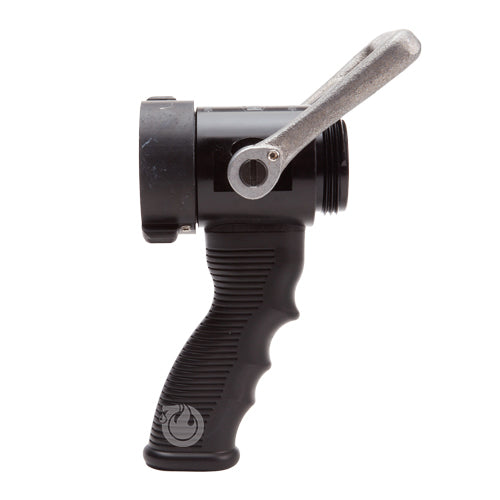

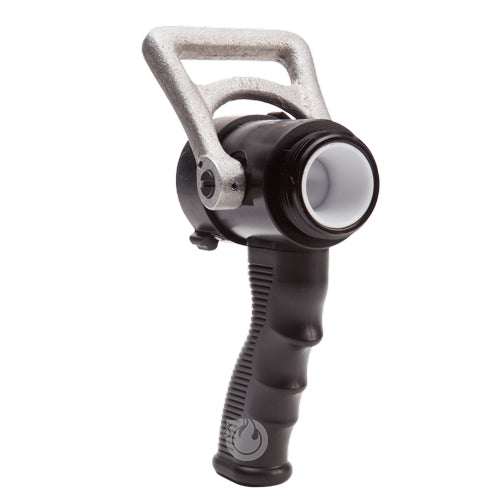

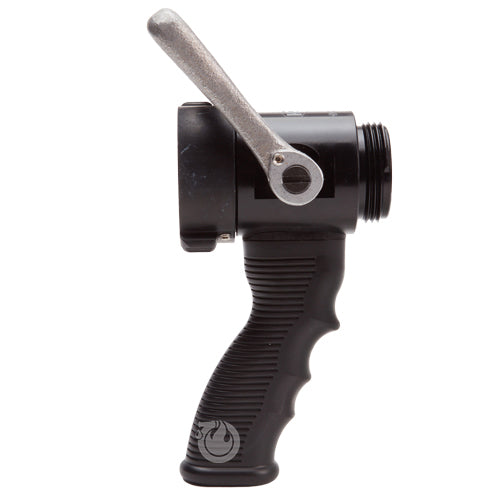

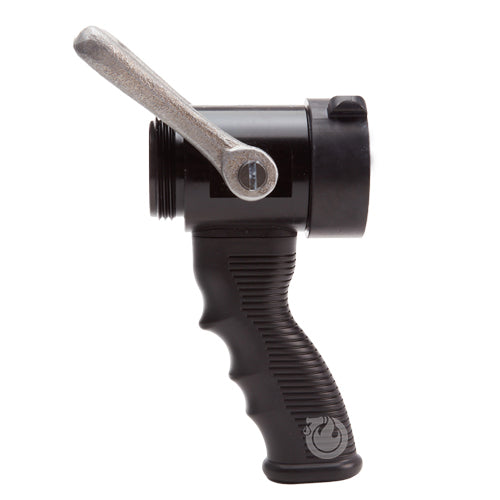

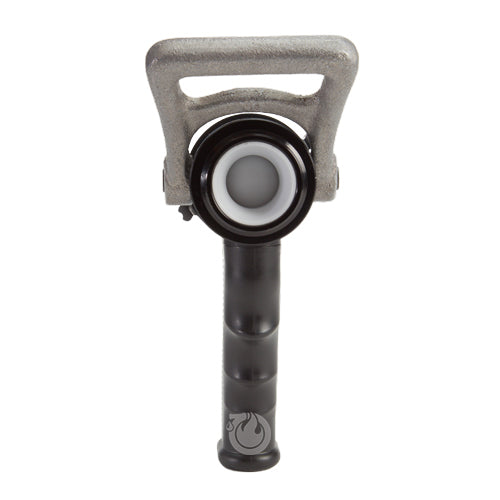

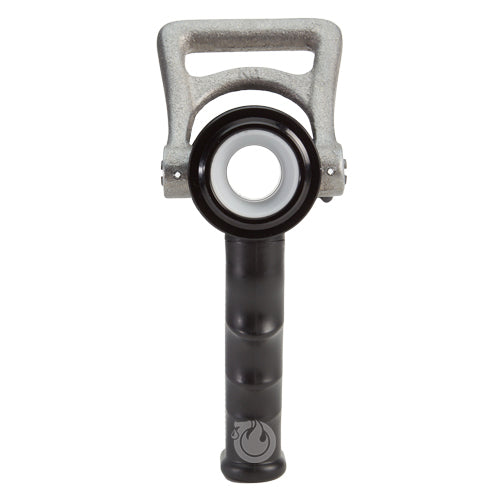

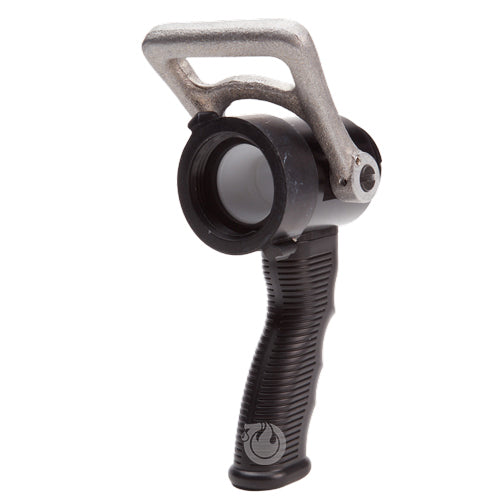

High pressure anodized aluminum 1 1/2 inch NPSH pistol grip ball shut-off valve is lightweight but built to tough U.S. Forestry Service Standards (FSS). Features a cast aluminum bale and durable polymer pistol grip that is easily removed. Pistol grip allows for stable and comfortable use. Valve has polymer ball and seating for reduced friction when opening and closing valve under pressure.

May be used with any 1 1/2 inch NPSH threaded nozzle.

To remove the grip an Allen Wrench is needed.



Specifications

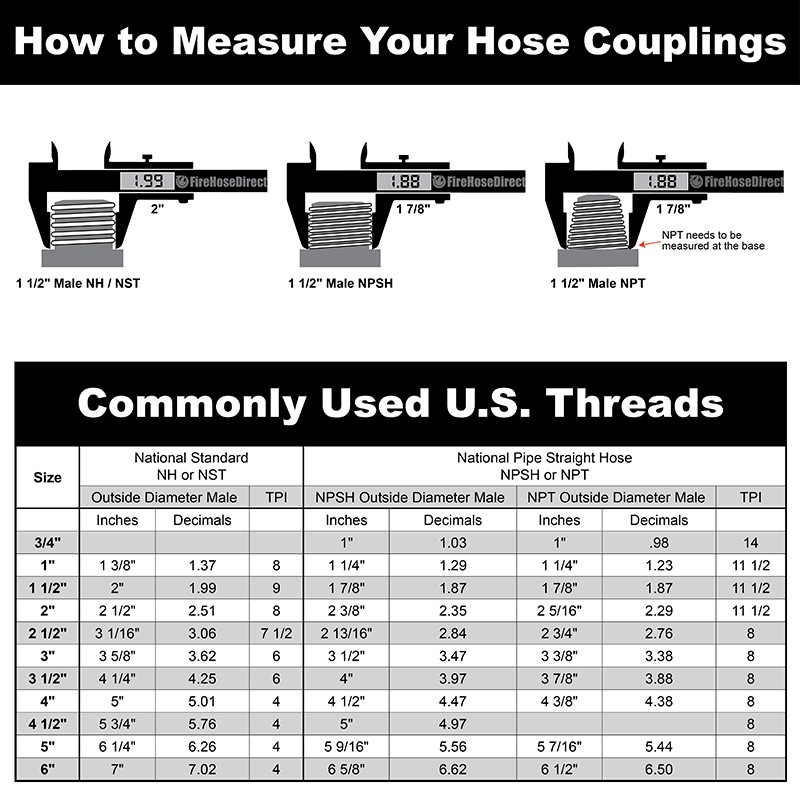

1 1/2" Hose
  • Inside diameter of a male hose coupling: 1 1/2 inches
  • Outside diameter of a male NH / NST coupling: 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT coupling: 1 7/8 inches (1.87) - 11.5 Threads per inch

Help Me Connect

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
