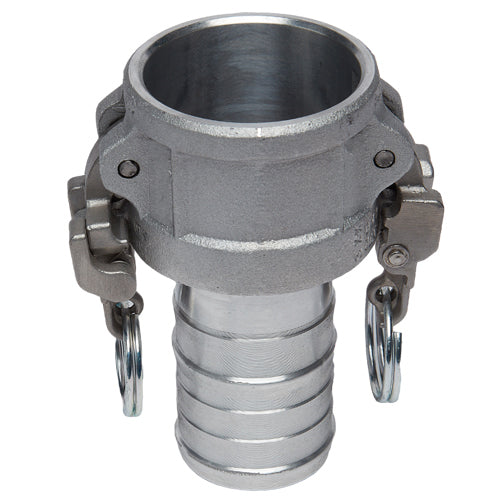

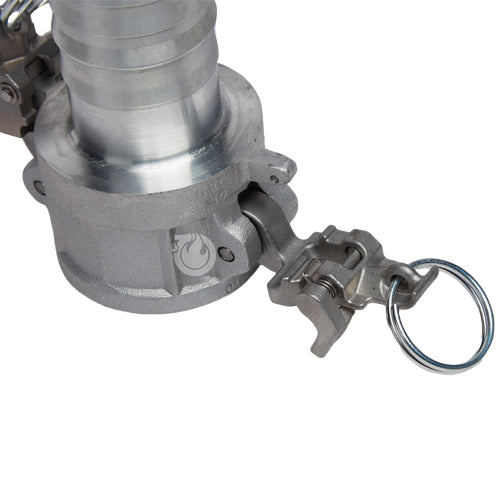

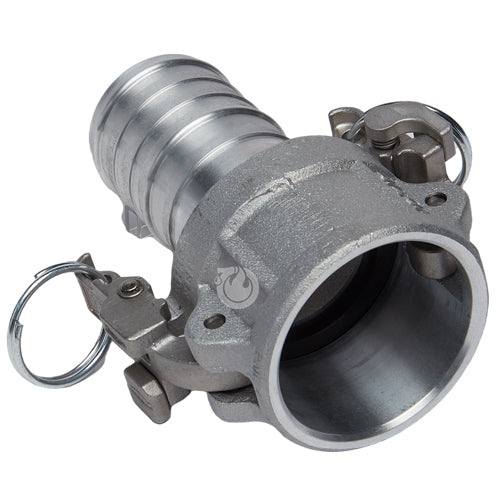

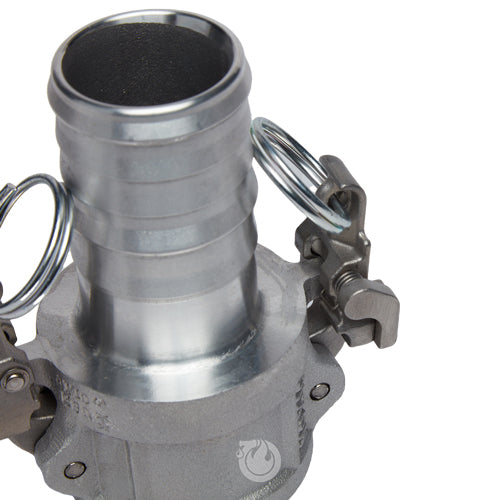

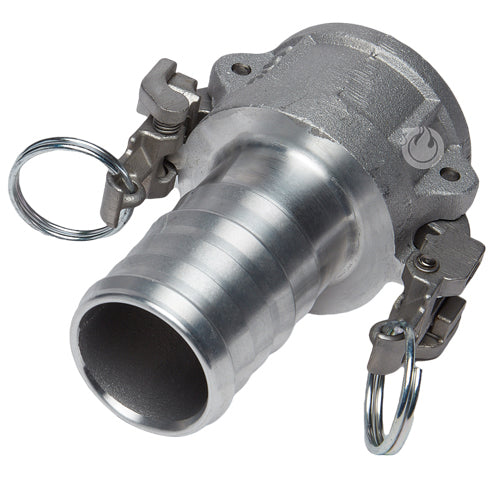

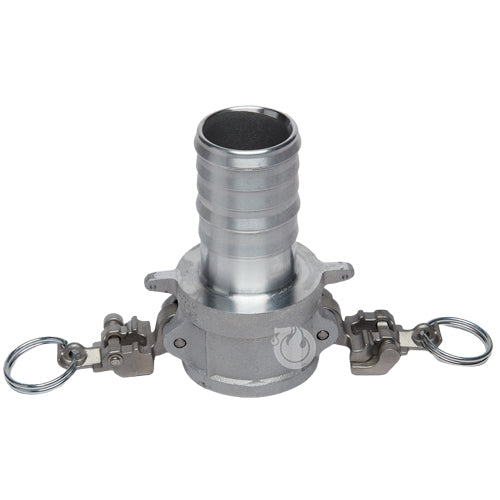

Aluminum Locking 1 1/2" Female Camlock Fitting x 1 1/2" Hose Shank (USA

  • Aluminum Locking 1 1/2" Female Camlock Fitting x 1 1/2" Hose Shank (USA
1 7
Price: $67.89
$0.00 $67.89
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Nov 25, 2024


Item Number: DAL15F15C
Weight: 0.4 lb
  • Made In USA
  • Body Material: Aluminum
  • Camlock (Cam & Groove) Size: 1 1/2 inch Female
  • Shank Size: 1 1/2 inch
  • Maximum Operating Pressure: 250 PSI
  • Seal: Nitrile Rubber Gasket
  • Type: "C" Quick Disconnect
View full details

Description

Global type "C" aluminum 1 1/2 inch female camlock (Cam & Groove) coupler to 1 1/2 inch hose shank.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to 1 1/2 inch male camlock

Features
  • Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm.
  • Rotating action helps keep the locking device free of debris.
  • Designed to protect critical parts from impact and to withstand rugged use.

How It Works
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged.
  • Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic.

Note
If the rotating lever is not flush with the handle, it is not properly engaged.

Safety Notes
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70° with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult the factory.

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Wine
  • Food
  • Drugs
  • Reverse osmosis systems
  • Water treatment
  • Water transport
  • Irrigation
  • Waste / vacuum trucks
  • Fuel delivery
  • Grain movement
  • Hydraulic oil, coolants, gasoline and petroleum products
  • Bio-fuel
  • Salt water
  • Waste water
  • Chemical movement & storage
  • Sand
  • Grout
  • Cement
  • Varnish
  • Flour
  • Pellets

Specifications

Female Camlock Dimensions

  • Size: 1 1/2 inches (1.50)
  • Female Inside Diameter: 2 1/8 inches (2.125)

Download Spec Sheet

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
