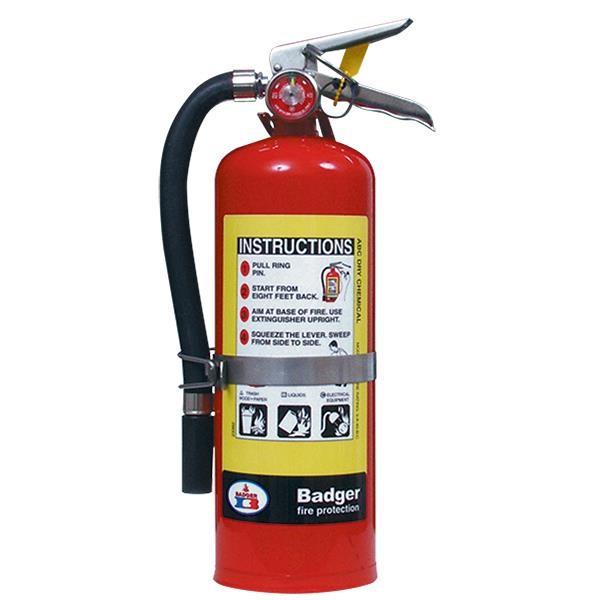

Badger Extra 5 lb ABC Fire Extinguisher with Vehicle Bracket

Item Number: 23463B
1 1
$154.19
$154.19
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping
  • Weight: 10.5 lb
  • Nominal Capacity: 5 lb
  • UL Fire Rating: 3-A:40-B:C
  • Suitable for Class A, B, and C fires
  • Agent: 90% Monoammonium Phosphate (MAP)
  • Operating Pressure: 195 PSI
  • Discharge Time: 14 sec
  • Includes MB-5 Vehicle Bracket
  • Six year limited warranty

Description

The Badger Extra 5 lb ABC Dry Chemical Fire Extinguisher is designed for use across Class A, B, and C fires in diverse settings including commercial, industrial, and domestic applications. It features a 3-A:40-B:C UL fire rating and utilizes a 90% monoammonium phosphate (MAP) agent. Key components include chrome-plated brass valves, stainless steel handles, and a robust steel cylinder, ensuring durability and reliability. With a 195 PSI operating pressure and 14 second discharge time, it provides effective fire suppression. This model comes with an MB-5 vehicle bracket for convenient installation and is backed by a six year limited warranty.

Help Me Connect

Fire Class Compatibility

  • Class A fires involve ordinary combustible materials such as wood, cloth, paper, rubber, and many plastics.
  • Class B fires involve flammable liquids, combustible liquids, petroleum greases, tars, oils, oil-based paints, solvents, lacquers, alcohols, and flammable gases.
  • Class C fires involve energized electrical equipment where the non-conductive properties of the extinguishing agent are important.

This extinguisher is supplied with an MB-5 vehicle bracket for secure mounting in vehicles or other appropriate locations.

View full details

Additional Details

The Badger Extra 5 lb ABC Dry Chemical Fire Extinguisher is a versatile and economical choice for tackling common fire risks in commercial, industrial, and domestic environments. It is suitable for use on Class A, B, and C fires, utilizing a multipurpose agent containing 90% monoammonium phosphate (MAP).

Key Features

  • Features ergonomic stainless steel handles and levers for enhanced ease of use and durability.
  • A large loop stainless steel pull-pin with tether ensures easy removal, even when wearing gloves.
  • Equipped with chrome-plated brass valves, designed to withstand various industrial chemicals and environmental conditions.
  • Constructed with a strong steel cylinder and heavy-duty internal siphon tube for extended service life.
  • Includes plated brass hose couplings with a hex connection fitting for proper tightening and removal using standard tools.
  • A rugged heavy-duty agent discharge hose assembly provides reliable performance.
  • Backed by a six-year limited warranty.

Specifications

  • Nominal Capacity: 5 lb
  • UL Fire Rating: 3-A:40-B:C
  • Fire Class Suitability: A, B, C
  • Agent Type: Multipurpose ABC Dry Chemical (90% MAP)
  • Cylinder Material: Steel
  • Valve Material: Plated Brass
  • Handle/Lever Material: Stainless Steel
  • Recharge Expellant: Nitrogen
  • Operating Pressure: 195 PSI at 70°F
  • Temperature Range: -40°F to 120°F
  • Nominal Agent Flow Rate: 0.39 lb/sec
  • Nominal Discharge Time: 14 sec
  • Discharge Range: 12 to 18 feet
  • Height: 15.25 inches
  • Width: 7.5 inches
  • Depth: 4.25 inches
  • Shipping Weight: 10.4 lb
  • USCG Approval: Type B:C Size I
  • Hydrostatic Test Interval: 12 year periodic
  • Warranty: 6 year limited
  • Bracket: MB-5 (Included)

FAQs

What types of fires is the Badger Extra 5 lb fire extinguisher designed for?

This fire extinguisher is suitable for Class A, Class B, and Class C fires. Class A involves ordinary combustibles, Class B involves flammable liquids, and Class C involves energized electrical equipment.

What is the UL fire rating for this 5 lb extinguisher?

The UL fire rating for this model is 3-A:40-B:C, indicating its effectiveness against the three specified fire classes.

What type of extinguishing agent does this fire extinguisher use?

It uses a multipurpose ABC dry chemical agent, specifically 90% monoammonium phosphate (MAP), which is effective across Class A, B, and C fires.

Does this fire extinguisher come with a bracket for mounting?

Yes, this fire extinguisher includes an MB-5 vehicle bracket, allowing for secure mounting in various locations.

What is the warranty period for the Badger Extra 5 lb fire extinguisher?

This fire extinguisher is backed by a six year limited warranty, providing assurance of its quality and performance.

What is the discharge range and time for this unit?

The fire extinguisher has a nominal discharge range of 12 to 18 feet and a nominal discharge time of 14 seconds.

What is the operating pressure and hydrostatic test interval for this extinguisher?

The operating pressure is 195 PSI at 70°F, and it has a 12 year periodic hydrostatic test interval.
