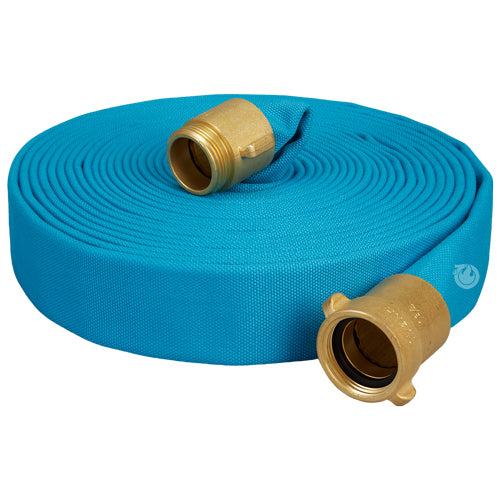

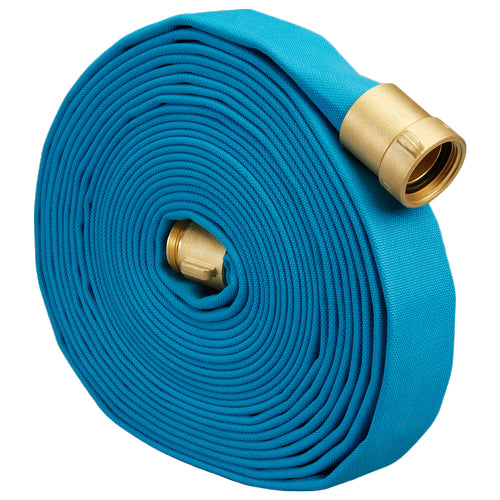

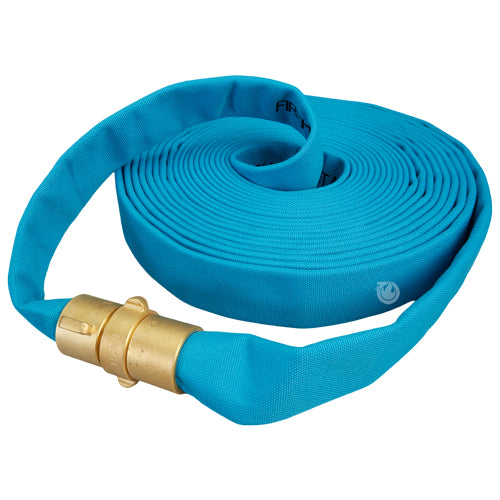

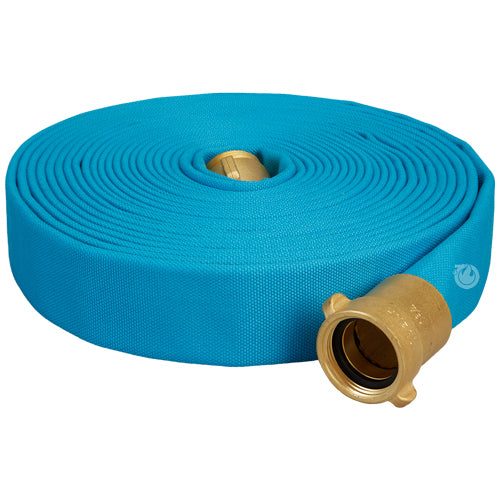

Blue 2 1/2" x 50' Potable Water Hose (Brass NH Couplings) - Imported

Item Number: G25P650BBL
1 5
$372.77
$372.77
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping
Free Shipping
  • Weight: 30.0 lb
  • Hose Size - 2 1/2 inches (Inside Diameter)
  • Hose Length - 50 feet (Approximately)
  • Male Coupling - Brass 2 1/2 inch NH / NST
  • Swivel Female Coupling - Brass 2 1/2 inch NH / NST
  • The Female Coupling Will Only Connect to a Male 2 1/2 inch NH / NST

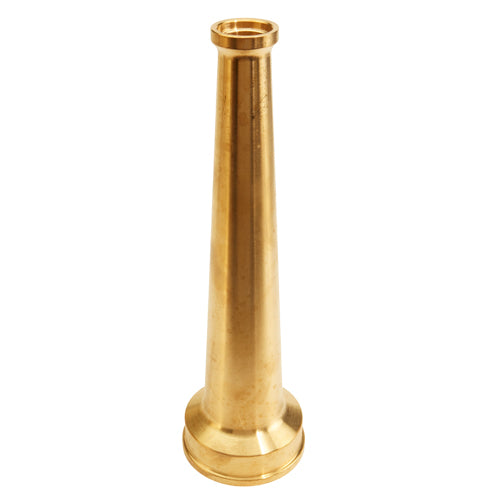

  • Compatible Nozzle - 2 1/2 inch NH / NST only
  • Hose Type - Polyester Double Jacket (Mildew Resistant)
  • Color - Blue
  • Liner - Polyurethane Liner NSF-61 Compliance
  • Service Pressure - 300 PSI
  • Proof Test Pressure - 600 PSI
  • Burst Test Pressure - 900 PSI

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.

View full details

Additional Details

Our double jacket polyurethane lined fire hose for potable water. Meets or exceeds Mil-H-24606B and features NSF-61 approved polyurethane hose lining for potable water. Double jacket refers to the second layer polyester covering woven from staple polyester yarn added for increased abrasion resistance.

How To Purchase Fire Hose

  • Always ask where the hose is manufactured
  • Adding color impregnation improves durability compared to untreated white hose
  • 50 foot lengths are easier to handle and offer more layout flexibility vs. 100 foot lengths
  • The most common hose, thread and couplings in use by fire departments today is double jacket hose with aluminum NH / NST
  • Double jacket hose with any color is the most durable hose available

Applications

  • Drinking Water

Test Ratings (Water Only With Expansion Ring Couplings)

  • Service Pressure (A 3-minute hydrostatic test conducted by users on in-service hose to determine suitability for continued service)
  • Proof Test Pressure (A pressure equal to a least two times the service test pressure)
  • PSI Burst Test Pressure



Specifications

2 1/2" Hose Male Couplings

  • Inside diameter of a male coupling: 2 1/2 inches
  • Outside diameter of a male NH / NST coupling: 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT coupling: 2 13/16 inches (2.84) - 8 Threads per inch
