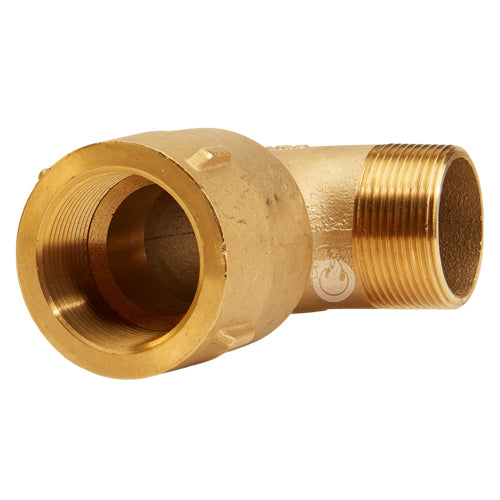

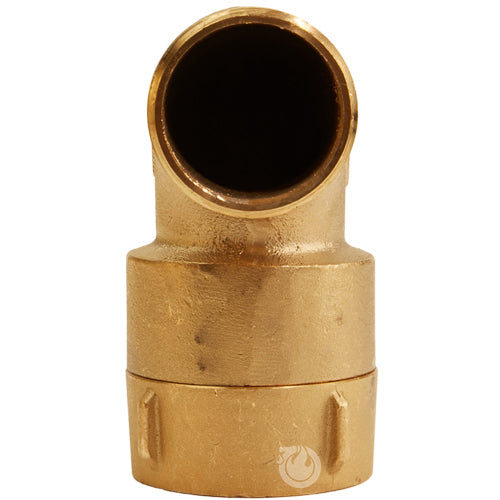

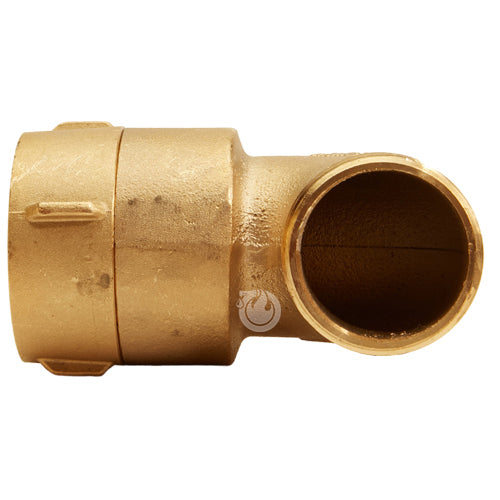

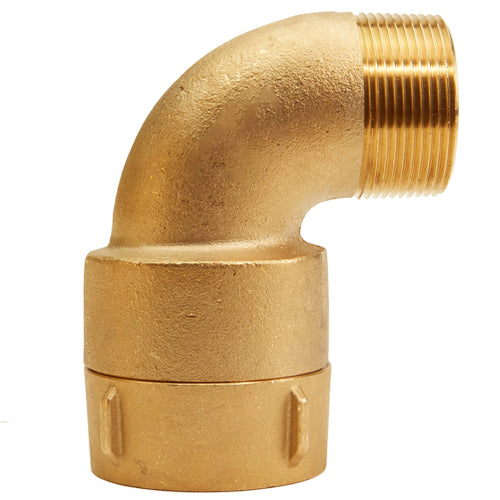

Brass 1 1/2" NPT x 1 1/2" NPT 90 Degree Elbow

Item Number: B90E15N15N
1 5
$181.41
$0.00 $181.41
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping
Free Shipping
  • Weight: 2.7 lb
  • Female Side: 1 1/2 inch NPT
  • The Female will only Connect to a Male 1 1/2 inch NPT
  • Male Side: 1 1/2 inch NPT
  • The Male will only Connect to a Female 1 1/2 inch NPT
  • Material: Brass
  • Elbow: 90°

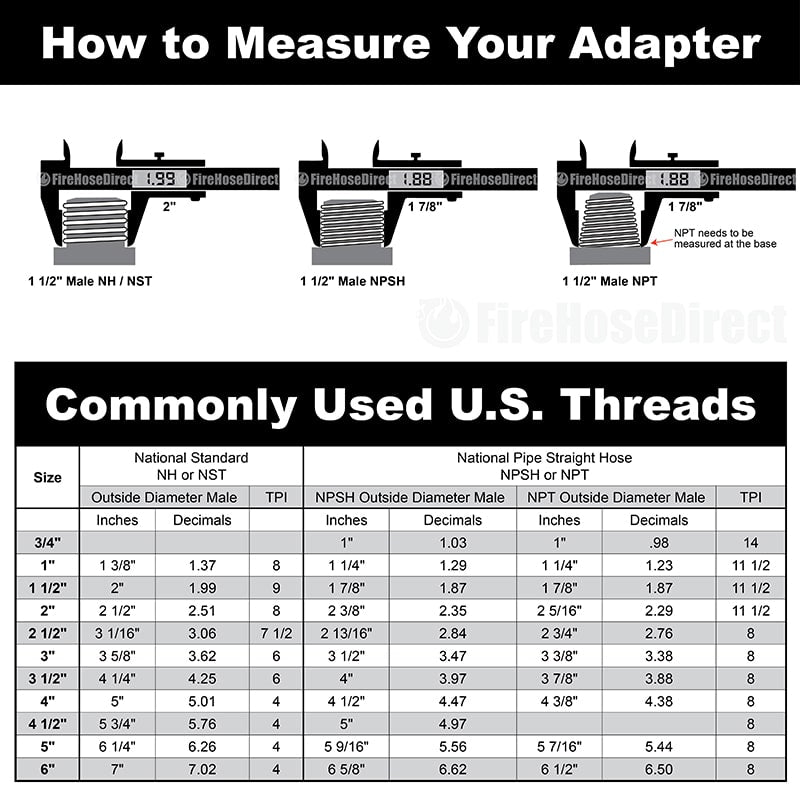

Help Me Connect

Garden Hose Thread Male Adapter

  • Outside diameter of a male GHT adapter - 1.06 inches (11.5 Threads per inch)

1" Male Adapter

  • Inside diameter of a male adapter - 1 inch
  • Outside diameter of a male NH / NST adapter - 1.375 inches (8 Threads per inch)
  • Outside diameter a male NPSH or NPT adapter - 1.295 inches (11.5 Threads per inch)

1 1/2" Male Adapter

  • Inside diameter of a male adapter - 1 1/2" inches
  • Outside diameter of a male NH / NST adapter - 1.99 inches (9 Threads per inch)
  • Outside diameter a male NPSH or NPT adapter - 1.87 inches (11.5 Threads per inch)

1 3/4" Hose Couplings

  • 1 3/4 inch hoses come with 1 1/2 inch couplings

2" Male Adapter

  • Inside diameter of a male adapter - 2 inch
  • Outside diameter of a male NH / NST adapter - 2.51 inches (8 Threads per inch)
  • Outside diameter a male NPSH or NPT adapter - 2.35 inches (11.5 Threads per inch)

Note - 2 inch NH or NST is very rare. If the outside diameter of male adapter is approximately two inches, you need 1 1/2 inch NH or NST.

2 1/2" Male Adapter

  • Inside diameter of a male adapter - 2 1/2" inches
  • Outside diameter of a male NH / NST adapter - 3.06 inches (7.5 Threads per inch)
  • Outside diameter a male NPSH or NPT adapter - 2.84 inches (8 Threads per inch)

3" Hose Couplings

  • Most 3 inch hoses come with 2 1/2 inch couplings

4" Male Adapter

  • Inside diameter of a male adapter - 4" inches
  • Outside diameter of a male NH / NST adapter - 5.01 inches (4 Threads per inch)
  • Outside diameter a male NPSH or NPT adapter - 4.47 inches (8 Threads per inch)

4 1/2" Male Adapter

  • Inside diameter of a male adapter - 4.5" inches
  • Outside diameter of a male NH / NST adapter - 5.76 inches (4 Threads per inch)
  • Outside diameter a male NPSH or NPT adapter - 4.97 inches (8 Threads per inch)

5" Male Adapter

  • Inside diameter of a male adapter - 5" inches
  • Outside diameter of a male NH / NST adapter - 6.26 inches (4 Threads per inch)

6" Male Adapter

  • Inside diameter of a male adapter - 6" inches
  • Outside diameter of a male NH / NST adapter - 7.025 inches (4 Threads per inch)
View full details

Additional Details

Elbows are used on pump discharge valves or suction inlets to minimize hose kinking. Should also be used when flushing hydrants or other water systems to protect the inner liner of the discharge hose from water pressure or debris damage.

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Specifications

1 1/2" Male Adapter

  • Inside diameter of a male adapter: 1 1/2 inches
  • Outside diameter of a male NH / NST adapter: 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 7/8 inches (1.87) - 11.5 Threads per inch
