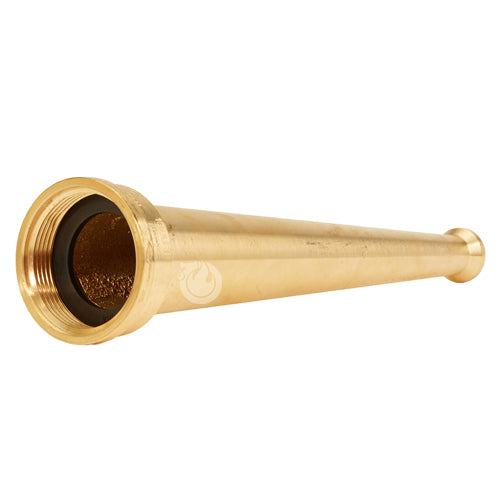

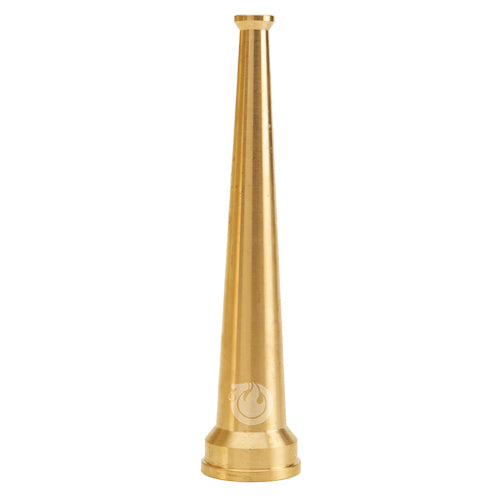

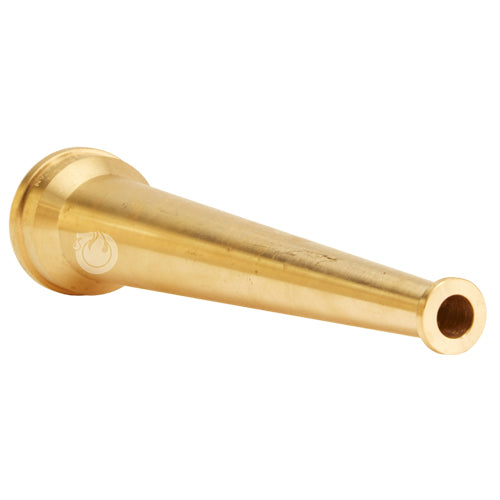

Brass 1 1/2" Smooth Bore Fire Nozzle (NPSH)

Skip to product information
1 of 5
Regular price Price: $54.04
Regular price $0.00 Sale price $54.04
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Oct 10, 2024


Item Number: BSB15P
Weight: 1.0 lb
  • Material - Brass
  • Size - 1 1/2 inches
  • Threads - NPSH
  • This nozzle will only connect to a 1 1/2 inch NPSH hose
  • Length - 10 inches
  • Orifice - 1/2 inch
  • Maximum operating pressure - 100 PSI
  • Approximate Gallons Per Minute (GPM) - 50
  • Approximate Distance - 60 feet
  • Positions - Straight Stream Only (no shut-off)
View full details

Collapsible content

Description

Brass 1 1/2 inch NPSH threaded smooth bore nozzle with satin finish is a straight stream only with no shut-off.

NPSH and NPT is common in industrial applications. NH/NST is common in the fire service.

How we conducted our nozzle testing.

We used a Honda self-priming water pump with a two inch inlet and a two inch outlet that produces 135 gallons per minute (GPM). The nozzle was attached to a fifty foot 1 1/2 inch fire hose. The pump pressure was approximately 60 psi. Gallons per minute was calculated by measuring the number of gallons a nozzle could fill a large container within one minute. The result is the GPM.

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

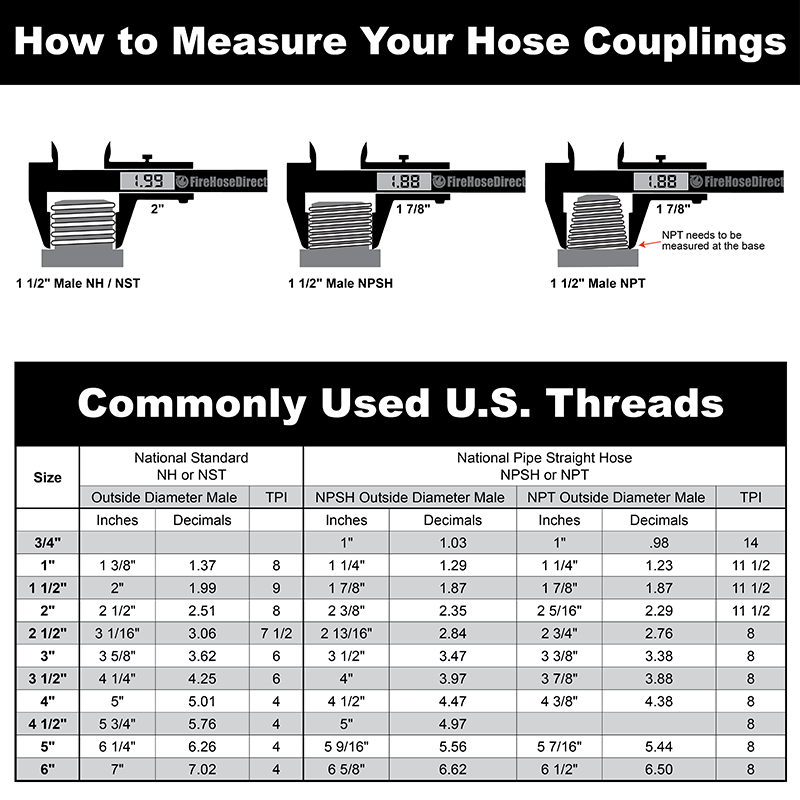

Specifications

1 1/2" Hose

  • Inside diameter of a male hose - 1 1/2 inches
  • Outside diameter of a male NH / NST hose - 2 inches (1.99)
  • Outside diameter a male NPSH or NPT hose - 1 7/8 inches (1.87)

1 3/4" Hose Couplings

  • 1 3/4 inch hoses come with 1 1/2 inch couplings
