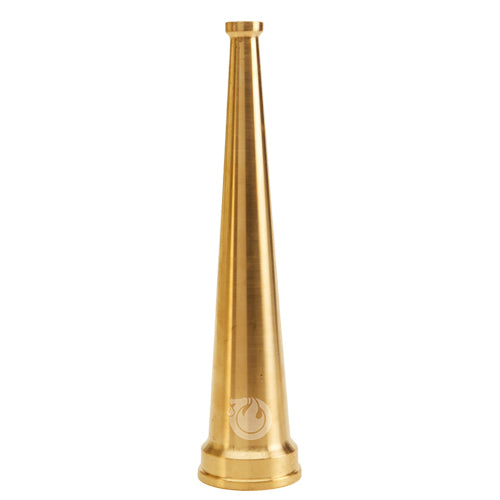

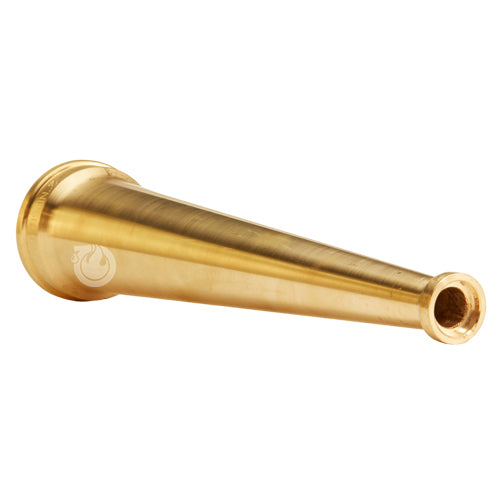

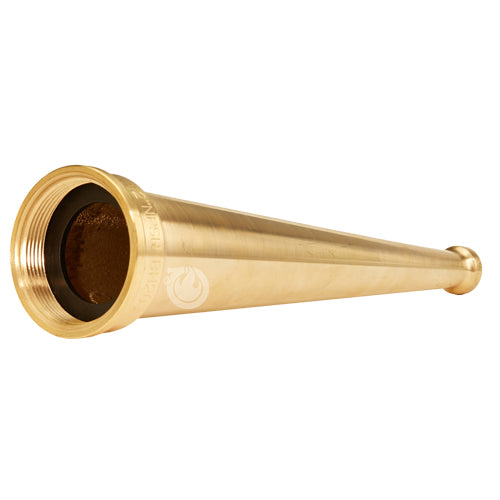

Brass 2" Smooth Bore Fire Nozzle (NPSH)

  • Brass 2" Smooth Bore Fire Nozzle (NPSH)
1 4
Price: $89.29
$0.00 $89.29
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Sep 7, 2024


Item Number: BSB2P
Weight: 1.6 lb
  • Material: Brass
  • Size: 2 inches
  • Threads: NPSH
  • This nozzle will only connect to a 2 inch NPSH hose or NPT pipe
  • Length: 12 inches
  • Orifice: 1/2 inch
  • Maximum Operating Pressure: 100 PSI
  • Approximate Gallons Per Minute: 60 GPM
  • Approximate Distance: 60 feet
  • Positions: Straight Stream Only (no shut-off)
View full details

Description

Brass 2 inch NPSH threaded smooth bore nozzle with satin finish is a straight stream only with no shut-off.

NPSH and NPT is common in industrial applications. NH/NST is common in the fire service.

How we conducted our nozzle testing

We used a Honda self-priming water pump with a two inch inlet and a two inch outlet that produces 135 gallons per minute (GPM). The nozzle was attached to a fifty foot 2 inch fire hose. The pump pressure was approximately 60 PSI. Gallons per minute was calculated by measuring the number of gallons a nozzle could fill a large container within one minute. The result is the GPM.

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

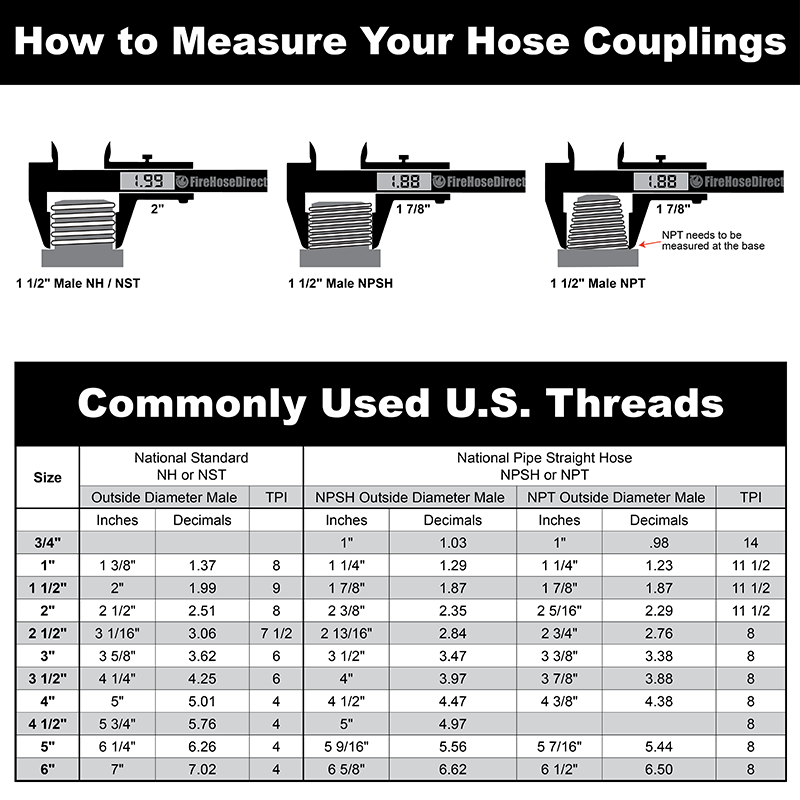

Specifications

2" Male Hose

  • Inside diameter of a male hose: 2 inches
  • Outside diameter of a male NH / NST adapter: 2 1/2 inches (2.51) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 2 3/8 inches (2.35) - 11.5 Threads per inch

Note - 2 inch NH or NST is very rare. If the outside diameter of male adapter is approximately two inches, you need 1 1/2 inch NH or NST.

Help Me Connect

  • The female side of a garden hose will only connect to a male garden hose connection
  • The male side of a garden hose will only connect to a female garden hose connection

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
