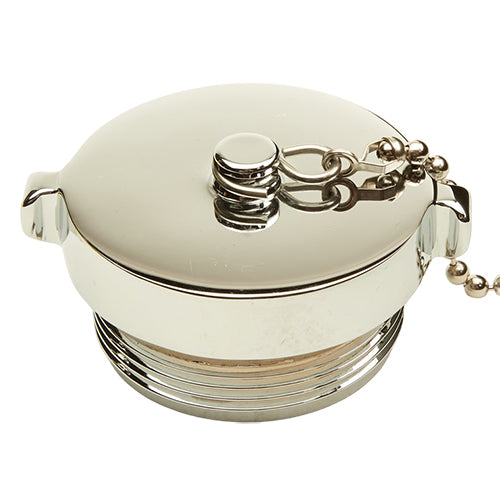

Brass Chrome Plated 2 1/2" NH Plug

Skip to product information
1 of 5
Regular price Price: $169.06
Regular price $0.00 Sale price $169.06
Sale Sold out

Stock Level: 4

Product Status: Limited Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Oct 14, 2024


Item Number: BCPR25
Weight: 2.3 lb
  • Male Side - 2 1/2 inch NH / NST
  • The Male Will Only Connect to a Female 2 1/2 inch NH / NST
  • Outside Diameter of Male Threads - 3 1/16 inches
  • Material - Chrome Plated Brass
  • Chain Length - 9 inches
View full details

Collapsible content

Description

Aluminum chrome plated 2 1/2 inch NH / NST plug with chain.

This is the most common replacement plug size in the US. If your FDC or female swivel inside diameter is approx. 3 inches across, you probably need this plug. Please call or check with your local fire department if you have any questions.

Specifications

Garden Hose Thread Male Adapter

  • Outside diameter of a male GHT adapter - 1 1/16 inches (1.06) - 11.5 Threads per inch
  • Garden hose thread is not the same as 3/4 inch pipe thread (NPT)

1" Male Adapter

  • Inside diameter of a male adapter - 1 inch
  • Outside diameter of a male NH / NST adapter - 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 1 5/16 inches (1.295) - 11.5 Threads per inch

1 1/2" Male Adapter

  • Inside diameter of a male adapter - 1 1/2 inches
  • Outside diameter of a male NH / NST adapter - 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 1 7/8 inches (1.87) - 11.5 Threads per inch

1 3/4" Hose Couplings

  • 1 3/4 inch hoses come with 1 1/2 inch couplings

2" Male Adapter

  • Inside diameter of a male adapter - 2 inches
  • Outside diameter of a male NH / NST adapter - 2 1/2 inches (2.51) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 2 3/8 inches (2.35) - 11.5 Threads per inch

Note - 2 inch NH or NST is very rare. If the outside diameter of male adapter is approximately two inches, you need 1 1/2 inch NH or NST.

2 1/2" Male Adapter

  • Inside diameter of a male adapter - 2 1/2 inches
  • Outside diameter of a male NH / NST adapter - 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 2 13/16 inches (2.84) - 8 Threads per inch

3" Hose Couplings

  • Most 3 inch hoses come with 2 1/2 inch couplings

4" Male Adapter

  • Inside diameter of a male adapter - 4 inches
  • Outside diameter of a male NH / NST adapter - 5 inches (5.01) - 4 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 4 1/2 inches (4.47) - 8 Threads per inch

5" Male Adapter

  • Inside diameter of a male adapter - 5 inches
  • Outside diameter of a male NH / NST adapter - 6 1/4 inches (6.26) - 4 Threads per inch

6" Male Adapter

  • Inside diameter of a male adapter - 6 inches
  • Outside diameter of a male NH / NST adapter - 7 inches (7.025) - 4 Threads per inch

Help Me Connect

Connections

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection
  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection. It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
  • The female side of a garden hose will only connect to a male garden hose connection.
  • The male side of a garden hose will only connect to a female garden hose connection.

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
