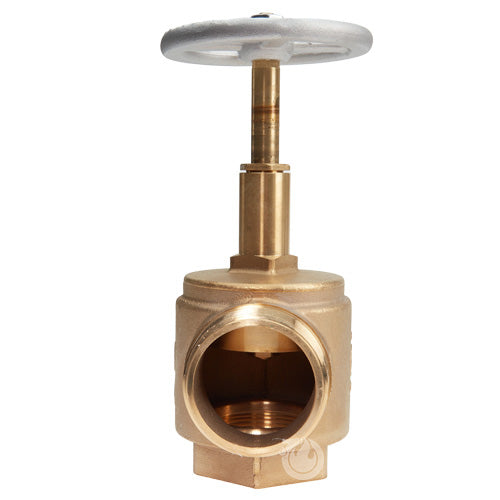

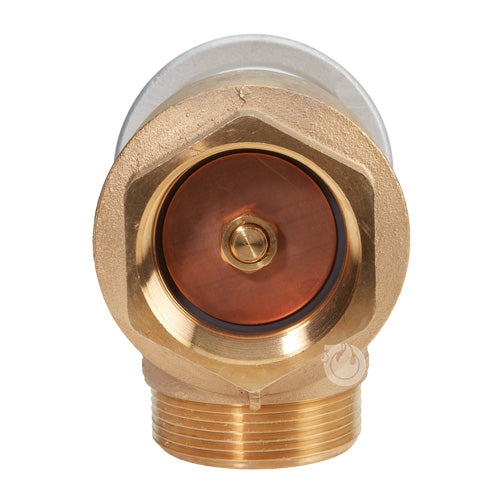

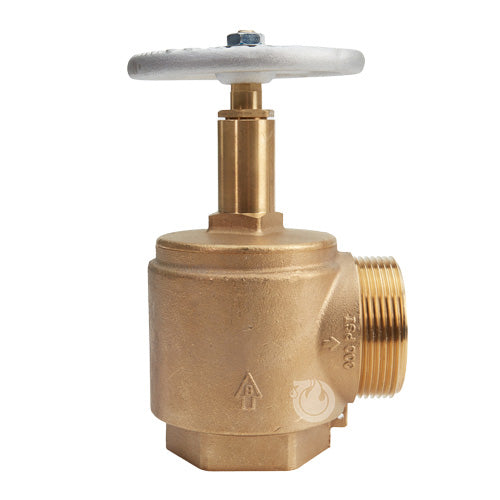

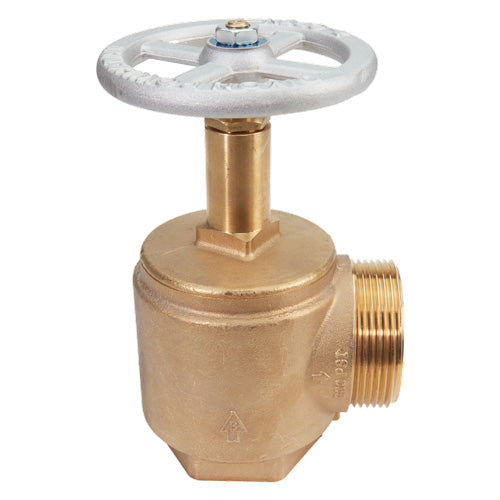

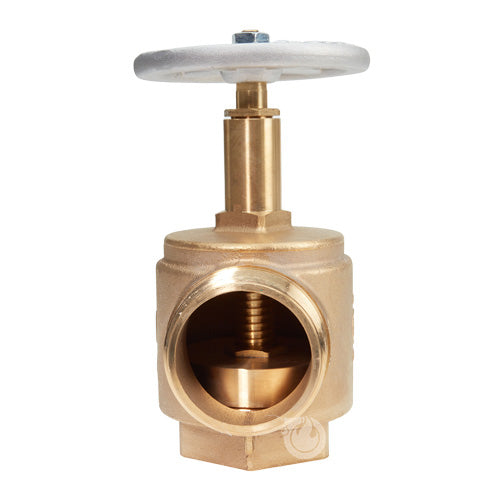

Cast Valve 1 1/2" Female NPT to 1 1/2" Male NPSH Domestic

  • Cast Valve 1 1/2" Female NPT to 1 1/2" Male NPSH Domestic
1 3
Price: $215.14
$0.00 $215.14
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Sep 12, 2024


Item Number: CAV15FN15MP-D
Weight: 6.0 lb
  • Made In USA
  • Factory Approved (FM) - Yes
  • Underwriters Listed (UL) - Yes
  • Body Material - Cast Brass
  • Component Material - Aluminum Handwheel
  • Inlet Size - 1 1/2 inch Female NPT
  • Outlet Size - 1 1/2 inch Male NPSH
  • Working Pressure - 300 PSI at 70° F
  • Note: Wheel Color May Vary
View full details

Description

Global cast brass angle hose valve is used with fire hose rack assembly, or as a fire department outlet connection.

Specifications

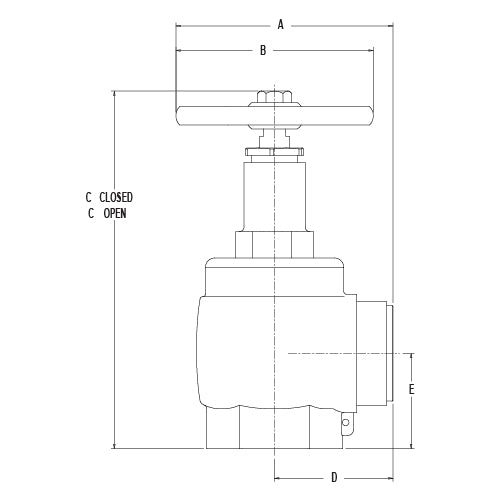

Dimensions
• A – 4.13"
• B – 3.75"
• C (closed) – 6.80"
• C (open) – 7.78"
• D – 2.25"
• E – 1.81"
• Weight – 4.4 lbs
