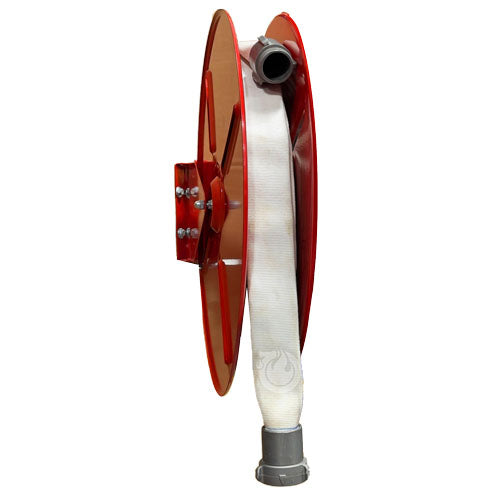

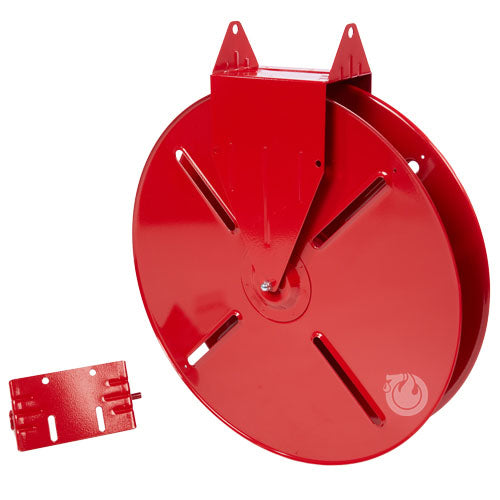

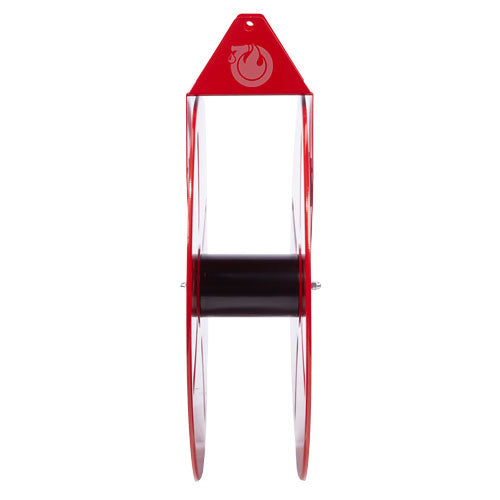

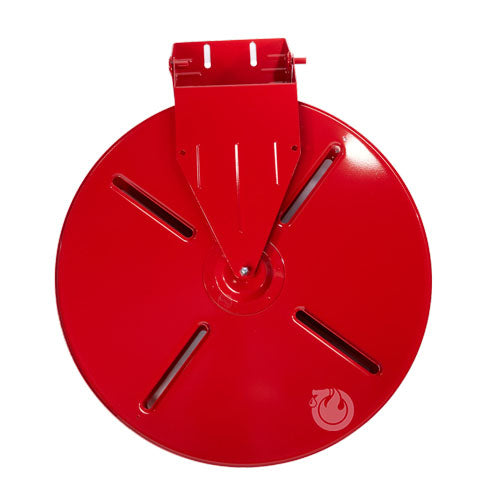

Ex-Large Fire Hose Storage Reel

Item Number: HSR25-24
  • Ex-Large Fire Hose Storage Reel
1 8
$336.60
$0.00 $336.60
Sale Sold out
Special Order
Ships: Approx. Sep 28, 2026

Free Shipping

  • Weight: 29.0 lb
  • 2 1/2 inch Single Jacket Hose Capacity: 100 feet
  • 2 1/2 inch Double Jacket Hose Capacity: 50 feet

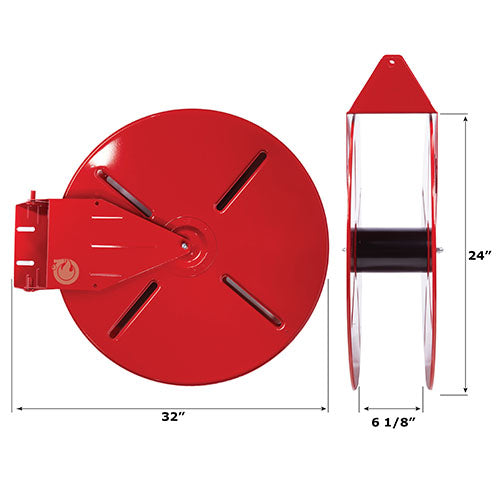

  • Dimensions: 32" L x 24" H x 6 1/8" Inside W
  • USMCA Compliant
  • Uses cover HR15C

Description

The Extra Large Fire Hose Storage Reel is a heavy-duty, swing-type reel designed for safely storing fire hoses. It accommodates 1 1/2 inch or 2 1/2 inch single or double jacket hose, with capacities up to 100 feet for 2 1/2 inch single jacket or 50 feet for 2 1/2 inch double jacket hose. Featuring a 14 gauge one piece wall bracket for easy mounting and a 180 degree swing, this compact reel has a baked red enamel finish. Made in the USA/Canada and USMCA compliant, mounting hardware is included, while hose, cover, and nozzles are sold separately.
View full details

Additional Details

Swing type fire hose storage reel will hold 1 1/2 inch or 2 1/2 inch single or double jacket hose. This product is made in the USA/Canada and is USMCA compliant. Mounting hardware included. Stores hose up to 2 1/2 inches only.

Hose, cover and nozzles are not included.

Features

  • Heavy duty construction

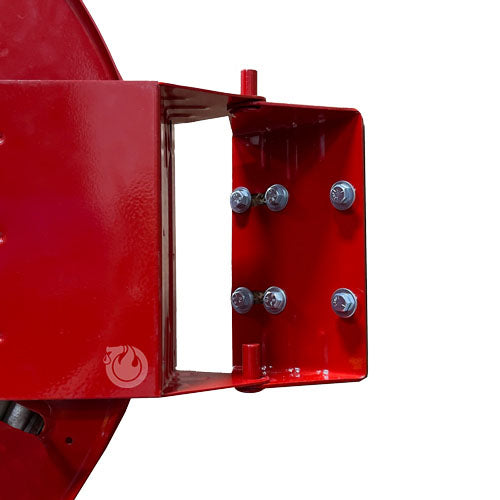

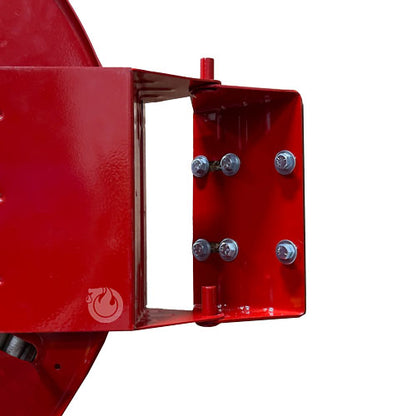

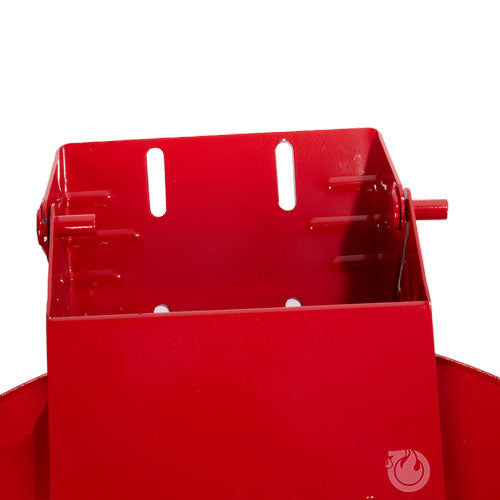

  • One piece wall bracket (14 gauge) for easy mounting
  • 180 degree swing
  • Baked red enamel finish
  • Compact size - smaller reel hub to allow more hose storage.
  • Hose is easily removed by pulling toward fire area. Instantly ready for action when completely removed, and valve is opened.

How To Roll Hose On Reel

  1. Lay the hose straight and flat on the ground.
  2. Fold the hose in half laying flat on the ground so that the couplings are together one above the other, male coupling on top. One half is now laying flat on top of the other half. Pull female coupling forward approximately 2 feet ahead of male.
  3. Roll the hose on the reel, beginning at the folded end that does not contain the couplings. You should end with the nozzle end on top and a female coupling on the bottom.
  4. Attach female coupling to water source so hose is ready for immediate use. Hose must be unrolled before water valve is opened.

FAQs

What types and sizes of fire hose can this storage reel accommodate?

This storage reel is designed to hold either 1 1/2 inch or 2 1/2 inch single or double jacket fire hose. It can store hoses up to 2 1/2 inches only.

What is the maximum hose capacity for this reel?

The reel can hold up to 100 feet of 2 1/2 inch single jacket hose or 50 feet of 2 1/2 inch double jacket hose. Its compact design allows for more hose storage with a smaller reel hub.

Are the fire hose, cover, and nozzles included with the reel?

No, the fire hose, cover, and nozzles are not included with the storage reel. Only the reel and its mounting hardware are supplied.

What are the physical dimensions of the extra large fire hose storage reel?

The reel measures 32" length, 24" height, and has an inside width of 6 1/8".

Is mounting hardware provided with the reel?

Yes, mounting hardware is included with the Ex-Large Fire Hose Storage Reel. It features a 14 gauge one-piece wall bracket for easy installation.

What cover is compatible with this fire hose storage reel?

This fire hose storage reel is compatible with cover HR15C.
