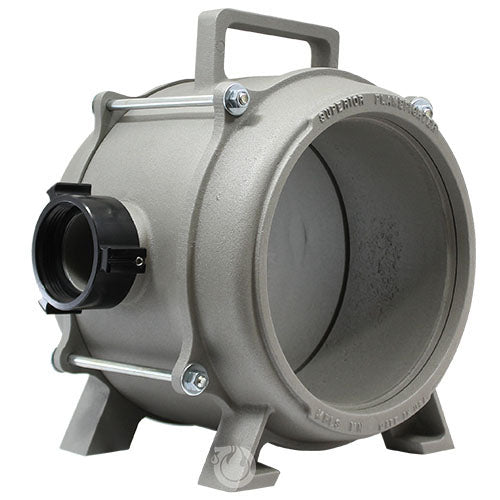

Fire Hose Washer (Up to 5" Hoses)

Skip to product information
1 of 3
Regular price Price: $1,081.63
Regular price $0.00 Sale price $1,081.63
Sale Sold out

Stock Level: 0

Product Status: On Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free Shipping

Shipping Transit Time: 2-5 Days When Back In Stock

Eligible for Express Shipping: No

Stock Level Updated: Oct 14, 2024


Item Number: FHW5
Weight: 27.75 lb
  • Made In USA
  • Material - Aluminum
  • Inlet - 2 1/2 inches Female NH / NST
  • Maximum Hose Size - 5 inches
  • Height - 15 inches
  • Width - 15 inches
View full details

Collapsible content

Description

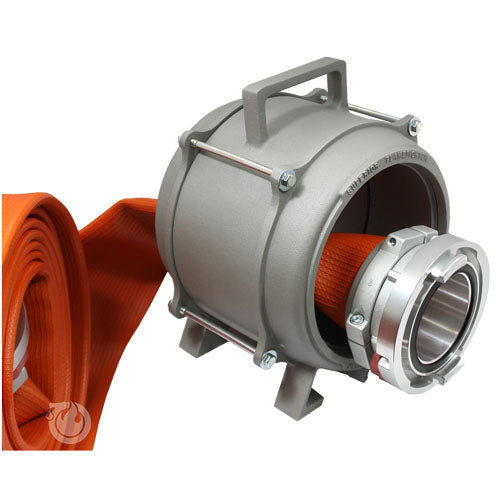

Fire hose washer. For hose sizes up to 5 inches. Two conical water jets pull the hose through the washer while removing soluble contaminants. Constructed of sturdy welded aluminum. Lightweight anodized 2 1/2 inch NH/NST female swivel. Cleans all types of dirty and caked hoses. Connect to a fire hydrant or pumper with recommended operating PSI of 30 to 60.

Specifications

2 1/2" Hose Coupling

  • Inside diameter of a male adapter - 2 1/2 inches
  • Outside diameter of a male NH / NST adapter - 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT adapter - 2 13/16 inches (2.84) - 8 Threads per inch

Help Me Connect

Connections

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection
  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection.
    It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
  • The female side of a garden hose will only connect to a male garden hose connection.
  • The male side of a garden hose will only connect to a female garden hose connection.

NH / NST - The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

NPSH - National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

NPT - National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

All FlameFighter products are warranted against any and all defects in material or manufacturing. FlameFighter will repair or replace, at their option, any FlameFighter product proved to be defective in materials or workmanship during lifetime of the product. Normal wear, abuse, improper care and negligence are not covered.
