Fire Hydrant Diffuser 2 1/2" NH / NST (160PSI) with Case

  • Fire Hydrant Diffuser 2 1/2" NH / NST (160PSI) with Case
1 9
Price: $779.25
$0.00 $779.25
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Dec 22, 2024


Item Number: HYDPRO160WCASE
Weight: 12.5 lb
  • Gauge: Gallons Per Minute (GPM) and PSI
  • Construction: Aluminum
  • Inlet: Swivel Female 2 1/2 inch NH / NST
  • Gauge: 160 PSI / 2120 Liquid Filled
  • Max GPM: 2120 GPM
  • Diameter of Gauge: 4 1/8 inches
  • Distance out from Hydrant: 13 inches
  • Case Dimensions: Length 14 1/2" Width 19" Height 7 3/8"
View full details

Description

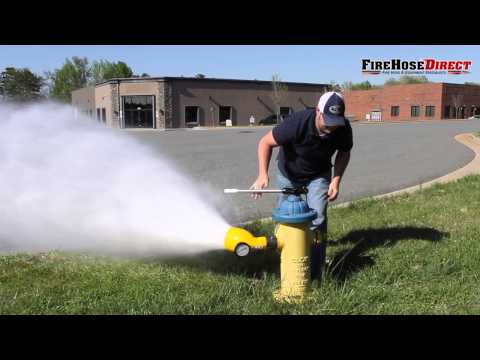

Our 2 1/2 inch NH/NST 160 PSI / 2120 GPM Gauge hydrant diffuser is the key to quick and efficient hydrant testing and hydrant flowing. Combining both a pitot gauge and hydrant diffuser into one tool makes hydrant tasks clean, quick, and efficient. This lightweight design is constructed from quality aluminum and features a swivel adapter to flush water in the direction desired. This tool will eliminate disturbing the landscaping or damaging objects in the waters path. The rugged construction will provide years of dependable service. All parts of this assembly are replaceable if damaged. The liquid filled gauge will allow accurate readings.

Download Instructions

How to Calculate Rated Capacity

Specifications

The Female will only Connect to a Male Fire Hydrant 2 1/2 inch NH / NST

2 1/2" Male Adapter
  • Inside diameter of a male adapter: 2 1/2 inches
  • Outside diameter of a male NH / NST adapter: 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 2 7/8 inches (2.84) - 8 Threads per inch

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
