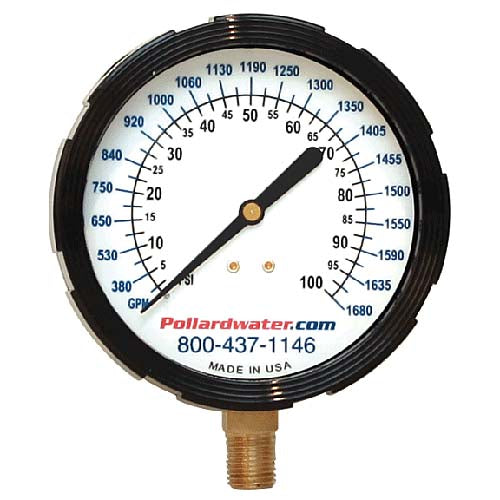

Hydrant Diffuser Gauge 100PSI/ 1680GPM
Stock Level: 0
Product Status: Special Order
Shipping Cost: Free Shipping
Shipping Transit Time: 2 to 5 Business Days
Eligible for Express Shipping: No
Stock Level Updated: Dec 6, 2024
Item Number: HYD100
Weight: 2.0 lb
- Made In USA
- Diameter: 4 inches
- End connection: 1/4 inch MNPT
- Rugged Nylon Case
- Liquid Filled
Collapsible content
Description
Specifications
- Outside diameter of a male GHT adapter: 1 1/16 inches (1.06) - 11.5 Threads per inch
- Garden hose thread is not the same as 3/4 inch pipe thread (NPT)
- Inside diameter of a male adapter: 1 inch
- Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch
- Inside diameter of a male adapter: 1 1/2 inches
- Outside diameter of a male NH / NST adapter: 2 inches (1.99) - 9 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 1 7/8 inches (1.87) - 11.5 Threads per inch
- 1 3/4 inch hoses come with 1 1/2 inch couplings
- Inside diameter of a male adapter: 2 inches
- Outside diameter of a male NH / NST adapter: 2 1/2 inches (2.51) - 8 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 2 3/8 inches (2.35) - 11.5 Threads per inch
Note: 2 inch NH or NST is very rare. If the outside diameter of male adapter is approximately 2 inches, you need 1 1/2 inch NH or NST.
- Inside diameter of a male adapter: 2 1/2 inches
- Outside diameter of a male NH / NST adapter: 3 1/16 inches (3.06) - 7.5 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 2 7/8 inches (2.84) - 8 Threads per inch
- Most 3 inch hoses come with 2 1/2 inch couplings
- Inside diameter of a male adapter: 3 inches
- Outside diameter of a male NH / NST adapter: 3 5/8 inches (3.62) - 6 Threads per inch
- Outside diameter a male NPSH adapter: 3 1/2 inches (3.47) - 8 Threads per inch
- Outside diameter a male NPT adapter: 3 3/8 inches (3.38) - 8 Threads per inch
- Inside diameter of a male adapter: 4 inches
- Outside diameter of a male NH / NST adapter: 5 inches (5.01) - 4 Threads per inch
- Outside diameter a male NPSH adapter: 4 1/2 inches (4.47) - 8 Threads per inch
- Inside diameter of a male adapter: 4 1/2 inches
- Outside diameter of a male NH / NST adapter: 5 3/4 inches (5.76) - 4 Threads per inch
- Outside diameter a male NPSH or NPT adapter: 5 inches (4.97) - 8 Threads per inch
- Inside diameter of a male adapter: 5 inches
- Outside diameter of a male NH / NST adapter: 6 1/4 inches (6.26) - 4 Threads per inch
- Outside diameter of a male NPSH adapter: 5 9/16 inches (5.56) - 8 Threads per inch
- Outside diameter of a male NPT adapter: 5 7/16 inches (5.44) - 8 Threads per inch
- Inside diameter of a male adapter: 6 inches
- Outside diameter of a male NH / NST adapter: 7 1/32 inches (7.025) - 4 Threads per inch
- Outside diameter of a male NPSH adapter: 6 5/8 inches (6.62) - 8 Threads per inch
- Outside diameter of a male NPT adapter: 6 1/2 inches (6.50) - 8 Threads per inch
Help Me Connect
NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.
- The female side of a NH / NST coupling will only connect to a male NH / NST connection
- The male side of a NH / NST coupling will only connect to a female NH / NST connection
NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.
- The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
- The male side of a NPSH coupling will only connect to a female NPSH connection
- It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.
