Plastic 1 1/2" Female Camlock x 1 1/2" Male BSP (USA)

  • Plastic 1 1/2" Female Camlock x 1 1/2" Male BSP (USA)
1 7
Price: $19.47
$0.00 $19.47
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 21, 2024


Item Number: DP15F15MB
Weight: 0.52 lb
  • Made In USA
  • Body Material: Polypropylene
  • Camlock (Cam & Groove) Size: 1 1/2  inch Female
  • Threaded Size: 1 1/2 inch Male BSP
  • The Male will only Connect to a Female 1 1/2 inch BSP
  • Maximum Operating Pressure: 100 PSI
  • Type: "B" Quick Disconnect
  • Seal: Thread Compound
View full details

Description

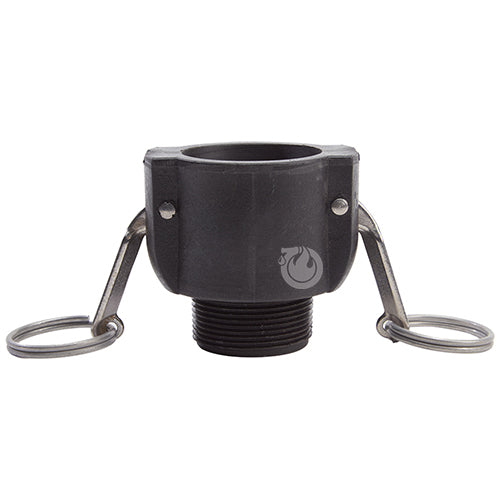

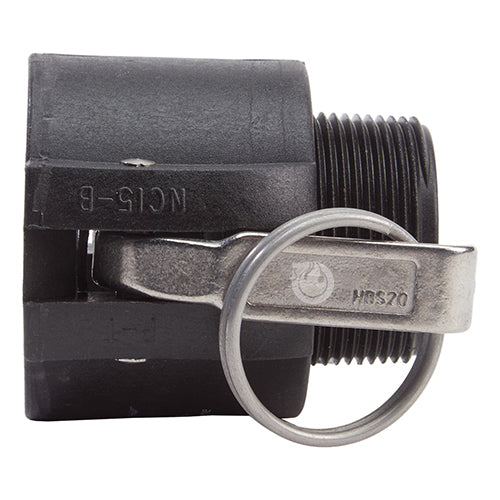

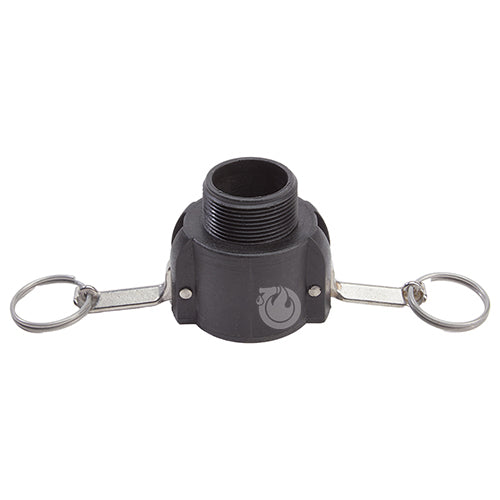

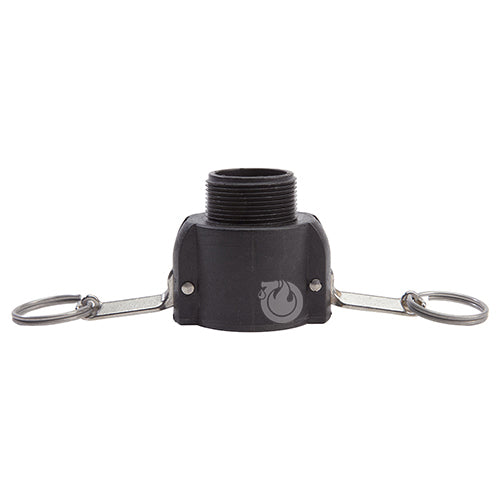

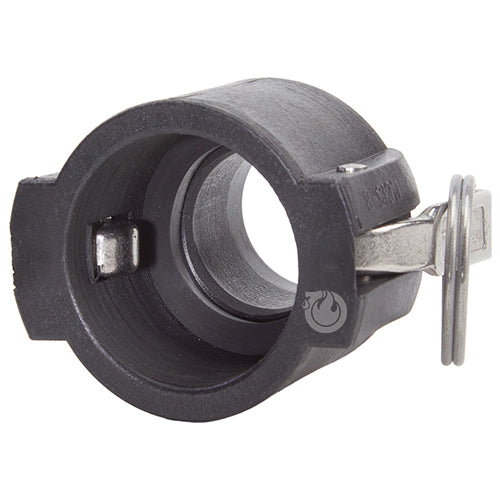

Type "B" polypropylene 1 1/2 inch female camlock (Cam & Groove) coupler to 1 1/2 inch male BSP threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to 1 1/2 inch male camlock. The male threaded side of this adapter will only connect to a 1 1/2 inch female British Standard Pipe (BSP) thread
  • British Standard Pipe (BSP) can be most commonly found in Canada, UK, Europe, Asia and Australia. It is a finer thread than National Pipe Thread (NPT), and will not seal properly if used in conjunction with it

Two types of threads are used

  • British Standard Pipe Taper (BSPT) and British Standard Pipe Parallel (BSPP). British Standard Pipe Taper uses a tapered thread system, and sealant is provided to help secure the male and female connection
  • British Standard Pipe Parallel uses a parallel thread system, and a rubber gasket is often included to secure the male and female connection

Warning: Polypropylene cam & groove should not be mixed with metal fittings. We recommend using polypropylene with other poly, plastic, pvc, banjo type camlock fittings.

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Chemical
  • Sanitary
  • Government
  • Storage
  • Dry bulk
  • Petroleum

Applications

  • Reverse osmosis systems
  • Water treatment
  • Water transport
  • Irrigation
  • Waste / vacuum trucks
  • Hydraulic oil, coolants, gasoline and petroleum products
  • Salt water
  • Waste water
  • Chemical movement & storage

Specifications

  • Inside Diameter of a Female Camlock: 2 1/8 inches (2.125)
  • Outside Diameter of a Male 1 1/2 inch BSP Adapter: 1 7/8 inches (11 Threads per inch)

Download Spec Sheet

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
