Red 1 1/2" x 50' Medium Duty Discharge Hose

  • Red 1 1/2" x 50' Medium Duty Discharge Hose
1 6
Price: $77.42
$0.00 $77.42
Sale Sold out

Stock Level: 4

Product Status: Limited Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 21, 2024


Item Number: 15RD50MF
Weight: 10.5 lb
  • Hose Size: 1 1/2 inches
  • Hose Length: 50 feet
  • The Male will only Connect to a Female 1 1/2 inch NPSM or NPSH (not NPT)
  • Female coupling: Brass 1 1/2 inch Straight Pipe Thread (NPSH)
  • The Female Coupling will only Connect to a Male 1 1/2 inch NPT or NPSH
  • Maximum Pressure: 150 PSI
  • NOT for Closed Pressure Applications
  • Tube: Red Lay Flat PVC
  • Approximate wall thickness: 0.075 inch
  • Weight per foot: 0.20 pounds
  • Type of use: Water
  • Working temperature: -5° F to 130° F
View full details

Description

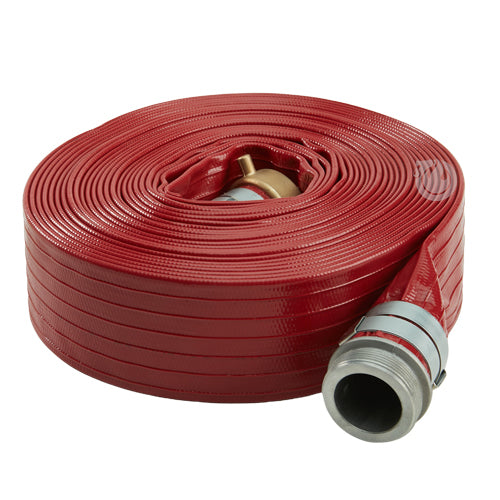

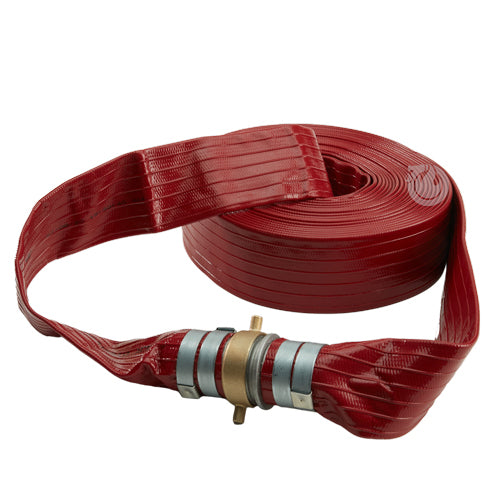

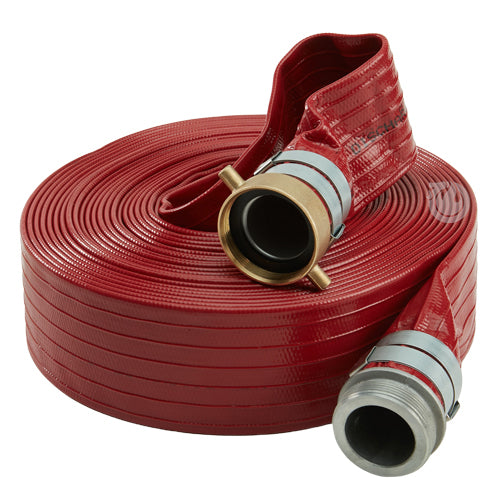

Red lightweight lay flat PVC discharge hose is rated for light to medium duty. This hose is designed to be used in lower range water pressure situations having a maximum pressure of 150 PSI. This pump discharge hose is constructed from red PVC and reinforced by polyester yarn. Popular hose for general outdoor low pressure discharge applications.

Not intended for indoor use, firefighting or closed pressure applications such as use with nozzles.

Specifications

  • A lightweight PVC water discharge hose featuring PVC tube and cover
  • Hose is reinforced with two spiral plies and longitudinal synthetic cords
  • Not intended for use as a fire hose
  • Used for open ended discharge applications only

Applications

  • Open discharge
  • Agriculture
  • Irrigation
  • Construction
  • Industrial

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



Specifications

1 1/2" Hose Male Couplings

  • Inside diameter of a male coupling: 1 1/2 inches
  • Outside diameter of a male NH / NST coupling: 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT coupling: 1 7/8 inches (1.87) - 11.5 Threads per inch

Download Spec Sheet

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

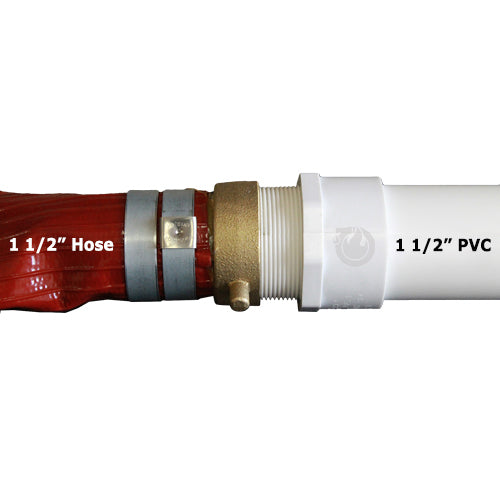

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
