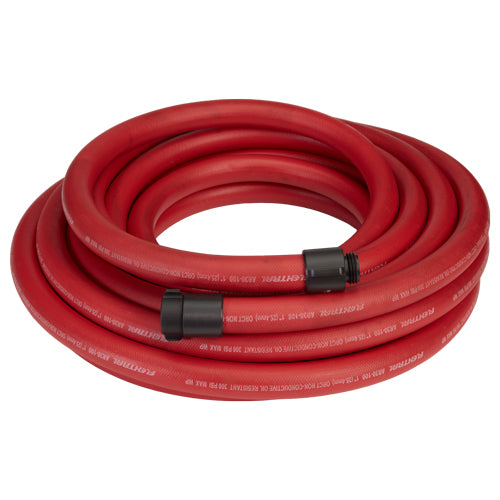

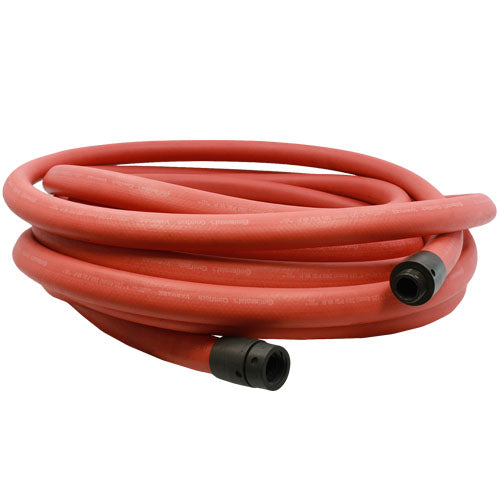

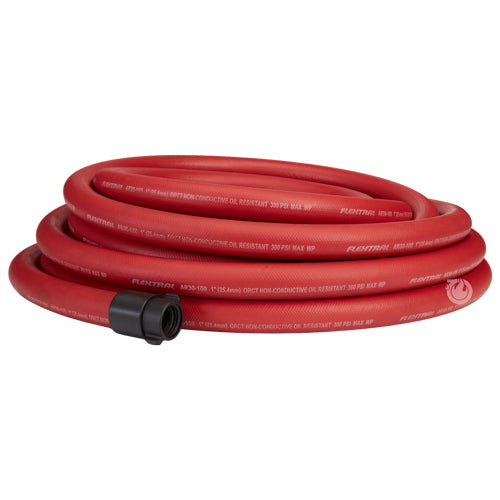

1" x 50' Non-Collapsible Rubber Hose (1" NPSH Threads)

  • Red 1" x 50' Non-Collapsible Rubber Hose (Alum 1" NPSH Couplings)
1 6
Price: $465.51
$0.00 $465.51
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 22, 2024


Item Number: 10B350P
Weight: 30.0 lb
  • Hose Inside Diameter Size: 1 inch
  • Hose Outside Diameter Bowl Size: 1 1/2 inches
  • Hose Length: 50 feet (Approximately)

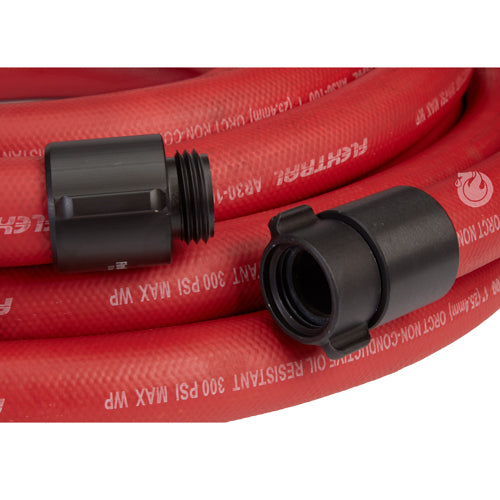

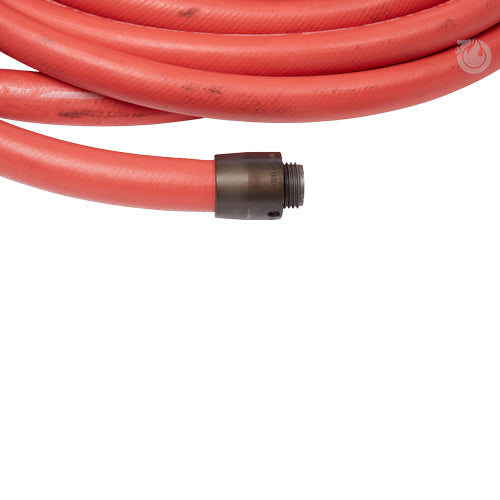

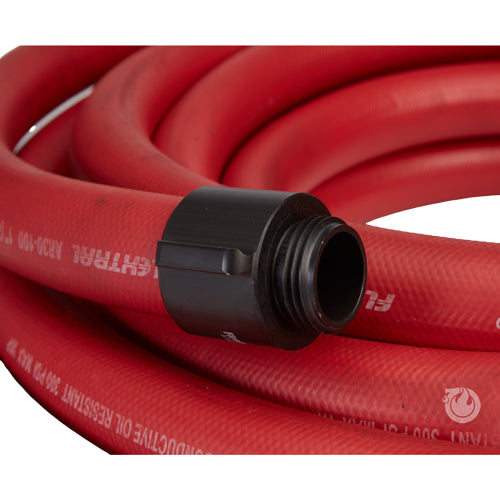

  • Male Coupling: Aluminum 1 inch NPSH

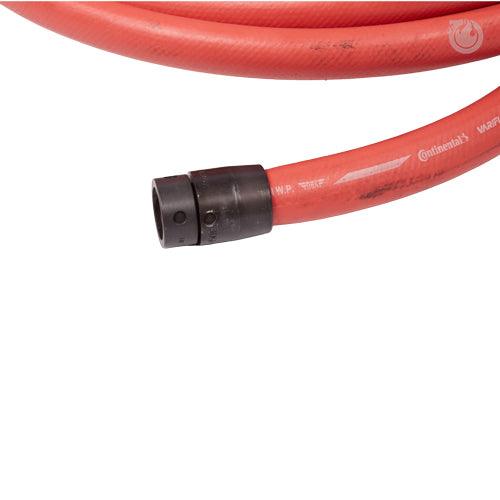

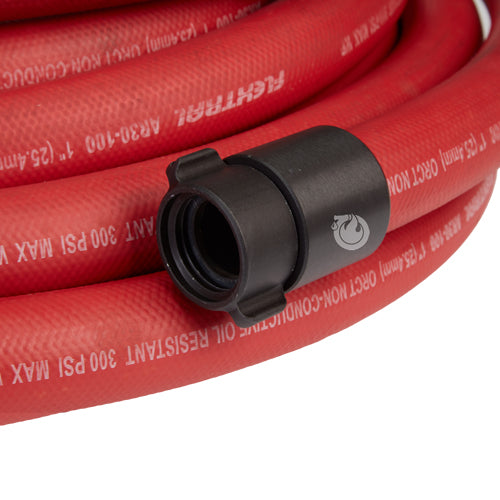

  • Swivel Female Coupling: Aluminum 1 inch NPSH
  • The Female Coupling will only Connect to a Male 1 inch NPT or NPSH
  • Compatible Nozzle: 1 inch NPSH only

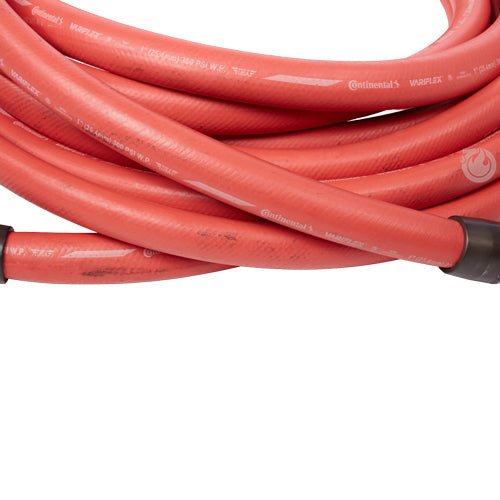

  • Hose Cover: Red Synthetic Rubber
  • Color: Red
  • Liner: Nitrile Synthetic Rubber
  • Maximum Working Pressure: 300 PSI
  • Burst Pressure: 600 PSI
  • Temperature Range: -20°F to 190°F
View full details

Description

This non-collapsible utility booster hose assures all around dependable service, years of trouble free use and adequate reinforcement for pump pressures to 300 PSI. This good quality, economical general purpose booster hose (aka Red Line) is the traditional hard rubber hose.

Applications

  • Lightweight firefighting needs
  • Rapid deployment
  • Booster Hose Reels

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



Specifications

1" Hose Male Couplings

  • Inside diameter of a male adapter: 1 inch
  • Outside diameter of a male NH / NST adapter: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 5/16 inches (1.295) - 11.5 Threads per inch

Download Spec Sheet

Help Me Connect

  • The female side of a garden hose will only connect to a male garden hose connection
  • The male side of a garden hose will only connect to a female garden hose connection

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
