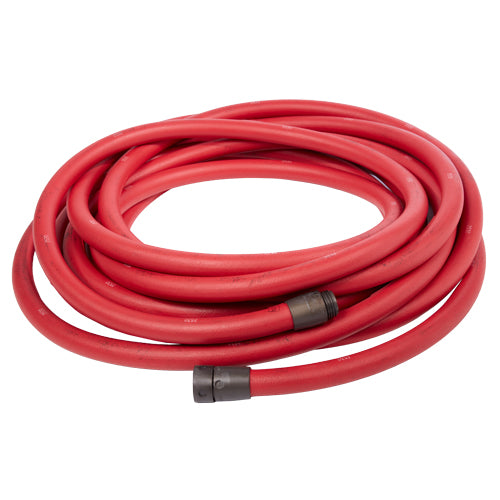

3/4" x 100' Non-Collapsible High Pressure Rubber Hose (1" NH Threads)

Skip to product information
1 of 6
Regular price Price: $895.24
Regular price $0.00 Sale price $895.24
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Dec 6, 2024


Item Number: 75B8100
Weight: 60.0 lb
  • Made In USA
  • Hose Inside Diameter Size: 3/4 inch
  • Hose Outside Diameter Bowl Size: 1 1/4 inches
  • Hose Length: 100 feet (Approximately)

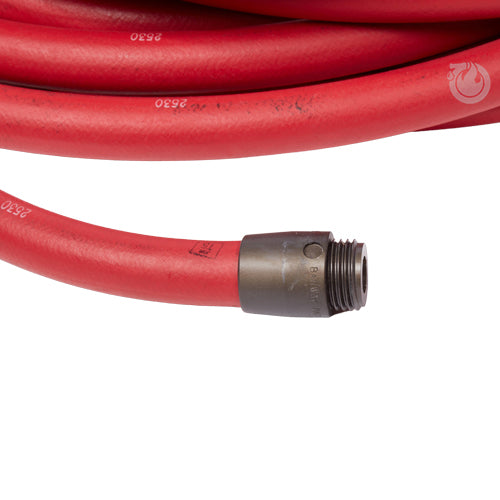

  • Male Coupling: Aluminum 1 inch NH / NST

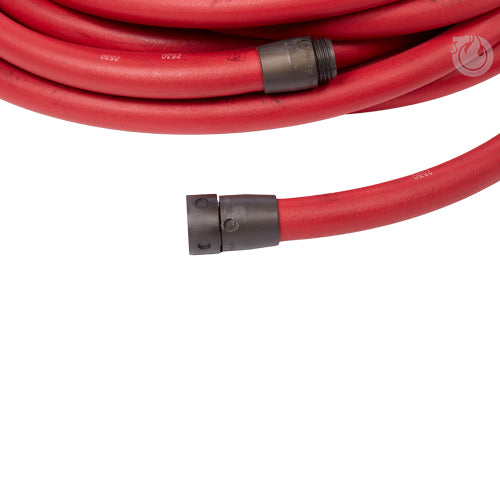

  • Swivel Female Coupling: Aluminum 1 inch NH / NST
  • The Female Coupling will only Connect to a Male 1 inch NH / NST
  • Compatible Nozzle: 1 inch NH / NST only
  • Hose Cover: Red Synthetic Rubber
  • Color: Red
  • Liner: Nitrile Synthetic Rubber
  • Maximum Working Pressure: 800 PSI
  • Burst Pressure: 3200 PSI
  • Temperature Range: -20° F to 190° F
View full details

Collapsible content

Description

This Goodyear non-collapsible utility booster hose assures all around dependable service, years of trouble free use and adequate reinforcement for pump pressures to 800 PSI. This good quality, economical general purpose booster hose (aka Red Line) is the traditional hard rubber hose. Made in the USA!

Applications

  • Lightweight firefighting needs
  • Rapid deployment
  • Booster Hose Reels

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



Specifications

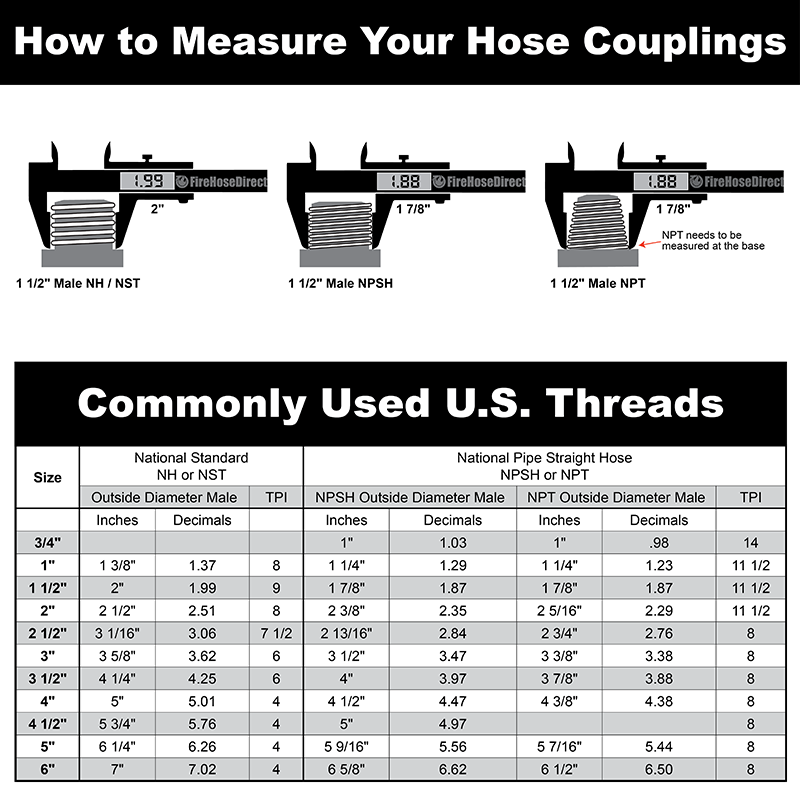

1" Hose Male Couplings

  • Inside diameter of a male coupling : 1 inch
  • Outside diameter of a male NH / NST coupling: 1 3/8 inches (1.375) - 8 Threads per inch
  • Outside diameter a male NPSH or NPT coupling: 1 5/16 inches (1.295) - 11.5 Threads per inch

Download Spec Sheet

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
