Additional Details

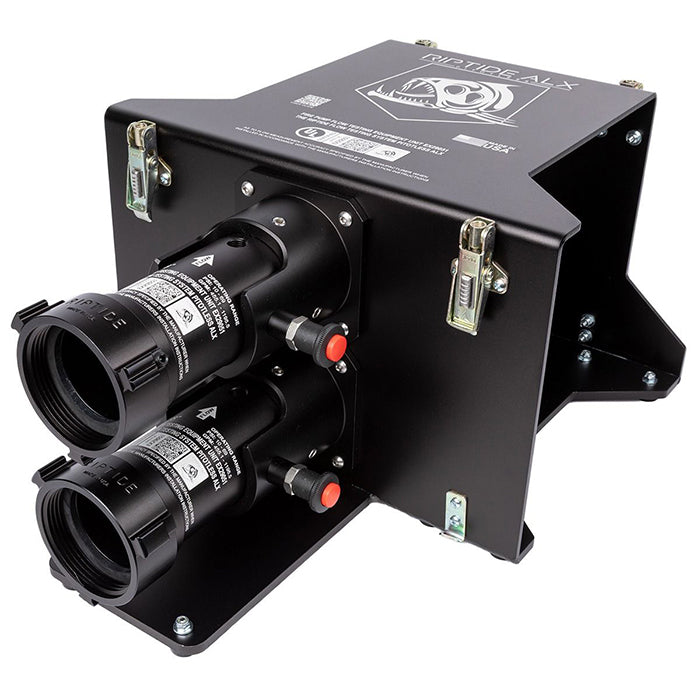

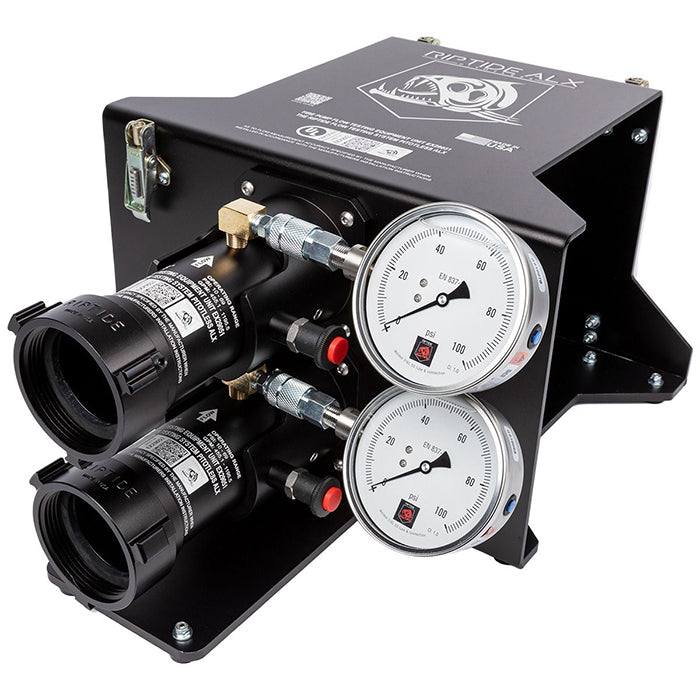

The Riptide ALX Double Action Water Pitotless Diffuser is a professional-grade flow testing system designed for fire safety professionals to accurately measure water flow from fire pumps and hydrants. This unit features two pitotless waterways for multi-stream operation.
Key Features
- Designed for fire pump flow testing and hydrant flow testing applications.
- Pitotless Waterways: Equipped with two waterways, allowing for simultaneous, independent flow measurement.
- ALX Model: Constructed from aluminum for enhanced durability and lighter weight.
- UL Certified: Certified by UL under EX29051, ensuring adherence to rigorous safety and performance standards.
- Accurate Readings: Laboratory instrumentation used is ISO 17025 traceable, with readings accurate to within +/-1.25%.
- Multi-Stream Operation: Allows for independent GPM readings from each waterway, which can be added together for total volume flowing.
- Stacking Configurations: Can be used in authorized stacking configurations with other Riptide diffusers for increased testing capacity. Note: Riptide ALX and Riptide Pitotless ALX models must never be placed underneath a legacy steel Riptide when stacking.

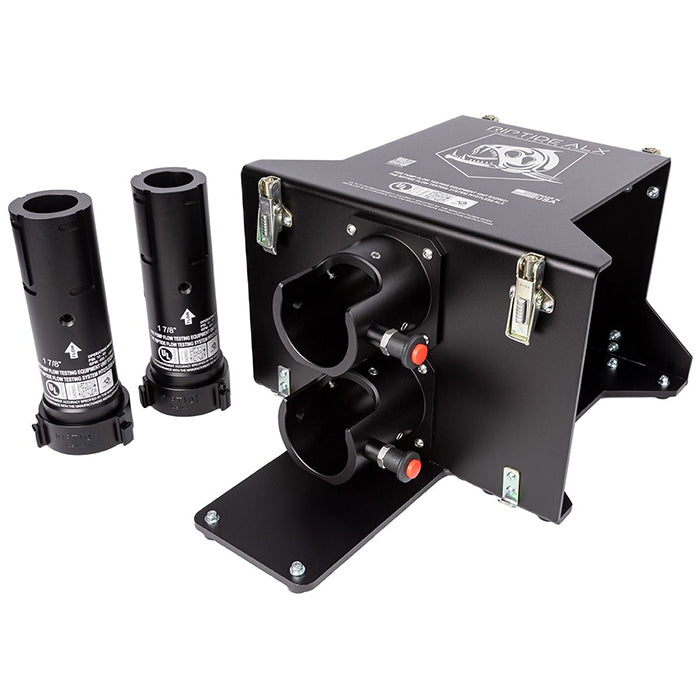

- Serviceable Components: Designed for easy replacement of components like couplings, receivers, and pin locks.
Safety Information
- Always evaluate the condition of all equipment components (rubber feet, coupling gaskets, cam-locks, catches, nuts, screws) prior to use and replace any deficient components.
- Ensure OSHA required PPE is worn at all times when operating this equipment.
- Do not remove a Waterway from a Receiver while actively flowing water.
Specifications
Each Double Action Riptide™ Diffuser comes with the following items:
- Two 1 7/8" Waterways
- 30 #8 Machine Screws
- 30 Nylon Locking Nuts
- 30 Washers
- 10 Rubber Feet
- 4 Cam-Locks
- 4 Catches
- 2 Quick Connect Assembly
- 2 Street 90°
FAQs
What is the primary use of the Riptide ALX Double Action Water Pitotless Diffuser?
This diffuser is specifically designed for fire pump flow testing. It accurately measures water flow from firehoses without needing a traditional pitot, making it suitable for fire safety assessments.
How many waterways does this diffuser have, and what are their sizes?
The Riptide ALX Double Action Water Pitotless Diffuser features two independent waterways. Each waterway has a 1-7/8 inch diameter for flow measurement.
What is the accuracy of the flow readings from this diffuser?
The readings from this diffuser are found to be accurate to within +/-2%. All laboratory instrumentation used in its design and testing is ISO 17025 traceable.
Can this Riptide ALX Pitotless Diffuser be stacked with other Riptide models?
Yes, it supports authorized stacking configurations. However, Riptide ALX and Pitotless ALX diffusers must never be placed underneath a legacy steel Riptide when stacking.
What is typically included with the Riptide ALX Double Action Water Pitotless Diffuser?
Each diffuser includes 30 #8 Machine Screws, 30 Nylon Locking Nuts, 30 Washers, 10 Rubber Feet, 4 Cam-Locks, 4 Catches, 1 Quick Connect Assembly per Waterway, and 1 Street 90° per Waterway.
How do I connect firehoses to this diffuser?
The female end of a 2.50 inch firehose connects to the source being tested. The same type and size firehose then connects into the Coupling on the Riptide Diffuser, ensuring a water-tight connection.
Where is the Riptide ALX Double Action Water Pitotless Diffuser manufactured?
This Riptide ALX Double Action Water Pitotless Diffuser is proudly Made in the USA.
