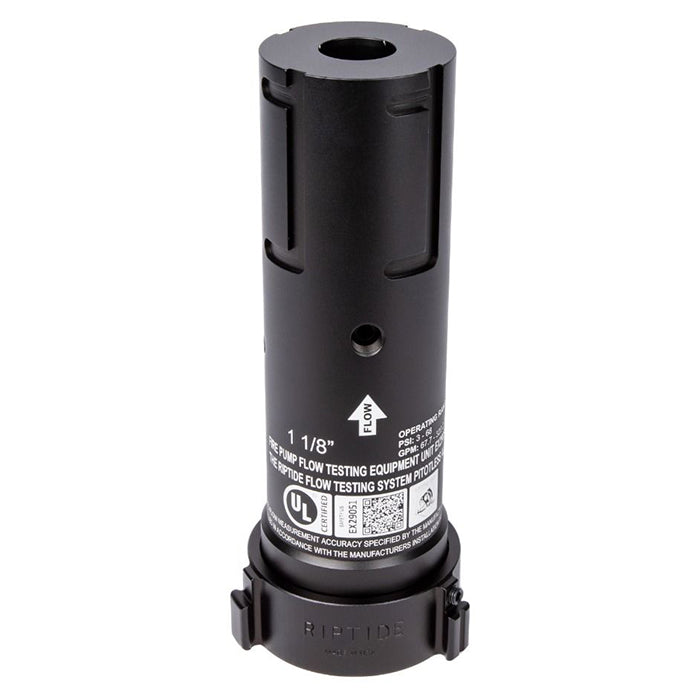

Riptide ALX Pitotless Waterway 1 1/8"

Item Number: 6510978
  • Riptide ALX Pitotless Waterway 1 1/8"
1 1
$772.59
$772.59
Sale Sold out
Special Order
Ships: Contact for Lead Time
  • Weight: 4.0 lb
  • Made in the USA
  • Pitotless design for low flow rate measurement
  • UL Certified for accurate flow measurement (EX29051)
  • Waterway Size: 1 1/8 inch
  • Body Material: Aluminum
  • Flow Range: 67.7 – 322.2 GPM
  • Flow Measurement Accuracy: +/- 1.25%
  • Compatible with PITOTLESS ALX Riptide Diffuser systems

Description

The Riptide ALX Pitotless Waterway 1 1/8 inch is a vital component for fire pump flow testing, specifically designed to accurately measure lower flow rates without a pitot tube. Constructed from durable aluminum, this 1 1/8 inch waterway is UL Certified (EX29051) for exceptional flow measurement accuracy of +/- 1.25%. It offers a flow range from 67.7 – 322.2 GPM, making it suitable for precise performance evaluation. This waterway integrates seamlessly with Single, Double, Triple, and Quad Action ALX Riptide Diffusers, ensuring reliable and consistent results for fire safety professionals. Proudly Made in the USA.

Help Me Connect

The Riptide ALX Pitotless Waterway 1 1/8 inch is designed for integration into the larger Riptide Flow Testing System ALX. It connects securely to the Receiver of a Riptide Diffuser unit.
  • To install, depress the Red Safety Button on the Pin Lock and pull the Black Knob away from the Waterway. Slide the Waterway into the Receiver, aligning the pressure measurement port and Set Screws, then twist clockwise until secure.
  • The integrated coupling threads onto a 2 1/2 inch firehose ensuring a water-tight connection for flow testing.
  • When replacing the coupling, ensure the C-Dimension (distance from the back of the pressure measurement port hex to the front of the Coupling) is 6 1/2 inches, +/- 0.100 inch, for a water-tight connection.
Important Note: This waterway can be removed from the Receiver for flowing to atmosphere without diffusing. However, do not flow water from a Pitotless Waterway if it is attached directly to a firehose but not secured within a Receiver affixed to a Riptide Diffuser.
View full details

Additional Details

The Riptide ALX Pitotless Waterway 1 1/8 inch is an essential component for the Riptide Flow Testing System, engineered to accurately capture lower flow rates during fire pump flow testing without requiring a pitot tube.This waterway provides precise measurement data for evaluating the performance of fire safety systems.
Features
  • Pitotless design specifically for measuring lower flow rates.
  • UL Certified (EX29051) ensuring flow measurement accuracy when installed per manufacturer instructions.
  • Constructed from durable aluminum for extended service life.
  • Integrated coupling for secure hose connections.
Compatibility and Operation
  • Designed for seamless integration with Single, Double, Triple, and Quad Action ALX Riptide Diffusers.
  • Supports various Authorized Waterway Configurations for versatile testing scenarios.
  • Always wear OSHA required PPE during operation. Do not flow water from a Pitotless Waterway if it is attached directly to a firehose but not secured within a Receiver affixed to a Riptide Diffuser.

The PITOTLESS ALX Diffuser comes with 1 7/8" Pitotless Waterways, this is a 1 1/8" replacement part for lower GPM testing(67.7 – 322.2) per waterway.

FAQs

What is the primary use of the Riptide ALX Pitotless Waterway 1 1/8 inch?

It is used as part of a fire pump flow testing system to accurately capture and measure lower water flow rates. Its pitotless design simplifies the measurement process for fire safety professionals.

What is the flow rate range for this 1 1/8 inch waterway?

The Riptide ALX Pitotless Waterway 1 1/8 inch has a measured flow range from 67.7 to 322.2 GPM. This allows for precise data collection across various testing scenarios.

Is this product UL Certified for accuracy?

Yes, the Riptide ALX Pitotless Waterway 1 1/8 inch is UL Certified under EX29051. It delivers flow measurement accuracy to within +/- 1.25% when installed according to the manufacturer's instructions.

What other Riptide components is this waterway compatible with?

This waterway is compatible with Single, Double, Triple, and Quad Action ALX Riptide Diffusers. It securely integrates into the Receiver of these diffuser units for comprehensive flow testing.

What material is the Riptide ALX Pitotless Waterway made from?

The Riptide ALX Pitotless Waterway 1 1/8 inch is constructed from durable aluminum. This ensures a robust and long-lasting component suitable for demanding fire safety applications.

Are there any specific safety precautions when using this waterway?

Yes, always wear OSHA required PPE during operation. Do not flow water from the Pitotless Waterway if it is attached directly to a firehose but not secured within a Receiver affixed to a Riptide Diffuser.
