Additional Details

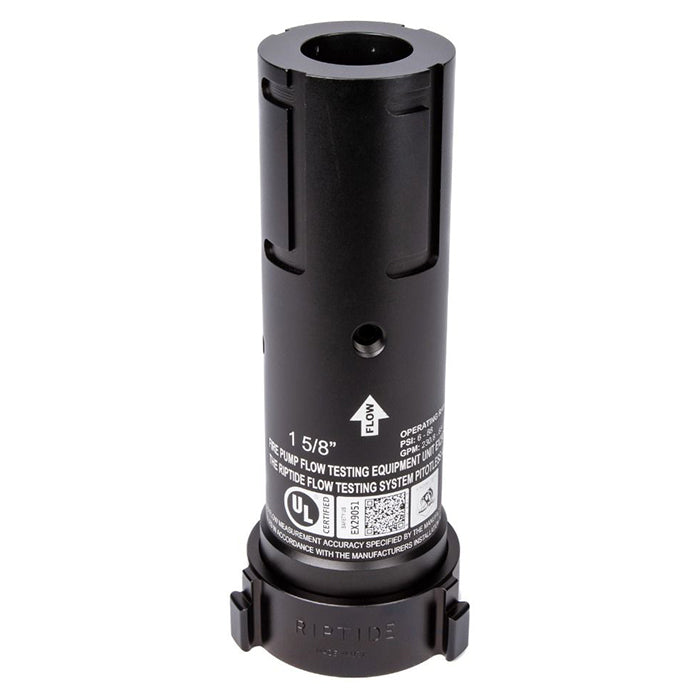

The RIPTIDE ALX Pitotless Waterway 1 5/8 inch is a specialized component for fire pump flow testing systems, designed to accurately measure medium flow rates by converting velocity pressure into a readable gauge pressure.
This Pitotless Waterway is UL Certified for use with the RIPTIDE Flow Testing System Pitotless ALX, ensuring precise performance in accordance with manufacturer installation instructions.
Features
- Pitotless design optimized for capturing lower flow rates.
- Part of the RIPTIDE Flow Testing System Pitotless ALX.
- All laboratory instrumentation used in its creation is ISO 17025 traceable.
- Readings are accurate to within +/-1.25%.
- UL Certified as Fire Pump Flow Testing Equipment (EX29051).
- Designed for even distribution of water when used with multiple waterways.
Use and Installation
- Connects to 2 1/2 inch diameter firehose.
- Requires proper assembly, use, and service according to the User Guide.
- Can be removed from the Receiver for flowing to atmosphere without diffusing. Do not remove a Waterway from a Receiver while actively flowing water.
The PITOTLESS ALX Diffuser comes with 1 7/8" Pitotless Waterways, this is a 1 5/8" replacement part for lower GPM testing(230.8 – 884.0) per waterway.
FAQs
What is the primary use of the RIPTIDE ALX Pitotless Waterway 1 5/8 inch?
The RIPTIDE ALX Pitotless Waterway 1 5/8 inch is designed for use in fire pump flow testing systems to accurately measure lower flow rates from fire apparatus. It converts velocity pressure into a readable gauge pressure.
What flow rate range can the 1 5/8 inch Pitotless Waterway measure?
This 1 5/8 inch Pitotless Waterway is capable of measuring a flow rate range from 230.8 GPM up to 884.0 GPM. This range is specifically calibrated for the Pitotless ALX system.
Is this RIPTIDE Pitotless Waterway certified for accuracy?
Yes, the RIPTIDE ALX Pitotless Waterway is UL Certified (EX29051) as Fire Pump Flow Testing Equipment. All laboratory instrumentation used for its flow chart creation is ISO 17025 traceable, with readings accurate to within +/- 1.25%.
What size hoses are compatible with this Pitotless Waterway?
The RIPTIDE ALX Pitotless Waterway 1 5/8 inch is designed to connect to a 2.50 inch diameter firehose.
Where is the RIPTIDE ALX Pitotless Waterway manufactured?
The RIPTIDE ALX Pitotless Waterway is Made in the USA.
Can this waterway be used independently of a RIPTIDE Diffuser?
Yes, for purposes of flowing to atmosphere without diffusing, the Waterway can be removed from the Receiver. However, it is important not to remove a Waterway from a Receiver while actively flowing water.
