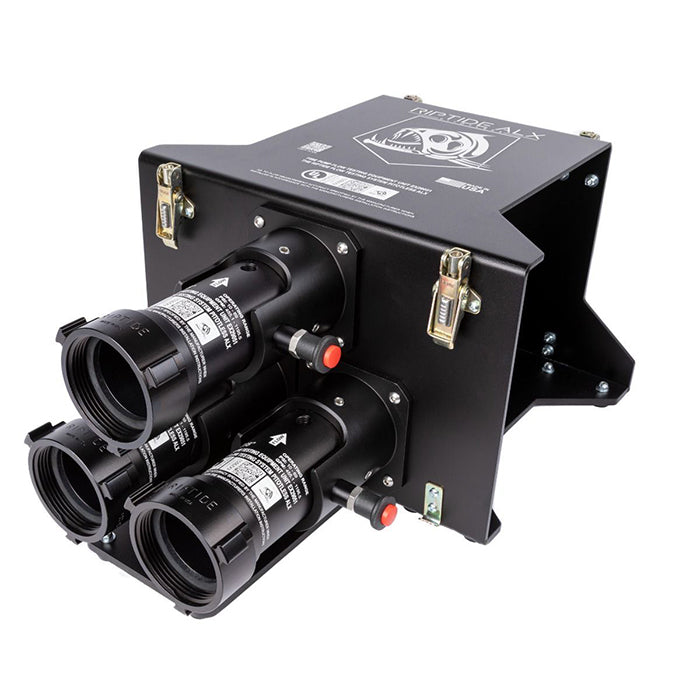

Riptide ALX Triple Action Water Pitotless Diffuser

Item Number: 6510967
  • Riptide ALX Triple Action Water Pitotless Diffuser
1 3
$4,702.51
$4,702.51
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping
  • Weight: 31.0 lb
  • Gauges NOT Included
  • Requires One Left Hand and Two Right Hand Gauges
  • Includes Three 1 7/8" Waterways
  • Made in the USA
  • Device Type: Pitotless Diffuser
  • Waterways: 3
  • Flow Rate Range: 455.1 – 1195.5 GPM per waterway
  • Construction Material: Aluminum
  • UL Certified: EX29051
  • Accuracy: +/- 1.25% (ISO 17025 traceable)
  • Flow Measurement: Multi-stream operation
  • Designed for: Fire pump and hydrant flow testing

Description

This Riptide ALX Triple Action Water Pitotless Diffuser is a specialized piece of UL Certified EX2901 equipment for fire pump flow testing. Designed for precision, this unit features three pitotless waterways compatible with both 2.50 inch firehoses. It enables controlled water discharge and accurate flow rate measurement for evaluating fire pump performance. While gauges are not included, the diffuser integrates pressure measurement ports for easy gauge attachment. This Made in the USA system ensures reliable operation, with recommended discharge rates of 455.1 to 1195.5 GPM per 1-7/8 inch waterway, making it essential for fire safety professionals.

Help Me Connect

  • Firehose Connection: The female ends of 2 1/2 inch diameter firehoses connect to the source being tested and into the Couplings on the Riptide Diffuser. Ensure connections are water tight.

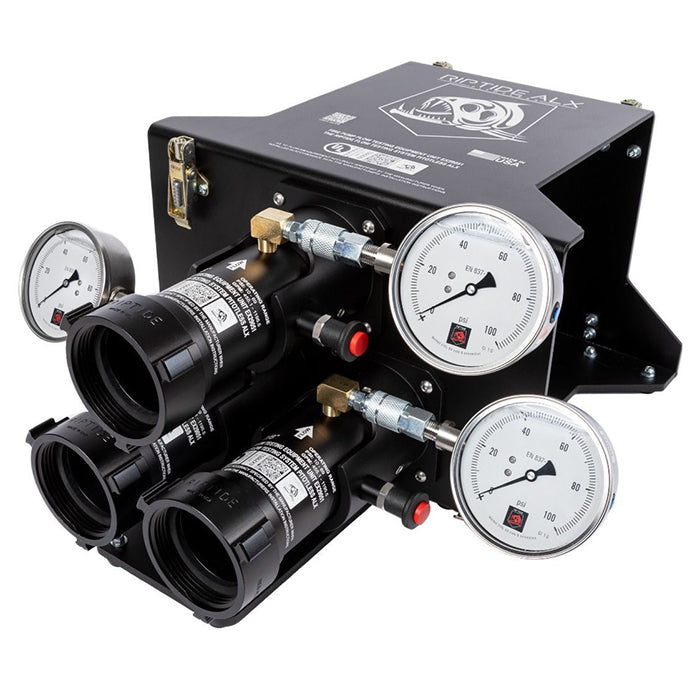

  • Gauge Connection: A gauge(not included) attaches to the pressure measurement port on each Waterway using the provided Street 90° Quick Connect configuration.

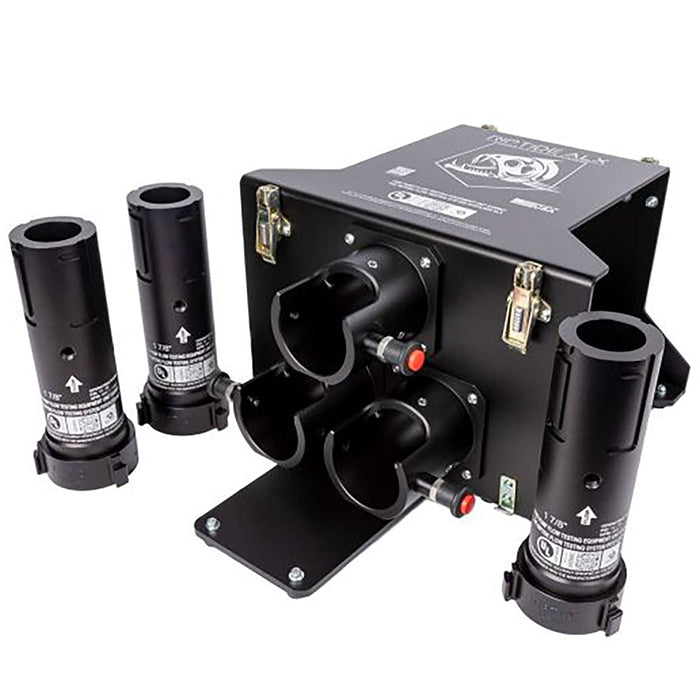

  • Waterway Installation: Each Waterway slides into its Receiver. To install, depress the Red Safety Button on the Pin Lock, pull the Black Knob away from the Waterway, slide the Waterway in, and twist clockwise until it stops and the Pin Lock engages. The pressure measurement port should point straight up.
  • Stacking and Compatibility: The Riptide ALX Pitotless Diffuser features an integrated stacking system, allowing for authorized stacking configurations with up to three Single Action Riptide diffusers or two of any other Riptide diffuser combination. Riptide ALX and Riptide Pitotless ALX diffusers may never be placed underneath a legacy steel Riptide when stacking.
View full details

Additional Details

The Riptide ALX Triple Action Water Pitotless Diffuser is a professional-grade flow testing system designed for fire safety professionals to accurately measure water flow from fire pumps and hydrants. This unit features three pitotless waterways for multi-stream operation.
Key Features
  • Designed for fire pump flow testing and hydrant flow testing applications.
  • Pitotless Waterways: Equipped with three waterways, allowing for simultaneous, independent flow measurement.
  • ALX Model: Constructed from aluminum for enhanced durability and lighter weight.
  • UL Certified: Certified by UL under EX29051, ensuring adherence to rigorous safety and performance standards.
  • Accurate Readings: Laboratory instrumentation used is ISO 17025 traceable, with readings accurate to within +/-1.25%.
  • Multi-Stream Operation: Allows for independent GPM readings from each waterway, which can be added together for total volume flowing.
  • Stacking Configurations: Can be used in authorized stacking configurations with other Riptide diffusers for increased testing capacity. Note: Riptide ALX and Riptide Pitotless ALX models must never be placed underneath a legacy steel Riptide when stacking.
  • Serviceable Components: Designed for easy replacement of components like couplings, receivers, and pin locks.
Safety Information
  • Always evaluate the condition of all equipment components (rubber feet, coupling gaskets, cam-locks, catches, nuts, screws) prior to use and replace any deficient components.
  • Ensure OSHA required PPE is worn at all times when operating this equipment.
  • Do not remove a Waterway from a Receiver while actively flowing water.


Specifications

Each Triple Action Riptide™ Diffuser comes with the following items:
  • Three 1 7/8" Waterways
  • 30 #8 Machine Screws
  • 30 Nylon Locking Nuts
  • 30 Washers
  • 10 Rubber Feet
  • 4 Cam-Locks
  • 4 Catches
  • 3 Quick Connect Assembly
  • 3 Street 90°

FAQs

What is the primary purpose of the Riptide ALX Triple Action Water Pitotless Diffuser?

This diffuser is designed for accurate fire pump flow testing, providing a controlled and safe method for discharging water during pump performance evaluations to ensure proper fire safety.

Are gauges included with the Riptide ALX Triple Action Water Pitotless Diffuser?

No, gauges are not included with the diffuser. However, it features integrated pressure measurement ports that allow for the attachment of compatible gauges for flow readings.

What firehose sizes can connect to this diffuser?

The Riptide ALX Triple Action Water Pitotless Diffuser is compatible with both 2.50 inch firehoses for various testing setups.

Is the Riptide ALX Triple Action Water Pitotless Diffuser UL Certified?

Yes, this diffuser is UL Certified under EX29051 as Fire Pump Flow Testing Equipment Unit for The Riptide Flow Testing System Pitotless ALX.

Can this diffuser be stacked with other Riptide units?

This Riptide ALX Pitotless Diffuser can be used in stacking configurations, but it is important to note that Riptide ALX and Pitotless ALX models must never be placed underneath a legacy steel Riptide when stacking. Refer to the manufacturer's authorized stacking configurations for details.

Where is this Riptide diffuser manufactured?

The Riptide ALX Triple Action Water Pitotless Diffuser is proudly Made in the USA.
