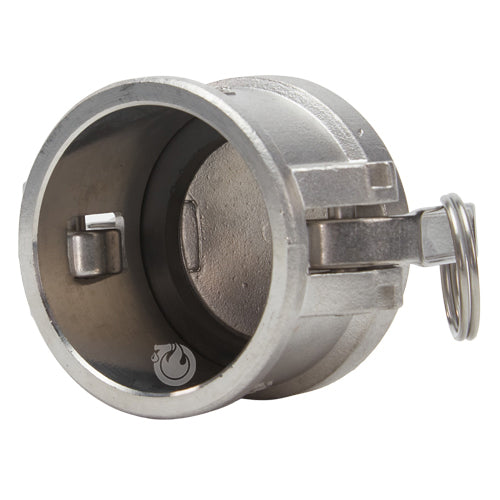

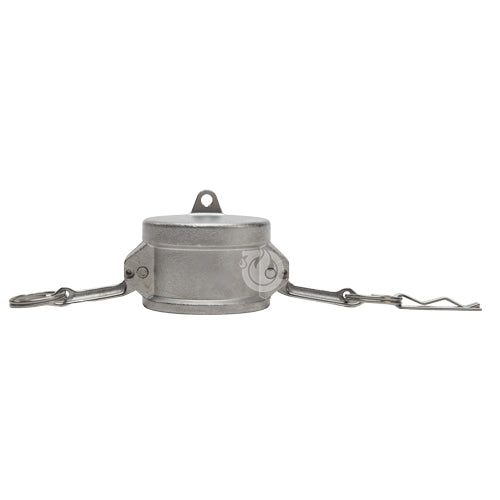

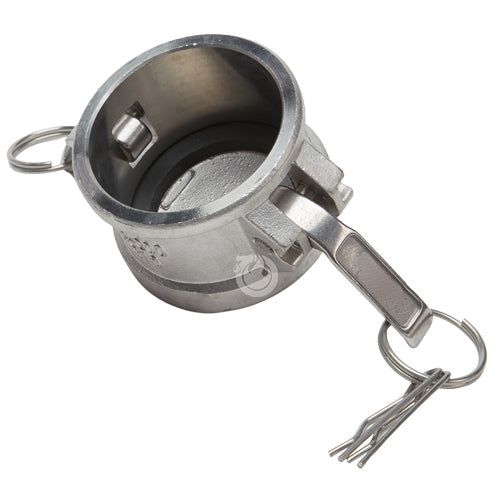

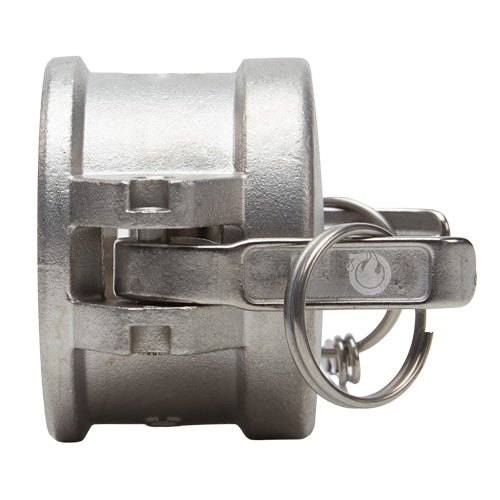

Stainless Steel 1 1/2" Camlock Female Dust Cap

Item Number: GS15DC
1 6
$27.65
$0.00 $27.65
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 1.07 lb
  • Body Material: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 1 1/2 inch Dust Cap
  • Maximum Operating Pressure: NONE
  • Seal: Buna
  • Type: "DC" Quick Disconnect

Description

This 316 Stainless Steel 1 1/2 inch Camlock Female Dust Cap offers robust protection for hose connections when not in use. Featuring a "DC" Quick Disconnect type and a Buna seal, it is designed for a secure fit on 1 1/2 inch male camlock fittings. The cap has a female inside diameter of 2 1/8 inches. Crafted from 316 Stainless Steel, it is suitable for diverse applications including salt water, waste water, various chemicals, hydraulic oil, and coolants. This dust cap is not for use in pressure applications for safety or environmental reasons.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Global type "DC" stainless steel 1 1/2 inch female camlock (Cam & Groove) dust cap. Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female camlock cap will only fit a 1 1/2 inch male camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

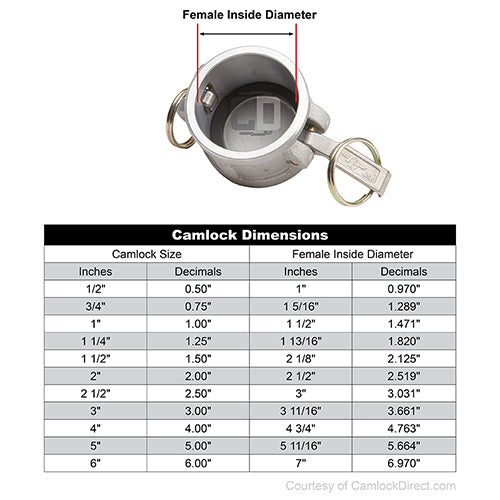

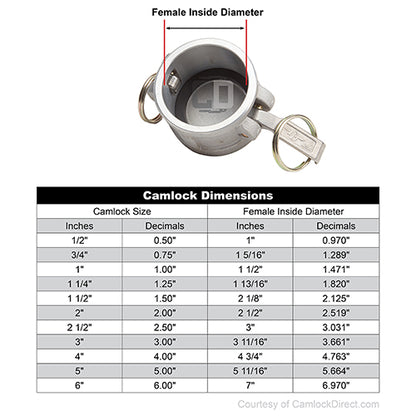

Female Camlock Dimensions

  • Size: 1 1/2 inches (1.50)
  • Female Inside Diameter: 2 1/8 inches (2.125)

Download Spec Sheet

FAQs

What is the primary function of this 1 1/2 inch camlock dust cap?

This "DC" Quick Disconnect dust cap is designed to protect hose connections from dust and debris when they are not in use. It is explicitly not for use in pressure applications for safety or environmental reasons.

What material is the 1 1/2 inch camlock dust cap constructed from?

The camlock dust cap is made from 316 Stainless Steel. This material provides durability and resistance suitable for various industrial applications.

What size male camlock fitting is compatible with this cap?

It is designed to connect exclusively to a 1 1/2 inch male camlock fitting.

What is the maximum operating pressure for this camlock dust cap?

The maximum operating pressure for this dust cap is 0. Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

What type of seal does this camlock cap use?

The camlock dust cap utilizes a Buna seal. This seal helps ensure a secure fit when connected to compatible male camlock fittings.

What applications is 316 Stainless Steel suitable for with this camlock cap?

316 Stainless Steel is recommended for use with salt water, waste water, many chemicals, hydraulic oil, and coolants. It offers versatility for various industrial environments.
