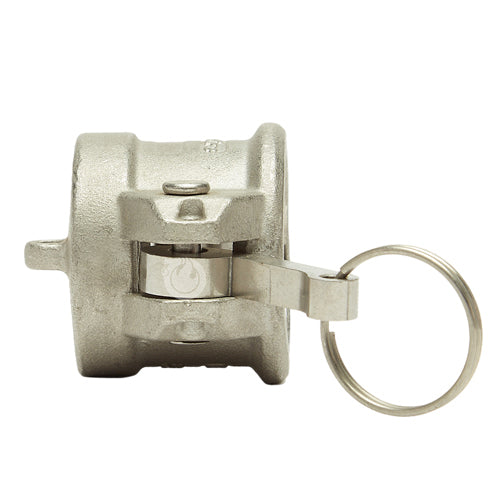

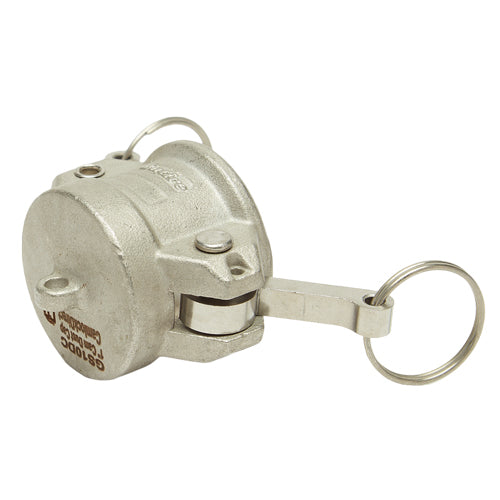

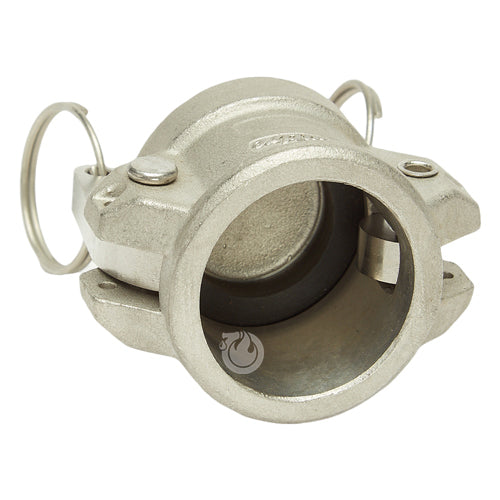

Stainless Steel 1" Camlock Female Dust Cap

Item Number: GS10DC
1 9
$17.10
$0.00 $17.10
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 0.45 lb
  • Body Material: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 1 inch Dust Cap
  • Maximum Operating Pressure: NONE
  • Seal: Buna
  • Type: "DC" Quick Disconnect

Description

This 316 Stainless Steel 1 inch Camlock Female Dust Cap ("DC" Quick Disconnect) provides a simple and economical way to cap a 1 inch male camlock connection, preventing entry of dust and debris. Featuring a Buna seal, it is designed for hose connections across various industries including chemical, petroleum, marine, and construction. The cap's stainless steel construction makes it suitable for use with salt water, waste water, chemicals, hydraulic oil, and coolants. It has a female inside diameter of 1 1/2 inches. This dust cap is not designed for use in pressure applications or for compressed air or steam service.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Global type "DC" stainless steel 1 inch female camlock (Cam & Groove) dust cap. Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Features

  • Finger rings are not supplied on 1/2 inch - 1 inch caps

Connections

  • The female camlock cap will only fit a 1 inch male camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

Female Camlock Dimensions

  • Size: 1 inch (1.00)
  • Female Inside Diameter: 1 1/2 inches (1.471)

Download Spec Sheet

FAQs

What is the primary purpose of this camlock dust cap?

This 316 Stainless Steel 1 inch Camlock Female Dust Cap is designed to cover a 1 inch male camlock connection, protecting it from dust and environmental debris. It provides a quick and simple way to cap a hose connection when not in use.

What materials is this camlock dust cap made from?

The body of this camlock dust cap is made from 316 Stainless Steel, and it features a Buna seal for effective sealing.

Can this 1 inch camlock cap be used in pressurized applications?

No, this camlock dust cap is explicitly not to be used in pressure applications, compressed air, or steam service for safety and environmental reasons.

What size male camlock fitting will this cap connect to?

This 1 inch female camlock cap is designed to connect only to a 1 inch male camlock fitting. Its female inside diameter is 1 1/2 inches.

What specific applications are suitable for the 316 Stainless Steel material of this cap?

The 316 Stainless Steel construction is suitable for use with salt water, waste water, many chemicals, hydraulic oil, and coolants. This makes it ideal for industries like chemical, marine, and sanitary.

Does this camlock dust cap include finger rings?

Finger rings may not be supplied on 1/2 inch through 1 inch caps.
