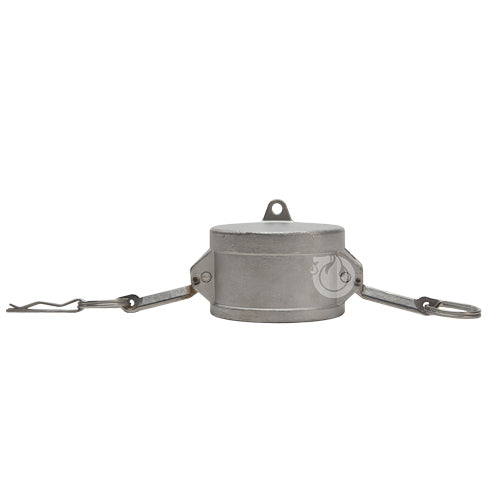

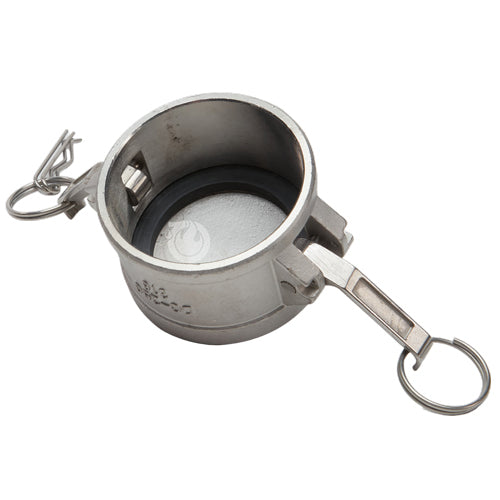

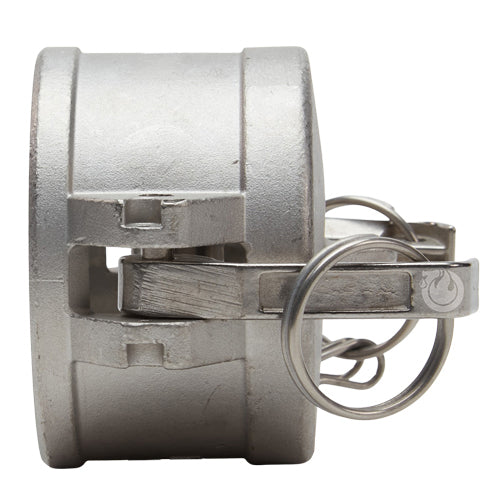

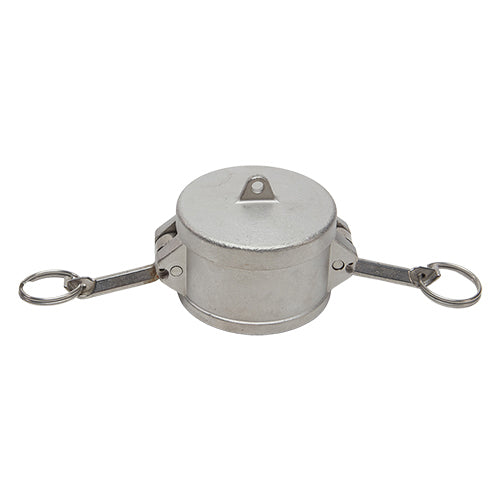

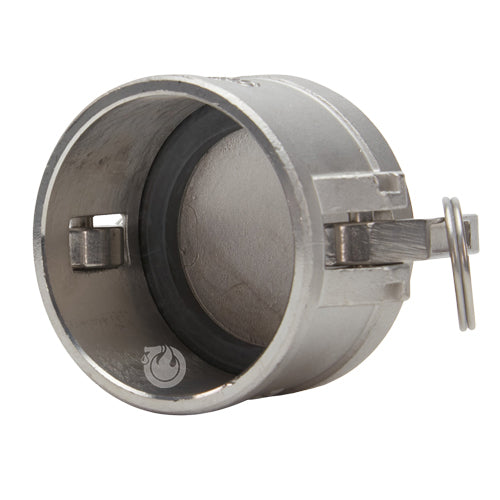

Stainless Steel 2 1/2" Camlock Female Dust Cap

Item Number: GS25DC
1 6
$43.91
$0.00 $43.91
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 1.73 lb
  • Body Materia: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 2 1/2 inch Dust Cap
  • Maximum Operating Pressure: NONE
  • Seal: Buna
  • Type: "DC" Quick Disconnect

Description

This 2 1/2 inch "DC" type quick disconnect female camlock dust cap is constructed from 316 Stainless Steel with a Buna seal, designed to protect unused camlock fittings from dust and debris. It features a female camlock end that connects exclusively to a 2 1/2 inch male camlock. The cap has a female inside diameter of 3 inches (3.031). It is suitable for applications involving salt water, waste water, and various chemicals, but it is important to note that this dust cap is not rated for pressure applications, compressed air, or steam service.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Global type "DC" stainless steel 2 1/2 inch female camlock (Cam & Groove) dust cap. Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female camlock cap will only fit a 2 1/2 inch male camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

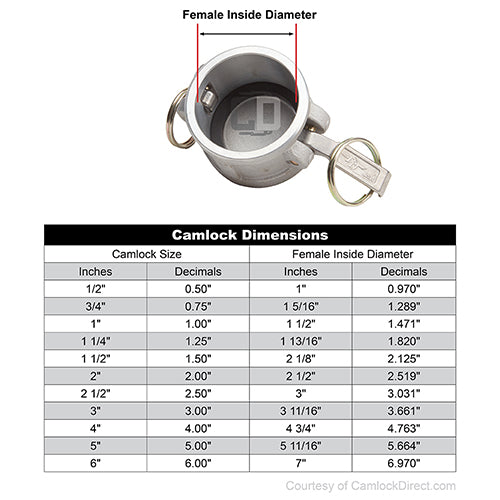

Female Camlock Dimensions

  • Size: 2 1/2 inches (2.50)
  • Female Inside Diameter: 3 inches (3.031)

Download Spec Sheet

FAQs

What is the primary function of the 2 1/2 inch camlock dust cap?

This "DC" type female camlock dust cap is designed to protect male camlock fittings from dust and debris when not in use. It is strictly not intended for use in any pressure applications.

What materials are used to construct this camlock dust cap?

The body of the camlock dust cap is made from 316 Stainless Steel, providing durability and chemical resistance. It features a Buna seal for a secure fit.

What size camlock fitting is compatible with this female dust cap?

This 2 1/2 inch female camlock dust cap is designed to connect exclusively with a 2 1/2 inch male camlock fitting.

Can this dust cap be used for applications under pressure?

No, this camlock dust cap is explicitly not to be used in pressure applications, compressed air, or steam service due to safety and environmental reasons. It serves solely as a dust and debris protector.

What is the female inside diameter of this 2 1/2 inch camlock cap?

The female inside diameter of this camlock dust cap measures 3 inches (3.031).
