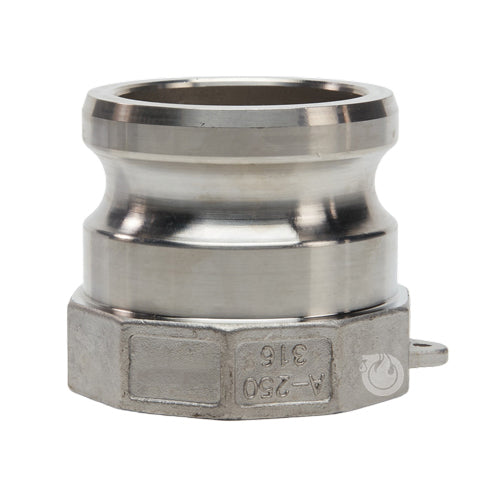

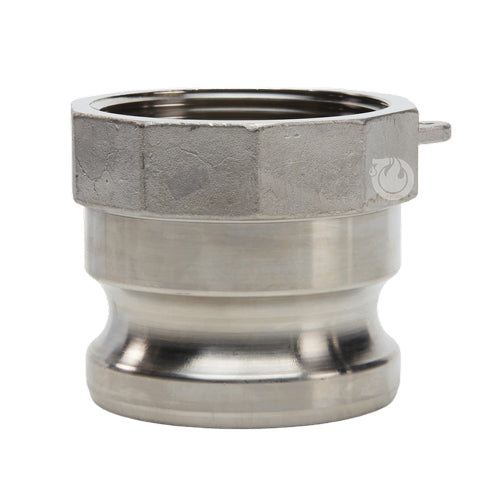

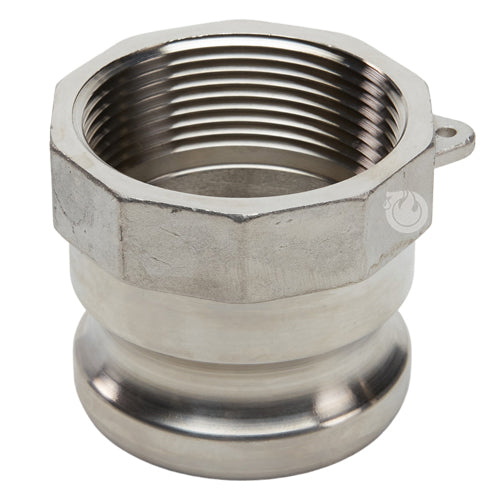

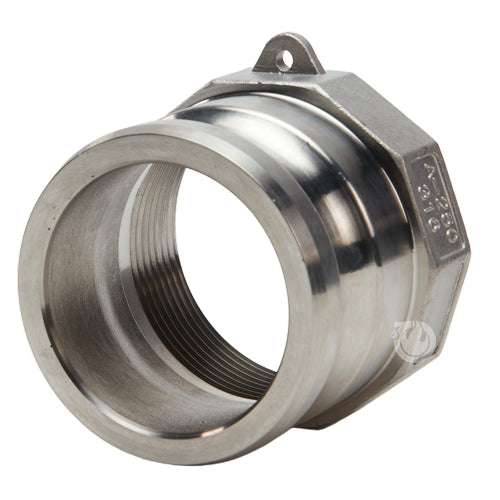

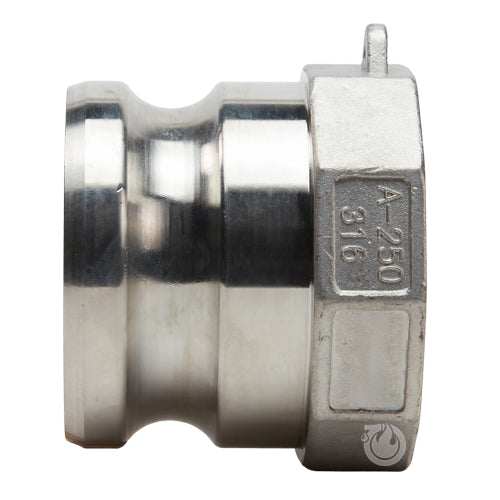

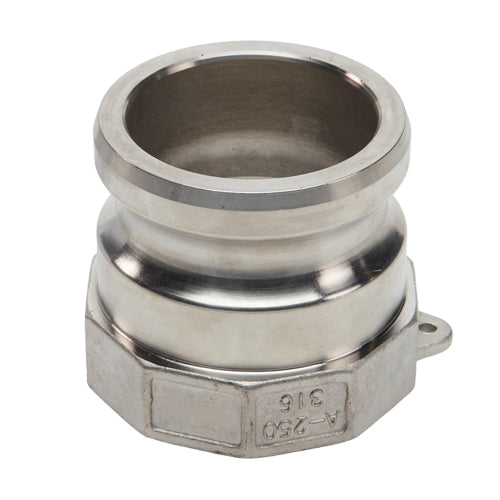

Stainless Steel 2 1/2" Male Camlock x 2 1/2" Female NPT

Item Number: GS25M25FN
1 7
$45.95
$0.00 $45.95
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 1.65 lb
  • Body Material: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 2 1/2 inch Male
  • Threaded Size: 2 1/2 inch Female NPT
  • Maximum Operating Pressure: 150 PSI
  • Type: "A" Quick Disconnect

Description

This Type "A" quick disconnect adapter is a 2 1/2 inch male camlock (Cam & Groove) coupler to a 2 1/2 inch female NPT thread, designed for rapid connection and disconnection of hoses. Constructed from durable 316 Stainless Steel, it features a maximum operating pressure of 150 PSI. This adapter is compatible with salt water, waste water, various chemicals, hydraulic oil, and coolants, making it suitable for industries such as chemical, petroleum, marine, and construction. It is essential not to use this cam and groove coupling for compressed air or steam service.

Help Me Connect

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Global type "A" stainless steel 2 1/2 inch male camlock (Cam & Groove) coupler to 2 1/2 inch female NPT threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The male side of this adapter will only connect to 2 1/2 inch female camlock
  • The female threaded side of this adapter will only connect to a 2 1/2 inch male National Pipe Tapered (NPT) thread, for example, PVC or metal pipe fitting

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

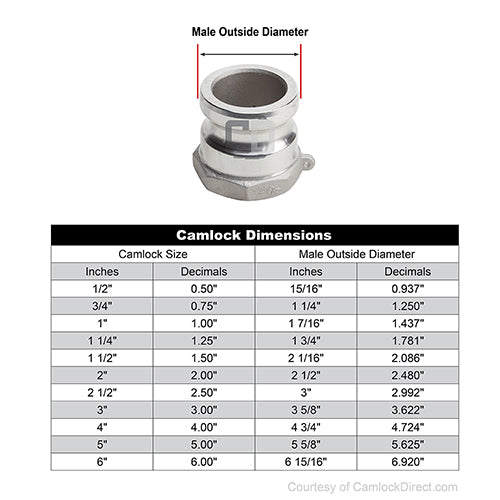

Male Camlock Dimensions

  • Size: 2 1/2 inches (2.50)
  • Male Outside Diameter: 3 inches (2.992)

Download Spec Sheet

FAQs

What material is this camlock adapter made from?

This camlock adapter is constructed from 316 Stainless Steel, which is suitable for use with salt water, waste water, many chemicals, hydraulic oil, and coolants.

What are the dimensions of the camlock and threaded connections?

It features a 2 1/2 inch male camlock connection and a 2 1/2 inch female National Pipe Tapered (NPT) thread. The male camlock has an outside diameter of 3 inches.

What is the maximum operating pressure for this fitting?

The maximum operating pressure for this 316 Stainless Steel 2 1/2 inch camlock adapter is 150 PSI.

What types of connections can this adapter make?

The male camlock side will connect only to a female camlock, while the female NPT threaded side will connect only to a male National Pipe Tapered (NPT) thread, such as a PVC or metal pipe fitting.

Can this cam and groove coupling be used for compressed air or steam?

No, cam and groove couplings should under no circumstances be used for compressed air or steam service due to safety concerns.

How is this adapter connected and disconnected?

To connect, simply slide the adapter into the camlock coupling and press the cam levers down with normal hand pressure. To disconnect, lift the cam arms and remove the adapter quickly and simply.
