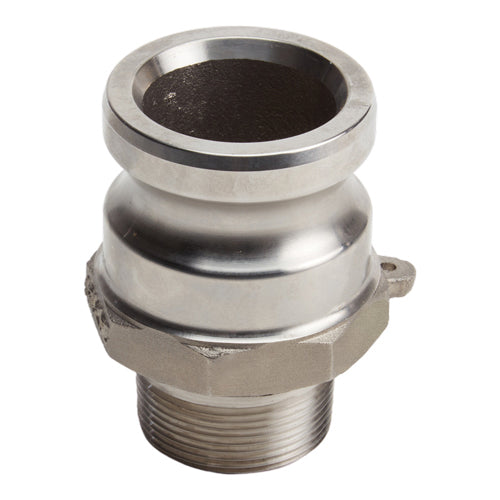

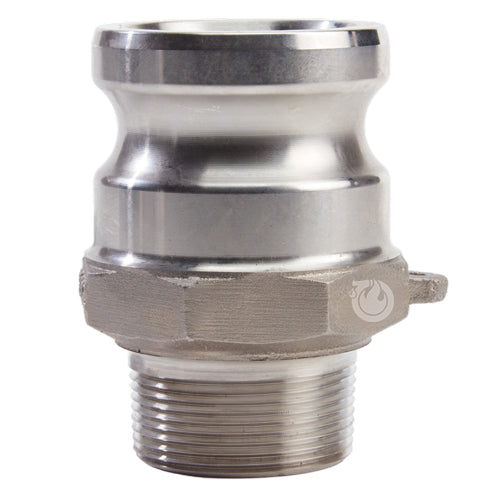

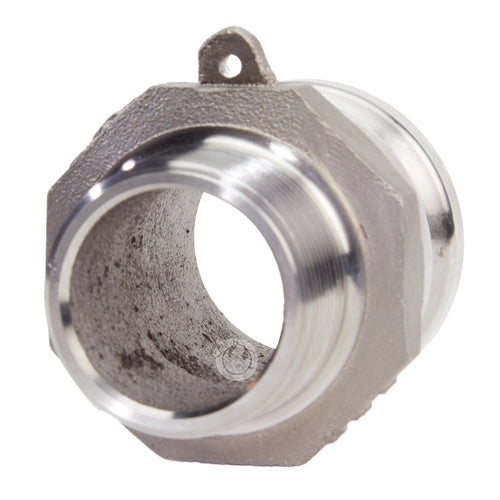

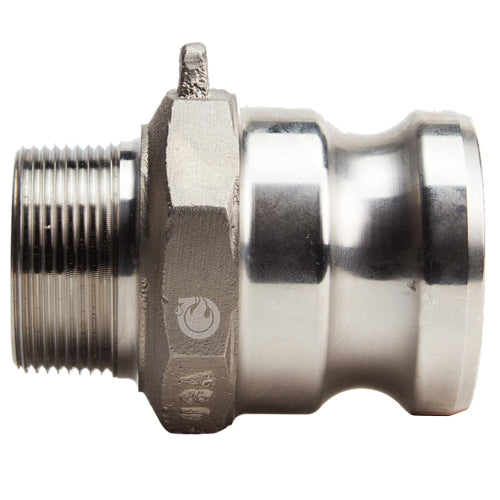

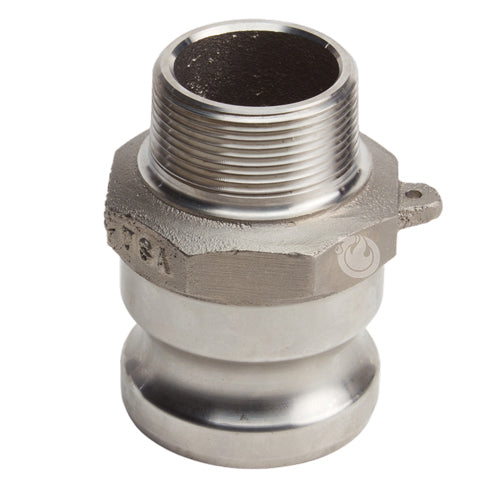

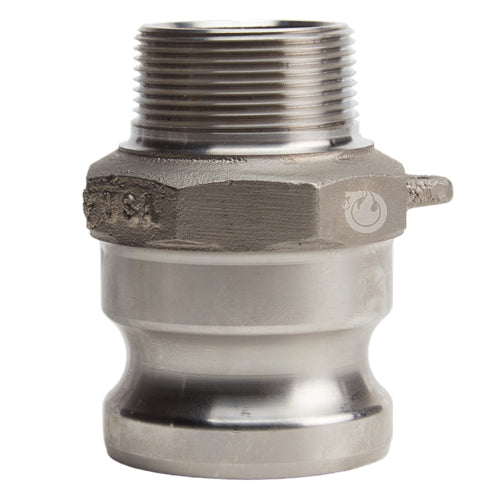

Stainless Steel 2" Camlock Male x 1 1/2" NPT Male (USA)

  • Stainless Steel 2" Camlock Male x 1 1/2" NPT Male (USA)
1 7
Price: $113.08
$0.00 $113.08
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 21, 2024


Item Number: DS20M15MN
Weight: 2.45 lb
  • Made In USA
  • Body Material: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 2 inch Male
  • Threaded Size: 1 1/2 inch Male NPT
  • Maximum Operating Pressure: 250 PSI
  • Type: "F" Quick Disconnect
View full details

Description

Type "F" stainless steel 2 inch male camlock (Cam & Groove) coupler to 1 1/2 inch male NPT threads. Designed to interchange with all products produced to MIL-C-27487F. Pressure rating for adapters, is based on the seal of the mating part.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The male side of this adapter will only connect to 2 inch female camlock
  • The male threaded side of this adapter will only connect to a 1 1/2 inch female National Pipe Straight Hose (NPSH) or National Pipe Tapered (NPT), for example, PVC or metal pipe fitting

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Wine
  • Food
  • Drugs
  • Reverse osmosis systems
  • Water treatment
  • Water transport
  • Irrigation
  • Waste / vacuum trucks
  • Fuel delivery
  • Grain movement
  • Hydraulic oil, coolants, gasoline and petroleum products
  • Bio-fuel
  • Salt water
  • Waste water
  • Chemical movement & storage
  • Sand
  • Grout
  • Cement
  • Varnish
  • Flour
  • Pellets

Specifications

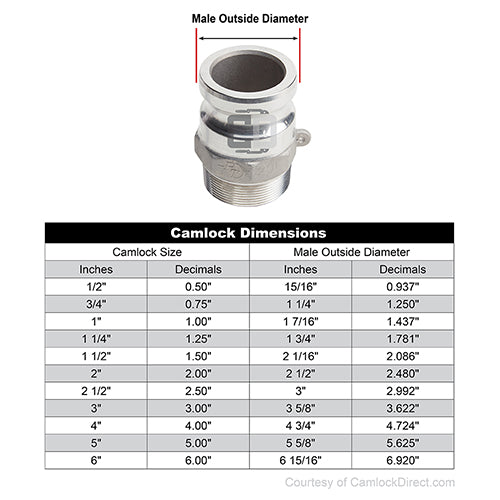

Male Camlock Dimensions

  • Size: 2 inches (2.00)
  • Male Outside Diameter: 2 1/2 inches (2.480)

Download Spec Sheet

Help Me Connect

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
