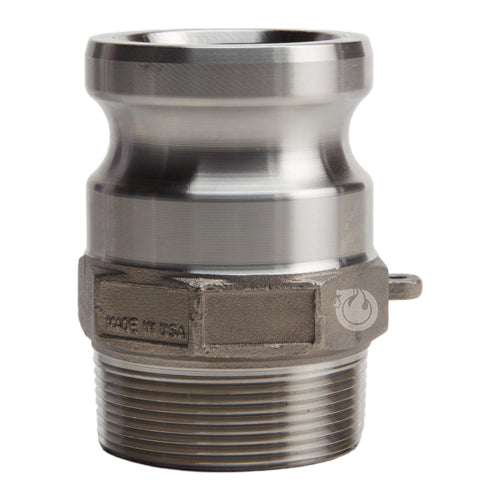

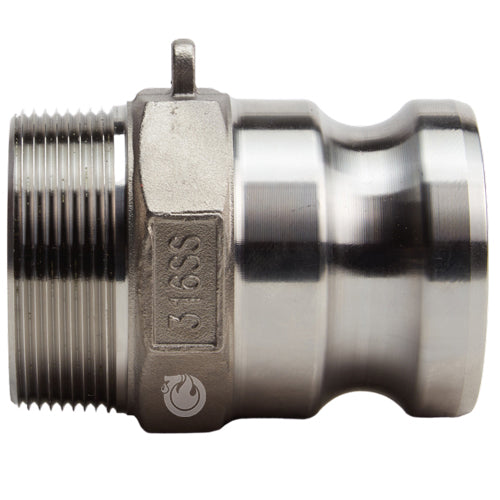

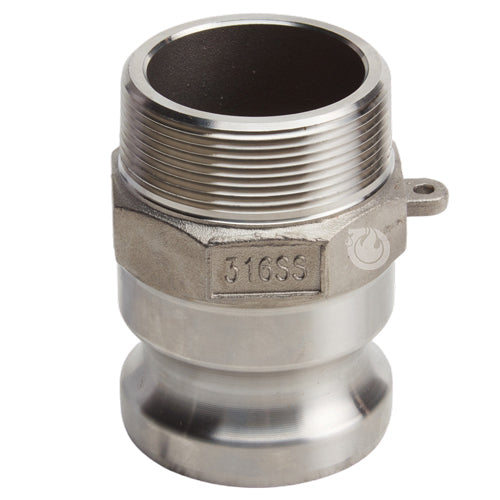

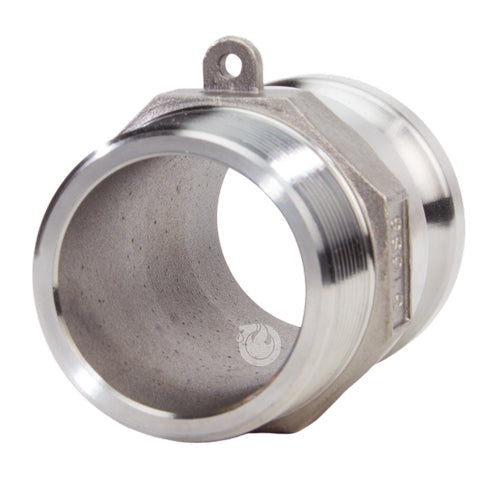

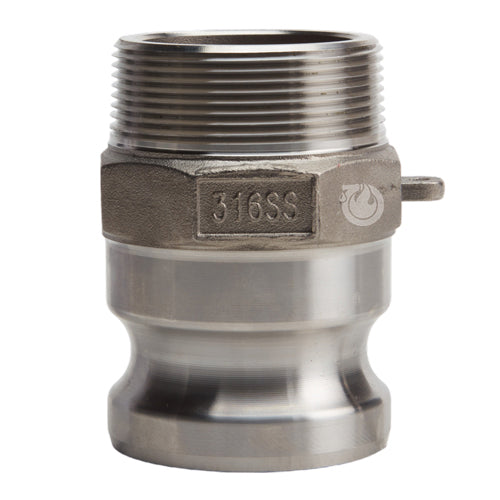

Stainless Steel 2" Male Camlock x 2" Male BSP (USA)

Skip to product information
1 of 7
Regular price Price: $88.87
Regular price $0.00 Sale price $88.87
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Estimated Apr 18, 2024

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Oct 14, 2024


Item Number: DS20M20MB
Weight: 0.73 lb
  • Made In USA
  • Body Material - 316 Stainless Steel
  • Camlock (Cam & Groove) Size - 2 inch Male
  • Threaded Size - 2 inch Male BSP
  • The Male Will Only Connect to a Female 2 inch BSP
  • Maximum Operating Pressure - 250 PSI
  • Type - "F" Quick Disconnect
  • Seal - Thread Compound
View full details

Collapsible content

Description

Global type "F" stainless steel 2 inch male camlock (Cam & Groove) coupler to 2 inch male BSP threads. Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

The male side of this adapter will only connect to 2 inch female camlock. The male threaded side of this adapter will only connect to a 2 inch female British Standard Pipe (BSP).

British Standard Pipe (BSP) can be most commonly found in Canada, UK, Europe, Asia and Australia. It is a finer thread than National Pipe Thread (NPT), and will not seal properly if used in conjunction with it.

Two types of threads are used

  • British Standard Pipe Taper (BSPT) and British Standard Pipe Parallel (BSPP). British Standard Pipe Taper uses a tapered thread system, and sealant is provided to help secure the male and female connection
  • British Standard Pipe Parallel uses a parallel thread system, and a rubber gasket is often included to secure the male and female connection

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Wine
  • Food
  • Drugs
  • Reverse osmosis systems
  • Water treatment
  • Water transport
  • Irrigation
  • Waste / vacuum trucks
  • Fuel delivery
  • Grain movement
  • Hydraulic oil, coolants, gasoline and petroleum products
  • Bio-fuel
  • Salt water
  • Waste water
  • Chemical movement & storage
  • Sand
  • Grout
  • Cement
  • Varnish
  • Flour
  • Pellets

Specifications

  • Outside Diameter of a Male Camlock - 2 1/2 inches (2.480)
  • Outside Diameter of a Male 2 inch BSP Adapter - 2 3/8 inches (11 Threads per inch)

Download Spec Sheet

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
