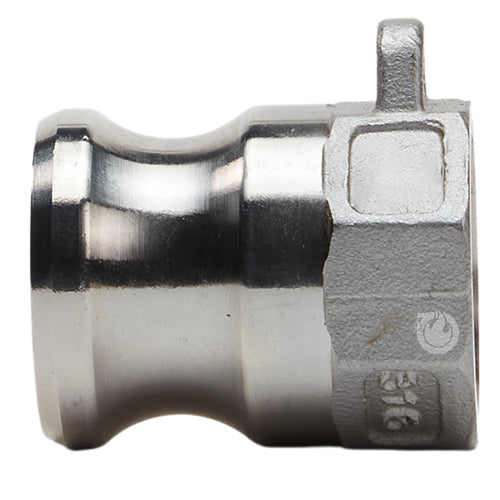

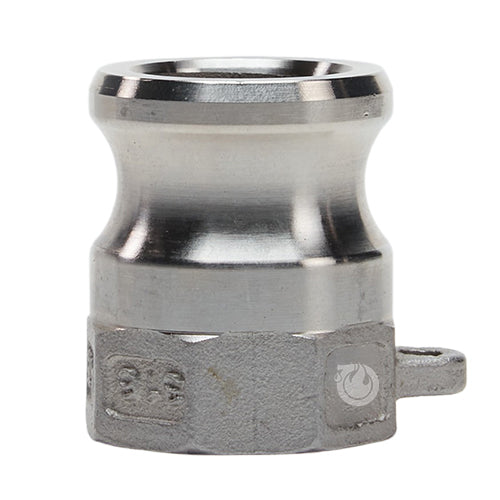

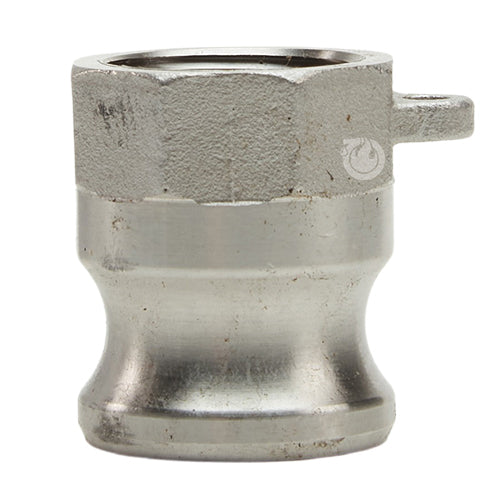

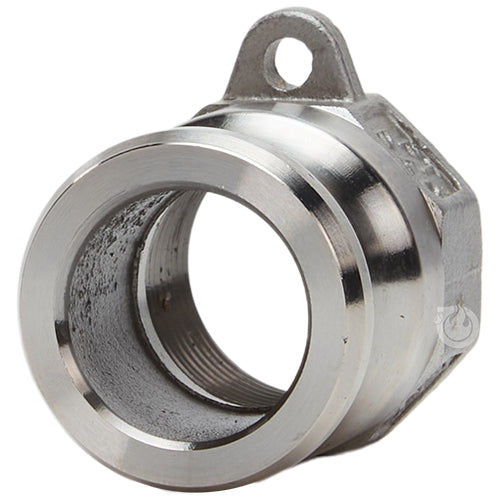

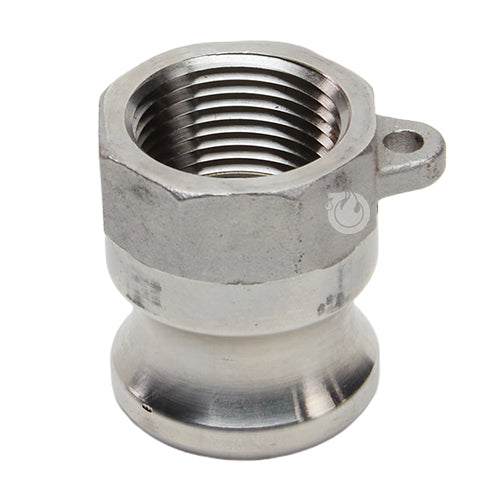

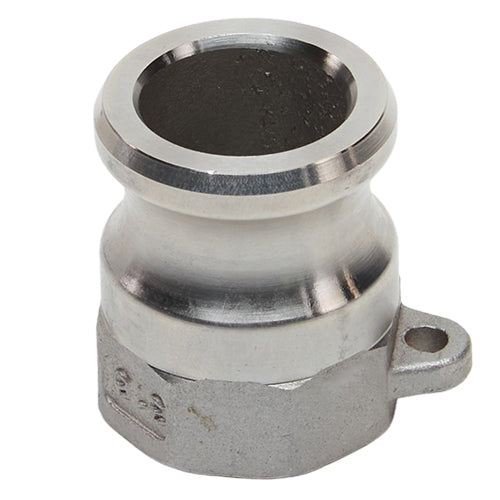

Stainless Steel 3/4" Male Camlock x 3/4" Female NPT

Item Number: GS07M07FN
1 7
$11.87
$0.00 $11.87
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 0.24 lb
  • Body Material: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 3/4 inch Male
  • Threaded Size: 3/4 inch Female NPT
  • Maximum Operating Pressure: 250 PSI
  • Type: "A" Quick Disconnect

Description

This Stainless Steel 3/4 inch Male Camlock x 3/4 inch Female NPT adapter is a Type "A" quick disconnect coupling for efficient hose connections. Constructed from durable 316 Stainless Steel, it features a 3/4 inch male camlock (Cam & Groove) end that connects to female camlocks and a 3/4 inch female NPT threaded end for male National Pipe Tapered fittings. Designed for use with salt water, waste water, and various chemicals, this adapter supports a maximum operating pressure of 250 PSI, providing a simple and economical solution for fluid transfer across diverse industrial applications.

Help Me Connect

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Global type "A" stainless steel 3/4 inch male camlock (Cam & Groove) coupler to 3/4 inch female NPT threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The male side of this adapter will only connect to 3/4 inch female camlock
  • The female threaded side of this adapter will only connect to a 3/4 inch male National Pipe Tapered (NPT) thread, for example, PVC or metal pipe fitting

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products

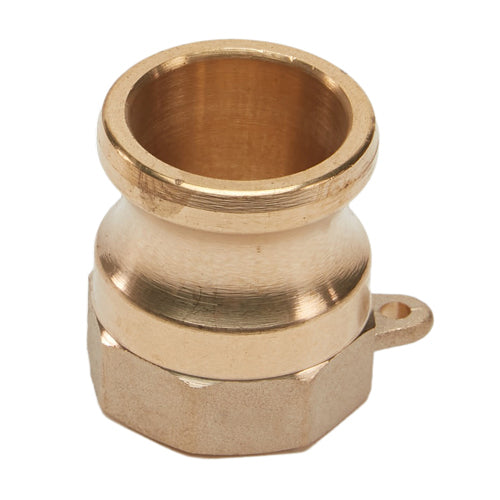

  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

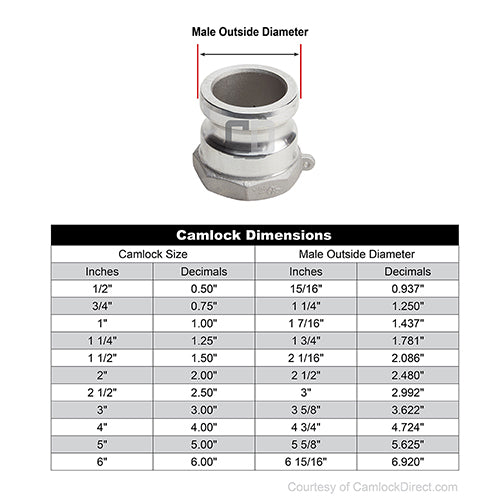

Male Camlock Dimensions

  • Size: 3/4 inch (0.75)
  • Male Outside Diameter: 1 1/4 inches (1.250)

Download Spec Sheet

FAQs

What are the connection types and sizes for this adapter?

The adapter features a 3/4 inch male camlock (Cam & Groove) on one side, which connects to a 3/4 inch female camlock. The other side has a 3/4 inch female National Pipe Tapered (NPT) thread, designed for connection to a 3/4 inch male NPT thread.

What material is this camlock adapter made from?

This adapter is constructed from 316 Stainless Steel, making it suitable for applications involving salt water, waste water, hydraulic oil, coolants, and many chemicals.

What is the maximum operating pressure for this adapter?

This 316 Stainless Steel adapter has a maximum operating pressure rating of 250 PSI.

Can this camlock coupling be used for compressed air or steam?

No, cam and groove couplings, including this adapter, should never be used for compressed air or steam service under any circumstances.

How does the quick disconnect camlock mechanism work?

To connect, simply slide the adapter into the mating camlock coupling and with normal hand pressure, press the cam levers down. To uncouple, just lift the cam arms and remove the adapter.
