Stainless Steel 3" Male Camlock x 3" Female BSP

  • Stainless Steel 3" Male Camlock x 3" Female BSP (USA)
1 6
Price: $123.33
$0.00 $123.33
Sale Sold out

Stock Level: 7

Product Status: Limited Stock

When Will it Ship:

Shipping Cost: Free Shipping

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 21, 2024


Item Number: GS30M30FB
Weight: 2.32 lb
  • Body Material: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 3 inch Male
  • Threaded Size: 3 inch Female BSP (No Gasket)
  • The Female will only Connect to a Male 3 inch BSP
  • Maximum Operating Pressure: 125 PSI
  • Type: "A" Quick Disconnect
  • Seal: Thread Compound
View full details

Description

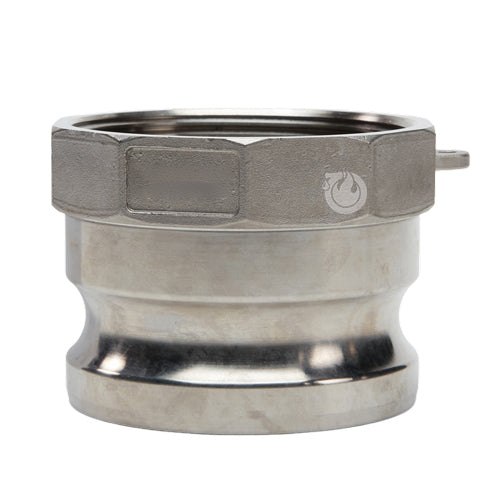

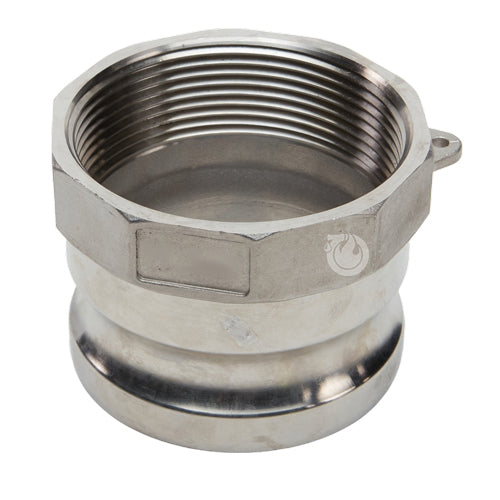

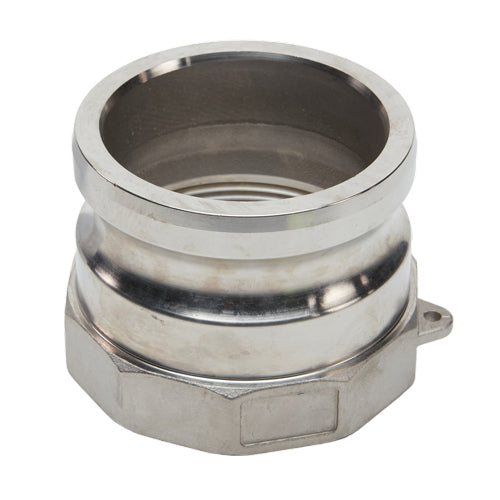

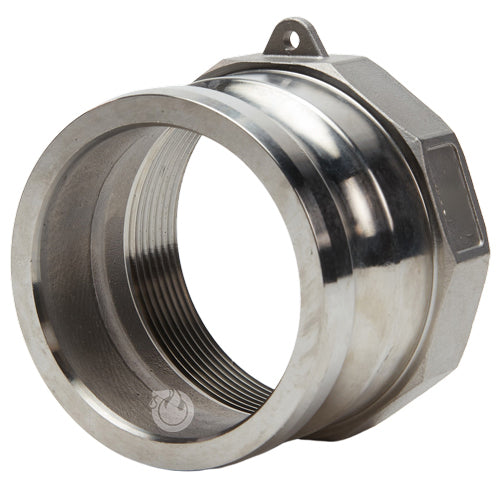

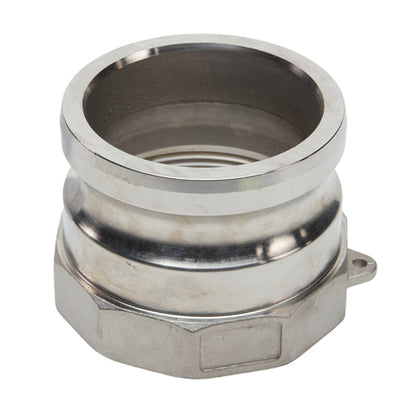

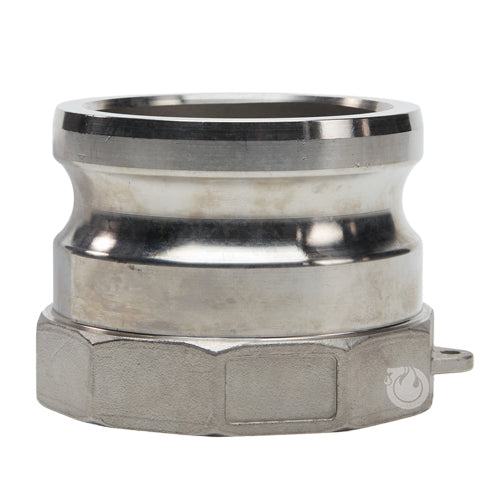

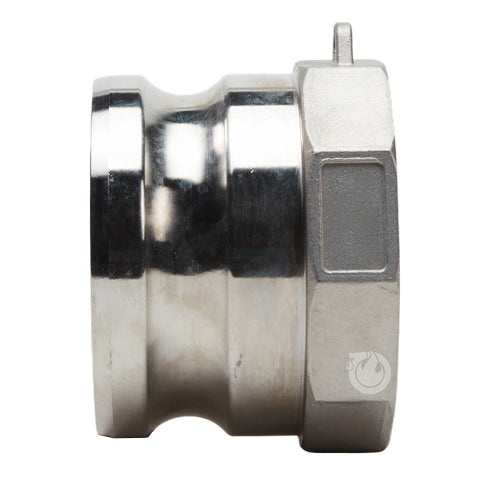

Global type "A" stainless steel 3 inch male camlock (Cam & Groove) coupler to 3 inch female BSP threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The male side of this adapter will only connect to 3 inch female camlock
  • The female threaded side of this adapter will only connect to a 3 inch male British Standard Pipe (BSP) Thread

British Standard Pipe (BSP) can be most commonly found in Canada, UK, Europe, Asia and Australia. It is a finer thread than National Pipe Thread (NPT), and will not seal properly if used in conjunction with it.

Two types of threads are used

  • British Standard Pipe Taper (BSPT) and British Standard Pipe Parallel (BSPP). British Standard Pipe Taper uses a tapered thread system, and sealant is provided to help secure the male and female connection
  • British Standard Pipe Parallel uses a parallel thread system, and a rubber gasket is often included to secure the male and female connection

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Wine
  • Food
  • Drugs
  • Reverse osmosis systems
  • Water treatment
  • Water transport
  • Irrigation
  • Waste / vacuum trucks
  • Fuel delivery
  • Grain movement
  • Hydraulic oil, coolants, gasoline and petroleum products
  • Bio-fuel
  • Salt water
  • Waste water
  • Chemical movement & storage
  • Sand
  • Grout
  • Cement
  • Varnish
  • Flour
  • Pellets



Specifications

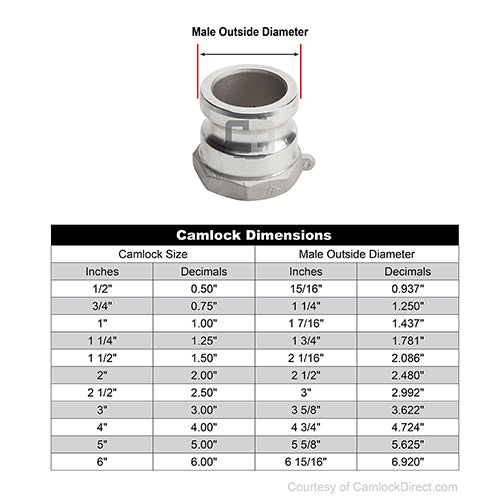

Male Camlock Dimensions

  • Outside Diameter of a Male Camlock: 3 5/8 inches (3.622)
  • Outside Diameter of a Male 3 inch BSP Adapter: 3 1/2 inches (3.46) - 11 Threads per inch

Download Spec Sheet
