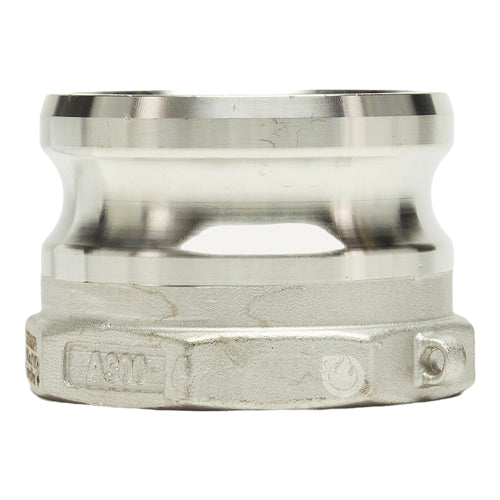

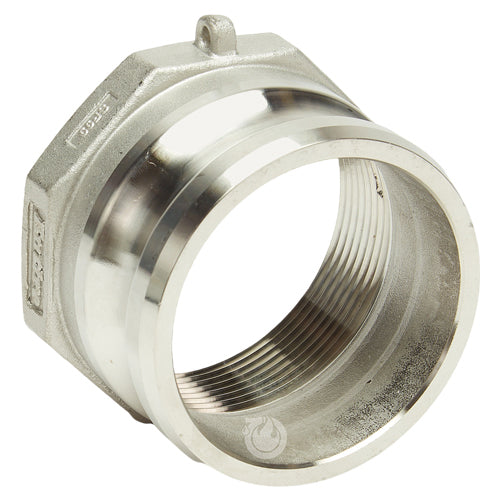

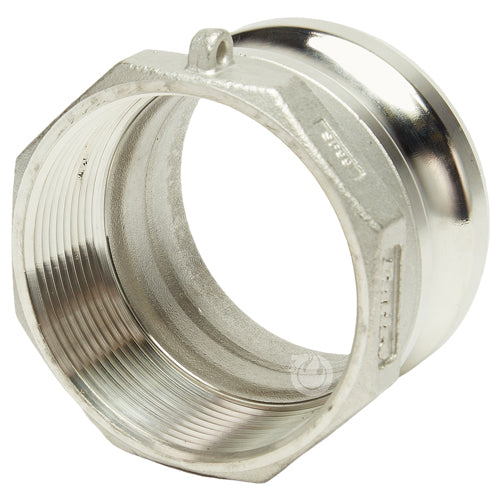

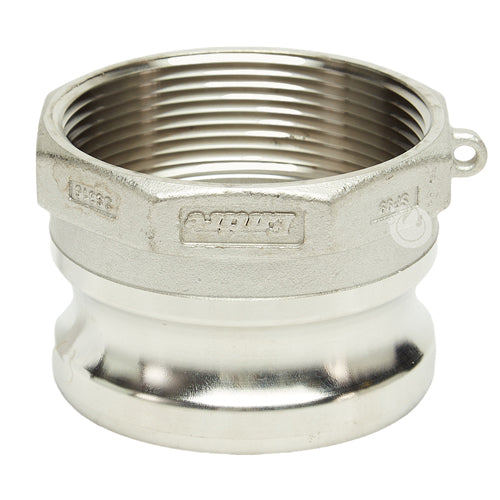

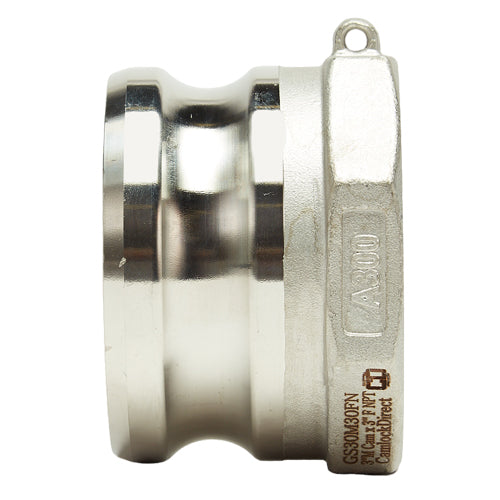

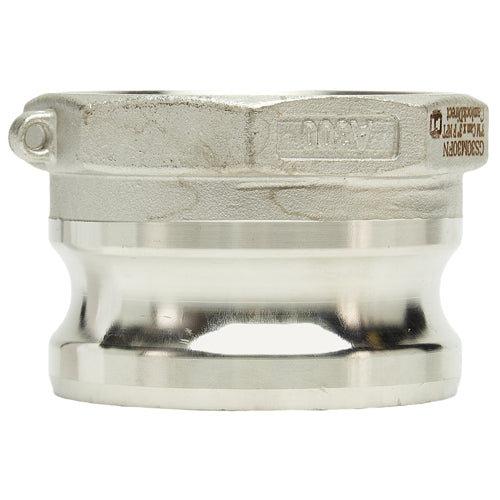

Stainless Steel 3" Male Camlock x 3" Female NPT

Item Number: GS30M30FN
1 8
$41.67
$0.00 $41.67
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 2.3 lb
  • Body Material: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 3 inch Male
  • Threaded Size: 3 inch Female NPT
  • Maximum Operating Pressure: 125 PSI
  • Type: "A" Quick Disconnect

Description

This Type "A" 316 Stainless Steel adapter features a 3 inch male camlock (Cam & Groove) coupler to a 3 inch female NPT thread. Designed for quick disconnection, it connects male NPT threads to female camlock fittings. With a maximum operating pressure of 125 PSI, it is suitable for salt water, waste water, various chemicals, hydraulic oil, and coolants in industrial applications such as construction and chemical sectors. This fitting is not to be used with compressed air or steam.

Help Me Connect

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Global type "A" stainless steel 3 inch male camlock (Cam & Groove) coupler to 3 inch female NPT threads.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The male side of this adapter will only connect to 3 inch female camlock
  • The female threaded side of this adapter will only connect to a 3 inch male National Pipe Tapered (NPT) thread, for example, PVC or metal pipe fitting

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

Male Camlock Dimensions

  • Size: 3 inches (3.00)
  • Male Outside Diameter: 3 5/8 inches (3.622)

Download Spec Sheet

FAQs

What material is this camlock adapter made from?

This adapter is constructed from 316 Stainless Steel.

What are the connection sizes and types of this adapter?

It features a 3 inch male camlock and a 3 inch female NPT thread.

What is the maximum operating pressure for this adapter?

The maximum operating pressure for this adapter is 125 PSI.

What specific fluids or applications is this stainless steel adapter suitable for?

This stainless steel adapter is suitable for use with salt water, waste water, many chemicals, hydraulic oil, and coolants.

Can this camlock coupling be used for compressed air or steam?

No, under no circumstances should cam and groove couplings be used for compressed air or steam service.

How does one connect or disconnect using this camlock adapter?

To connect, simply slide the adapter into the camlock coupling and with normal hand pressure, press the cam levers down. Uncoupling is done by lifting the cam arms and removing the adapter.
