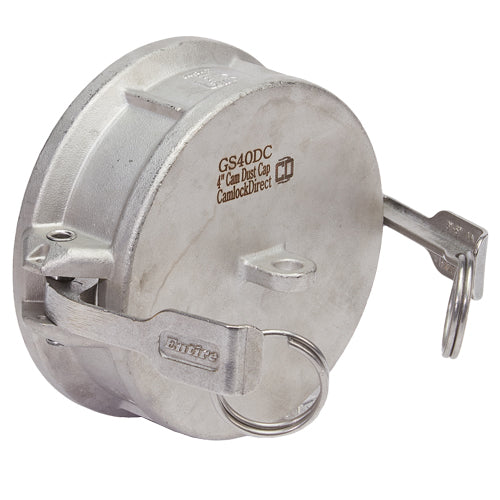

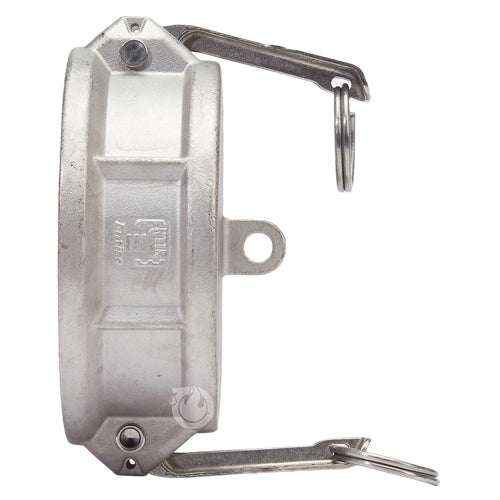

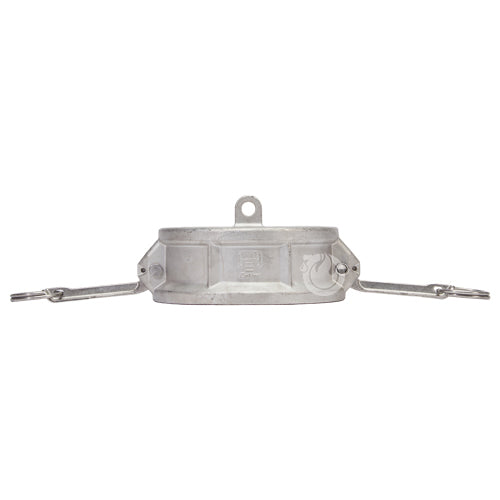

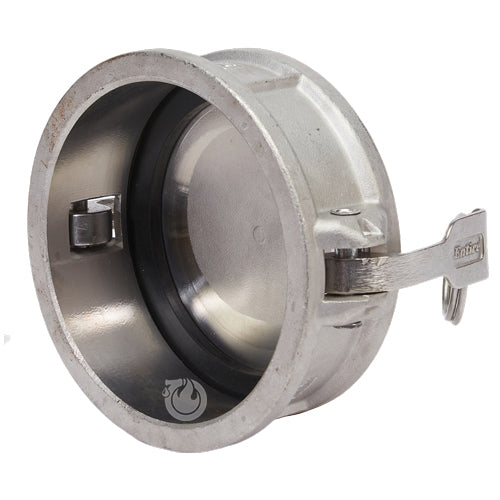

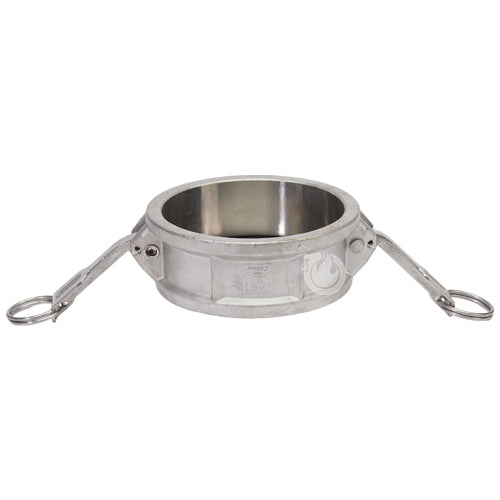

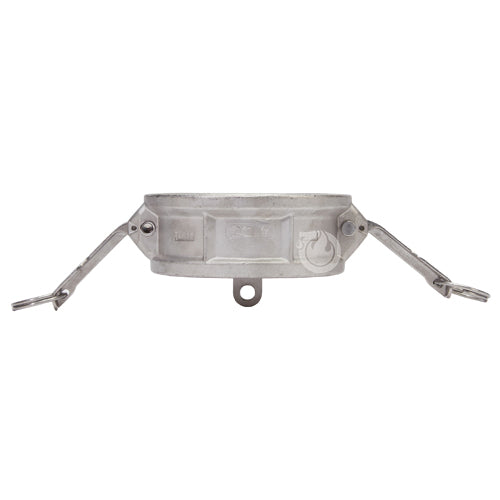

Stainless Steel 4" Camlock Female Dust Cap

Item Number: GS40DC
1 8
$74.45
$0.00 $74.45
Sale Sold out
In Stock (10 or more)
Ships
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Shipping Cost: Free on orders over $100

  • Weight: 3.62 lb
  • Body Material: 316 Stainless Steel
  • Camlock (Cam & Groove) Size: 4 inch Dust Cap
  • Maximum Operating Pressure: NONE
  • Seal: Buna
  • Type: "DC" Quick Disconnect

Description

This 4 inch female camlock (Cam & Groove) dust cap is constructed from 316 Stainless Steel with a Buna seal. Designed as a "DC" quick disconnect type, it provides a simple and economical way to cap a 4 inch male camlock connection, preventing dust and debris ingress. This durable dust cap is suitable for various industrial applications involving salt water, waste water, chemicals, hydraulic oil, and coolants. It is not rated for pressure applications, compressed air, or steam service.

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

View full details

Additional Details

Global type "DC" stainless steel 4 inch female camlock (Cam & Groove) dust cap. Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female camlock cap will only fit a 4 inch male camlock

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Steel foundries
  • Mines
  • Construction
  • Chemical
  • Petroleum
  • Sanitary
  • Government
  • Nuclear
  • Aviation
  • Marine
  • Rail
  • Storage
  • Dry bulk

Applications

  • Stainless Steel: Use with salt water, waste water, and many chemicals; can also be used with hydraulic oll and coolants
  • Aluminum: Use with water, hydraulic oil, coolants, gasoline, and petroleum products
  • Brass: Use with water, can also be used with hydraulic oil, coolants, gasoline, and petroleum products

Specifications

Female Camlock Dimensions

  • Size: 4 inches (4.00)
  • Female Inside Diameter: 4 3/4 inches (4.763)

Download Spec Sheet

FAQs

What material is this camlock dust cap made from?

This camlock dust cap is made from 316 Stainless Steel, featuring a Buna seal for reliable closure.

What size male camlock fitting is this cap compatible with?

This 4 inch female camlock dust cap is designed to connect only to a 4 inch male camlock fitting.

Can this camlock dust cap be used in pressurized systems?

No, this dust cap is strictly for non-pressure applications and must not be used with compressed air, steam, or any pressurized systems for safety reasons.

What are the dimensions of the female inner diameter for this 4 inch cap?

The female inner diameter of this 4 inch camlock dust cap is 4 3/4 inches.

What types of fluids is the 316 Stainless Steel material suitable for?

The 316 Stainless Steel material is suitable for use with salt water, waste water, many chemicals, hydraulic oil, and coolants.

How does the quick disconnect mechanism work?

To make a connection, simply slide the adapter into the coupling and with normal hand pressure, press the cam levers down. To uncouple, lift the cam arms and remove the adapter.
