Twin Pack Black / Clear 4" x 10' Long Handle Hard Suction Hose (NH)

  • Twin Pack Black / Clear 4" x 10' Long Handle Hard Suction Hose (NH)
1 5
Price: $552.78
$0.00 $552.78
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Freight Charge $250 (Per Order)

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Nov 24, 2024


Item Number: 40HS10L-2
Weight: 40.0 lb

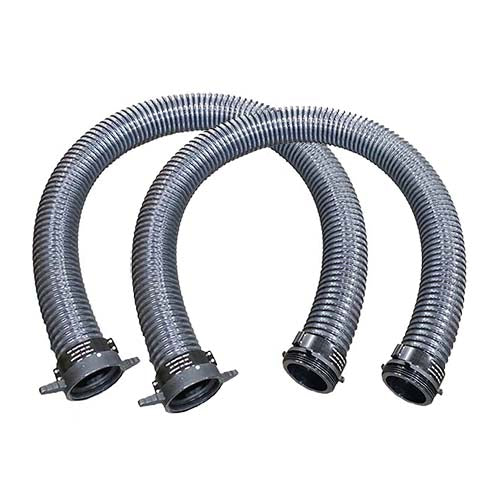

  • Includes: 2 Hoses
  • Hose Size: 4 inches (Inside Diameter)
  • Total Hose Length: 10 feet End-to-End (Approximately)
  • Male Coupling: Rocker Lug 4 inch Aluminum NH / NST
  • Swivel Female Coupling: Long Handle 4 inch Aluminum NH / NST
  • The Female Coupling will only Connect to a Male 4 inch NH / NST
  • The Male Coupling will only Connect to a Male 4 inch NH / NST
  • Vacuum Rating: 28 Hg
  • Working Outside Temperature: 22° F to 140° F
  • Hose Color - Black and Clear
  • Additional Handling or Freight Charge - See Shopping Cart
  • Multiple unit orders incur only 1 freight fee or oversize charge
  • Commercial Address Required for Freight Delivery
View full details

Description

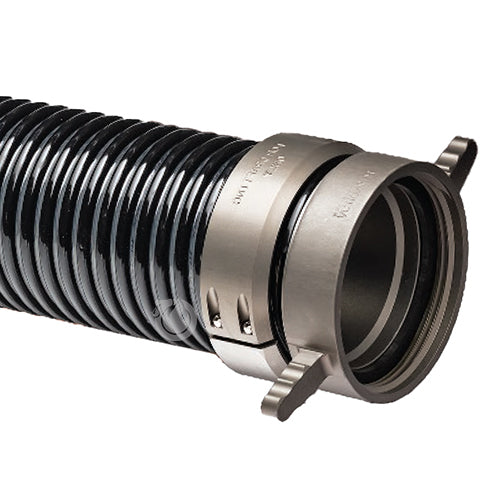

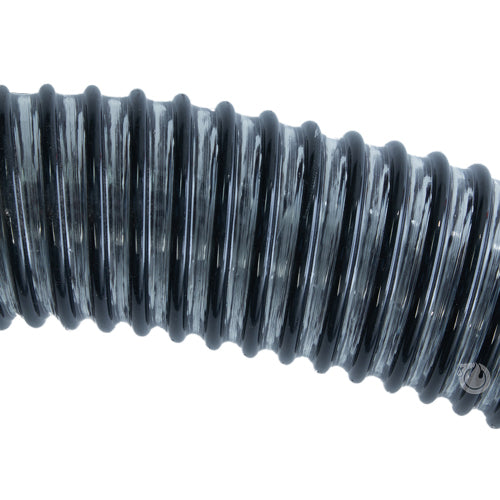

Durable PVC hard suction hose. Clear side wall allows visual check of water flow. External helix ribbing with smooth interior surface for maximum flow while drafting. The anodized aluminum hose couplings are field repairable.

Hose is made and assembled in the USA. All hoses are vacuum tested before shipment.

Warning- Not intended for hydrant pressure or head pressure from an above ground holding tanks. May be used on floating strainers, dry fire hydrants or below the ground holding tanks only.

Applications

  • Drafting from lakes, ponds, rivers, pools, wells, etc. during structural firefighting operations.

Shipping

Hose must shipped by freight to a commercial address only. Flat $115.00 freight fee up to four sections of hose to any of the lower 48 U.S. States. Single sections are available. Please contact customer service.

Warning: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer/birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Download Spec Sheet

Specifications

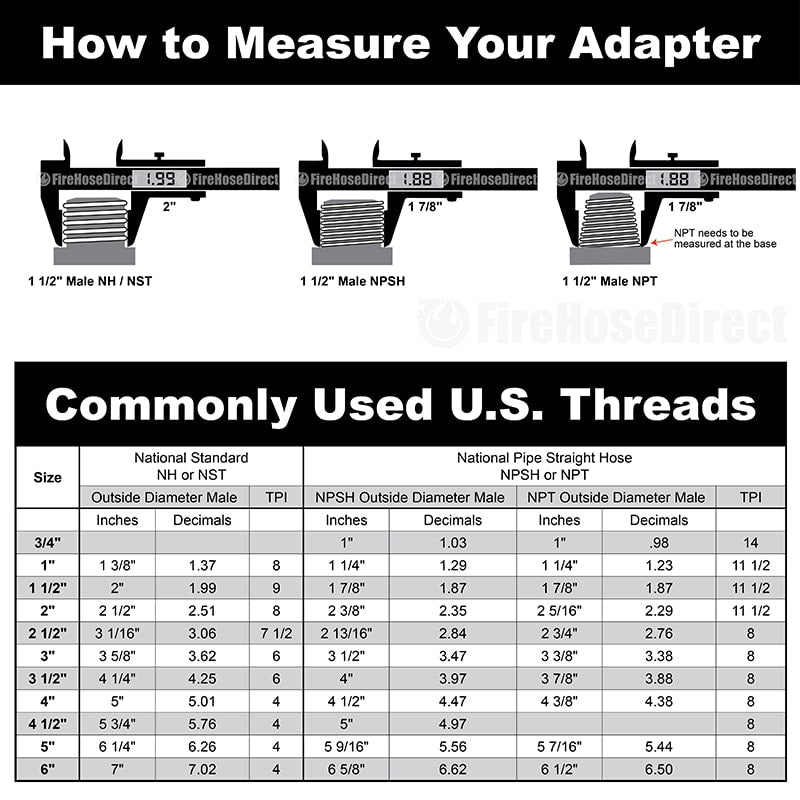

4" Hose Male Couplings

  • Inside diameter of a male coupling: 4 inches
  • Outside diameter of a male NH / NST coupling: 5 inches (5.01) - 4 Threads per inch

Help Me Connect

  • The female side of a garden hose will only connect to a male garden hose connection
  • The male side of a garden hose will only connect to a female garden hose connection

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
