Two Outlet 3 GPM 500 PSI Electric Fire Hose Tester

Skip to product information
1 of 4
Regular price Price: $2,512.41
Regular price $0.00 Sale price $2,512.41
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Freight Charge $300 (Per Order)

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Dec 6, 2024


Item Number: EFHT2
Weight: 151.0 lb
  • Pump Type: Electric
  • Power Source: 110/220 50/60 Hertz
  • Inlet: (1) 2 1/2 inch NST and (1) 3/4 inch GHT
  • Outlet: (2) 1 1/2 inch NH/NST
  • Max Pressure: 500 PSI
  • Max hose size: 6 inches
  • Max GPM in pressure mode: 3 GPM
  • Gauges: Stainless liquid filled
  • Meets NFPA 1962.7 and RMA Standards
  • Additional Handling or Freight Charge: See Shopping Cart
  • Multiple unit orders incur only 1 freight fee or oversize charge
  • Commercial Address Required for Freight Delivery
View full details

Collapsible content

Description

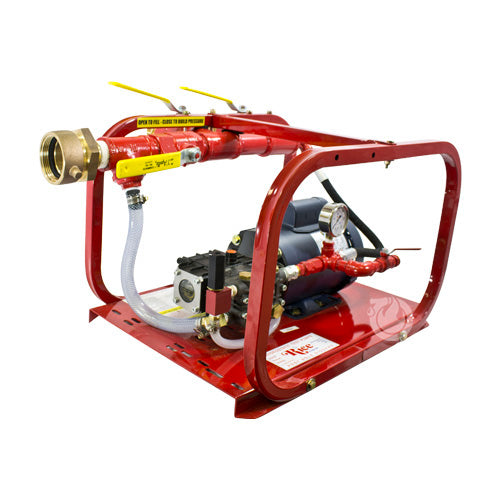

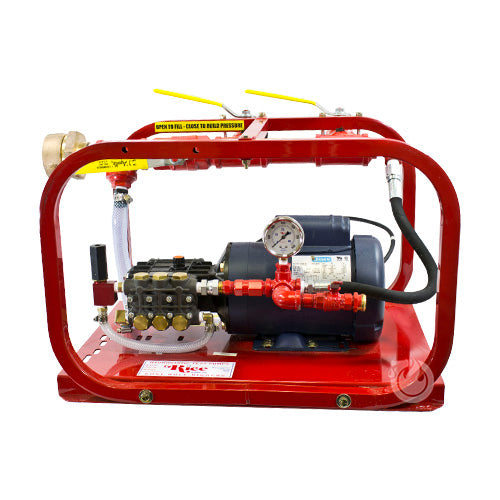

The two outlet 3 GPM 500 PSI electric fire hose testing machine is an essential tool for testing fire hose, sprinkler systems, and pressure vessels. This pump meets or exceeds the testing standards for NFPA 1962.7 and the RMA. The 1 HP electric pump is operated off of 110/220 Volt 50 or 60 Hertz service. It features a 3 GPM max flow in pressure mode and is capable of producing 500 PSI. Two independently controlled outlet ball-valves have NST couplings for connection to the hose. All gauges are stainless steel liquid-filled for accurate readings and long life. The pressure regulator is automatic with an inlet bypass for quick filling and bleeding of the fire hose or system. The frame is also constructed with a "roll cage" type frame for protection of the pump.



Specifications

Dimensions

  • Width: 28 inches
  • Length: 23 inches
  • Height: 19 inches
Garden Hose Thread Male Adapter
  • Outside diameter of a male GHT adapter: 1 1/16 inches (1.06) - 11.5 Threads per inch
  • Garden hose thread is not the same as 3/4 inch pipe thread (NPT)
1 1/2" Male Adapter
  • Inside diameter of a male adapter: 1 1/2 inches
  • Outside diameter of a male NH / NST adapter: 2 inches (1.99) - 9 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 1 7/8 inches (1.87) - 11.5 Threads per inch
2 1/2" Male Adapter
  • Inside diameter of a male adapter: 2 1/2 inches
  • Outside diameter of a male NH / NST adapter: 3 1/16 inches (3.06) - 7.5 Threads per inch
  • Outside diameter a male NPSH or NPT adapter: 2 7/8 inches (2.84) - 8 Threads per inch

Help Me Connect

  • The female side of a garden hose will only connect to a male garden hose connection
  • The male side of a garden hose will only connect to a female garden hose connection

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

This pump features a five year full product warranty from manufacturer's defect.
