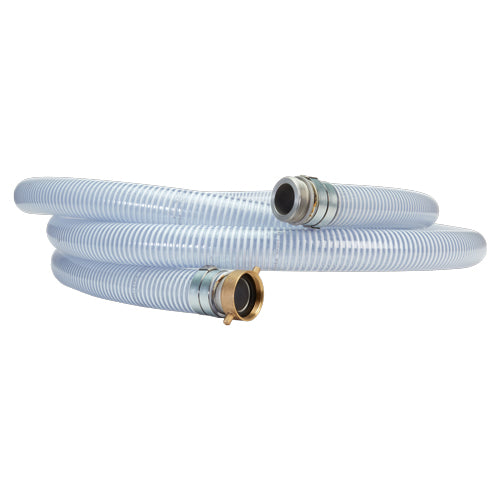

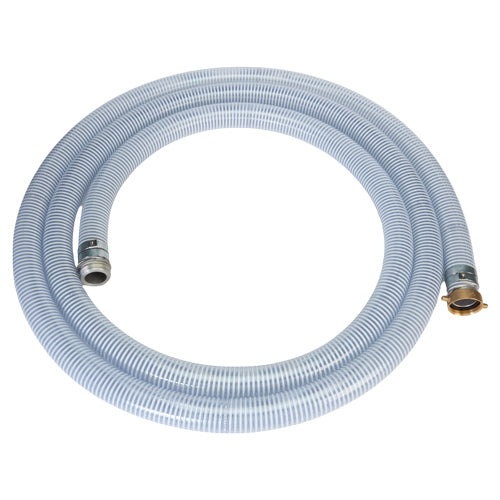

White - Clear 4" x 20' Thread / Thread Suction Hose

  • White - Clear 4" x 20' Thread / Thread Suction Hose
1 5
Price: $206.09
$206.09
Sale Sold out

Stock Level: 0

Product Status: Special Order

When Will it Ship: Contact for Lead Time

Shipping Cost: Freight Charge $250 (Per Order)

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: No

Stock Level Updated: Nov 24, 2024


Item Number: 40HS20PP
Weight: 41.0 lb
  • Suction Hose Length: 20 feet

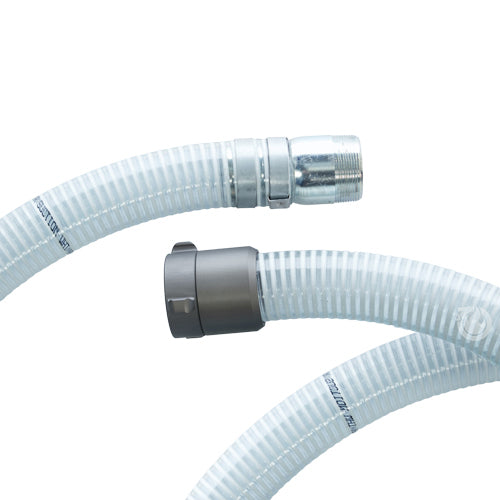

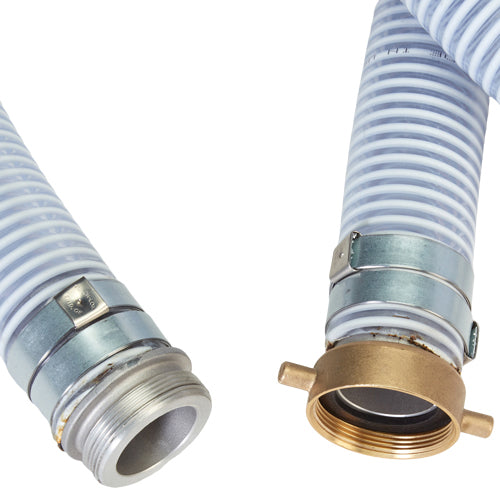

  • Male Coupling : Aluminum 4 inch NPT
  • Female Coupling : Brass 4 inch NPSH
  • The Female Coupling will only Connect to a Male 4 Inch NPSH, NPT or NPSM Threads
  • The Male Coupling will only Connect to a Female 4 Inch NPSH or NPSM Thread
  • Approx. Bend Radius: 7" at 68°
  • Working Temperature: -13° F to 140° F
  • Vacuum Rating: 29" Hg @ 68°, 24" HG at 104°
  • Additional Handling or Freight Charge: See Shopping Cart
  • Multiple unit orders incur only 1 freight fee or oversize charge
  • Commercial Address Required for Freight Delivery
View full details

Description

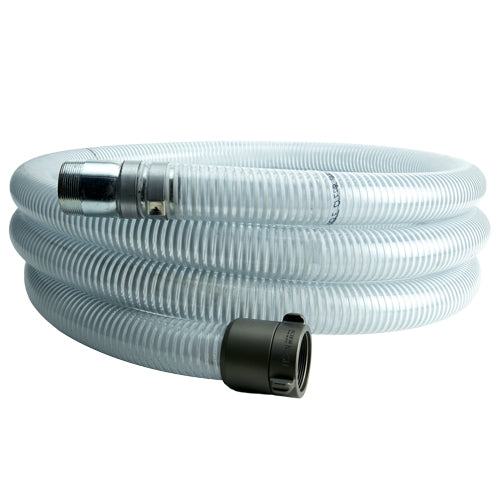

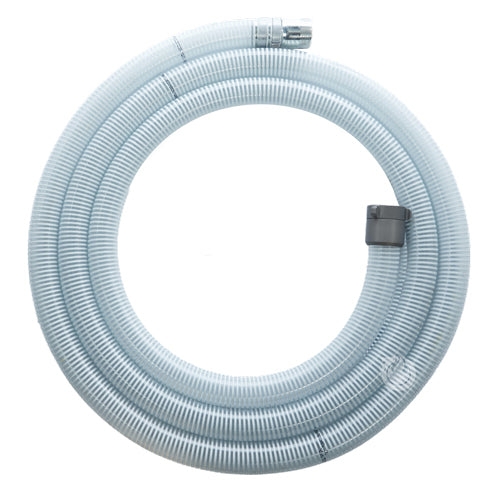

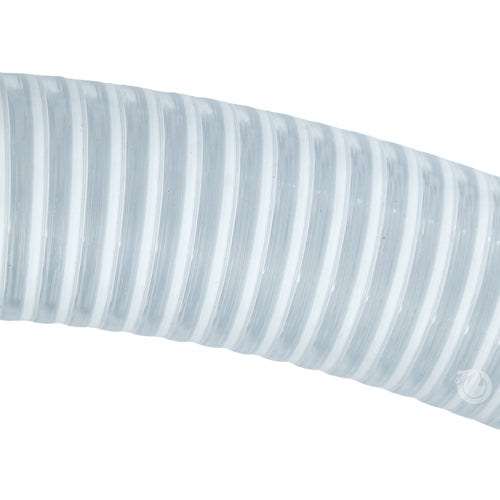

Our durable PVC hard suction hose is assembled in the USA. Clear side wall allows visual check of water flow. Lightweight pvc water suction hose is rated for medium duty. Reinforced with high tensile synthetic yarn and steel helix wire.

Applications

  • General purpose
  • Agricultural
  • Irrigation
  • Construction

Specifications

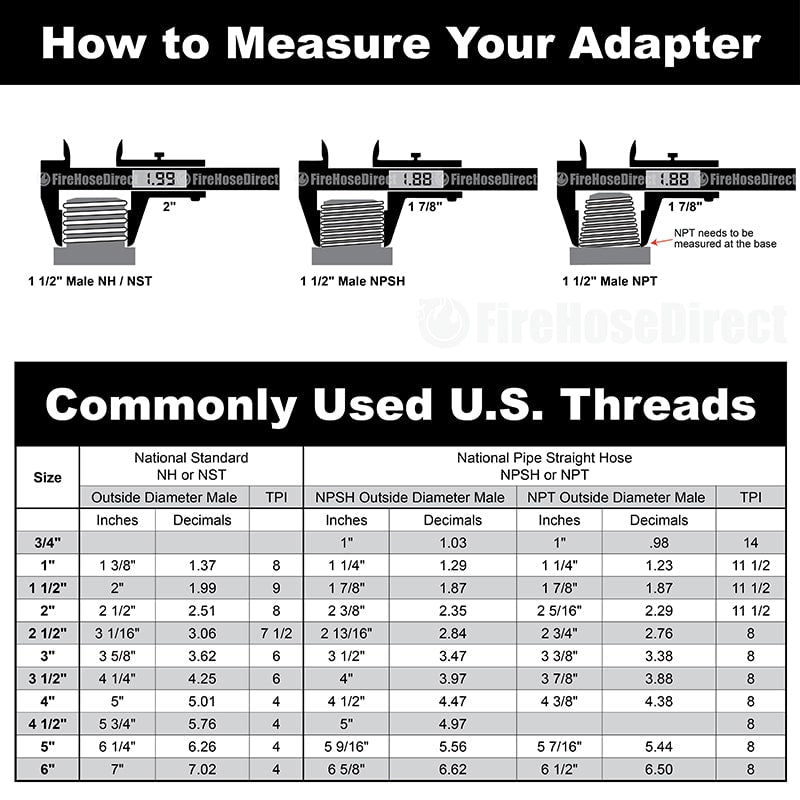

4" Male Hose Coupling
  • Inside diameter of a male adapter: 4 inches
  • Outside diameter of a male NH / NST adapter: 5 inches (5.01) - 4 Threads per inch
  • Outside diameter a male NPSH adapter: 4 1/2 inches (4.47) - 8 Threads per inch

Help Me Connect

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

  • The female side of a NH / NST coupling will only connect to a male NH / NST connection
  • The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

  • The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
  • The male side of a NPSH coupling will only connect to a female NPSH connection
  • It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Warranty Information

Limited 90-Day Warranty

We will replace any hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
