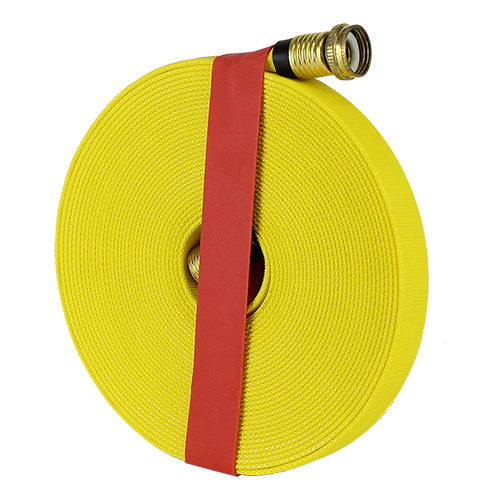

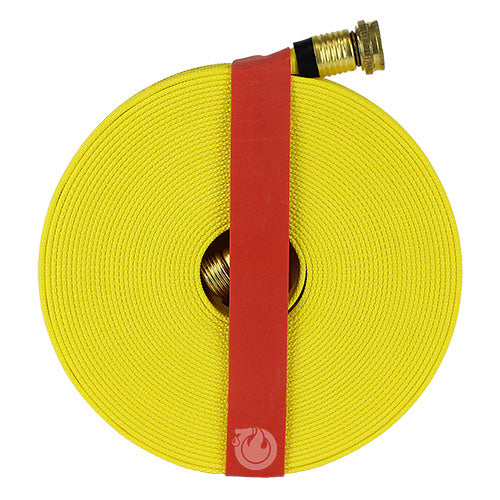

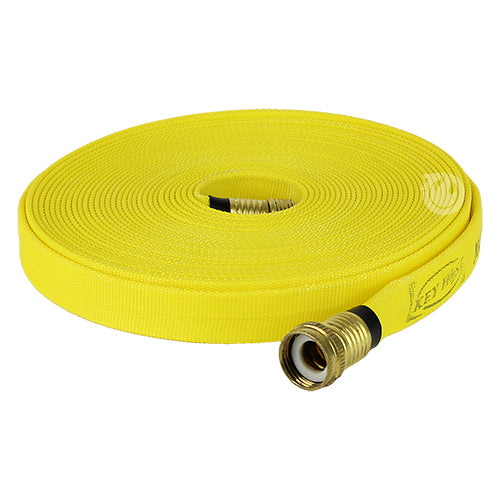

This hose is a lightweight forestry fire "mop-up" hose and is NOT intended to be a substitute for home garden hoses. It is thin walled and will kink at low pressure. Please see SKU 58G150GBL for a kink-free lightweight home garden hose. This hose is sometimes referred to as pencil line or toy hose in the wildland fire industry.

• Jacket constructed with filament polyester yarn in the warp, with filler yarns consisting of high strength, low elongation, filament polyester for reduced weight and increase flexibility. The polyurethane lining consists of a single-ply extruded tube of synthetic high tensile TPU compounded that resist ozone. Features a smooth finish for better flow characteristics.
• The hose is coupled with brass garden hose threaded couplings complete with gasket and fitted with strain reliefs inside the ferrules to protect the hose.
• This hose meets or exceeds all performance requirements of federal specification NSN# 4210‑01‑167‑1061.

Applications

• RV hose
• Forest firefighting
• Brush firefighting
• Grass firefighting
• Wildland firefighting
• Light industrial Use

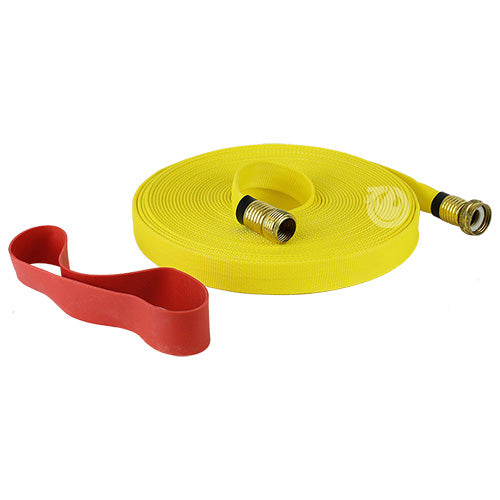

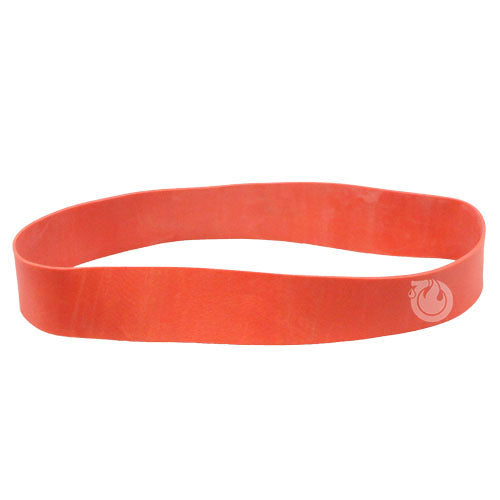

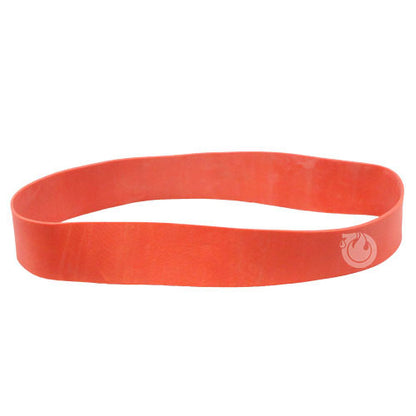

Fire hose retaining bands are for securing lengths of 1" or 1.5" forestry hose for storage, transport and deployment.

• Material - Natural Rubber
• Color - Red
• Length: 9 1/2"
• Width: 1 3/8"
• Thickness: 0.063"
• NFES - 0727
• NSN 4210-01-529-8489
• HS Code: 4016.99.3550

This Wildland Fire Equipment fire hose rubber retaining band is used by the U.S. Forest Service (USFS), Bureau of Land Management (BLM), Bureau of Indian Affairs (BIA), U.S. Fish & Wildlife Service (USF&WS), National Park Service (NPS), State and Local governments, and other Forest Service–sponsored participants in the government-wide wildland firefighting effort.

This is the same water-handling accessories fire hose rubber retaining band found in the Defense Logistics Agency (DLA) Wildland Fire Equipment catalog or Fedmall.mil.

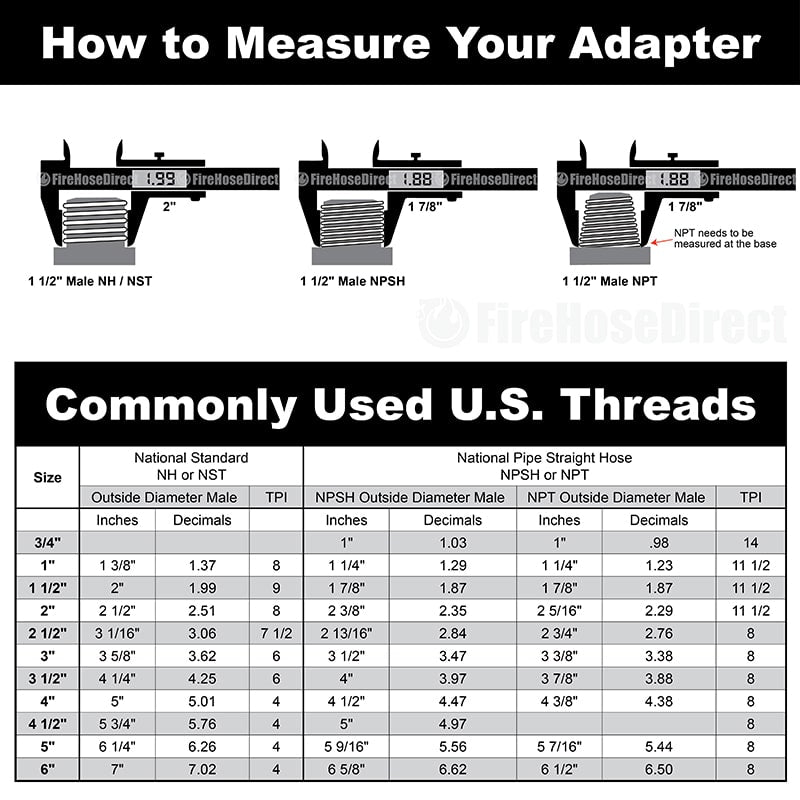

Garden Hose Thread

• Outside diameter of a male GHT adapter - 1 1/16 inches (1.06) - 11.5 Threads per inch
• Garden hose thread is not the same as 3/4 inch pipe thread (NPT)

1" Hose

• Inside diameter of a male adapter - 1 inch
• Outside diameter of a male NH / NST adapter - 1 3/8 inches (1.375) - 8 Threads per inch
• Outside diameter a male NPSH or NPT adapter - 1 5/16 inches (1.295) - 11.5 Threads per inch

Download Spec Sheet

Connections

• The female side of a NH / NST coupling will only connect to a male NH / NST connection
• The male side of a NH / NST coupling will only connect to a female NH / NST connection
• The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
• The male side of a NPSH coupling will only connect to a female NPSH connection.
  It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
• The female side of a garden hose will only connect to a male garden hose connection.
• The male side of a garden hose will only connect to a female garden hose connection.

NH / NST - The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

NPSH - National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

NPT - National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Limited 1-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
