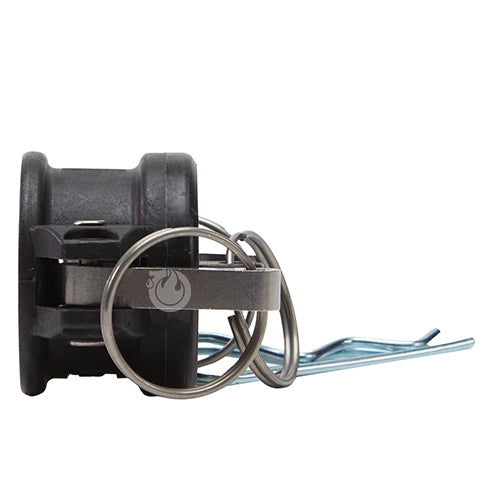

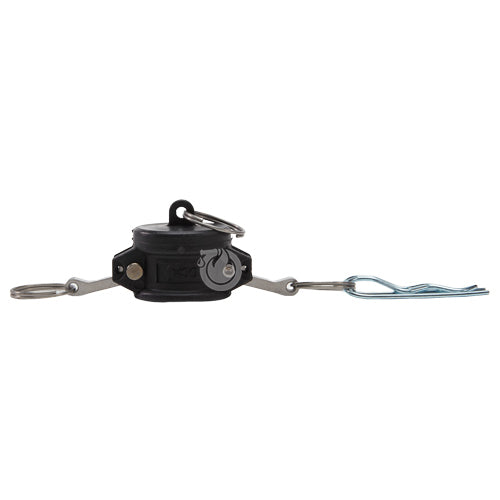

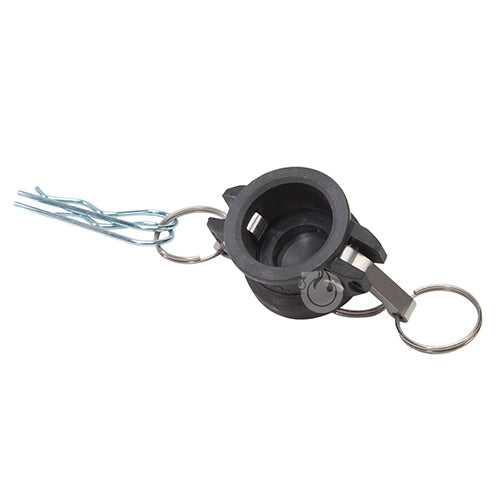

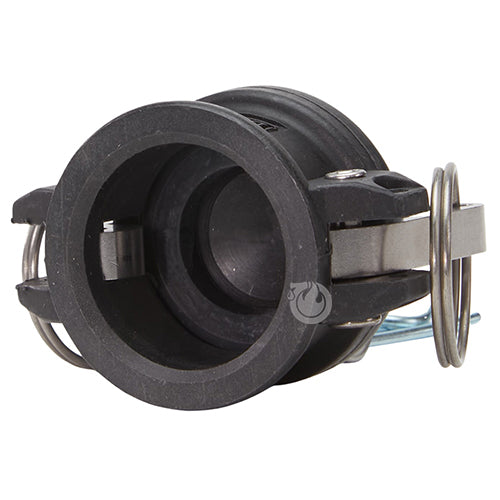

Plastic 3/4" Camlock Dust Cap

  • Plastic 3/4" Camlock Dust Cap
1 6
Price: $6.10
$0.00 $6.10
Sale Sold out

Stock Level: 10 or more

Product Status: In Stock

When Will it Ship:

Shipping Cost: Free on orders over $100

Shipping Transit Time: 2 to 5 Business Days

Eligible for Express Shipping: Yes

Stock Level Updated: Nov 21, 2024


Item Number: GP07DC
Weight: 0.25 lb
  • Body Material: Polypropylene
  • Camlock (Cam & Groove) Size: 3/4 inch Dust Cap
  • Maximum Operating Pressure: NONE
  • Seal: Buna
  • Type: "DC" Quick Disconnect
View full details

Description

Type "DC" polypropylene 3/4 inch female camlock (Cam & Groove) dust cap. Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.

Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Connections

  • The female side of this adapter will only connect to 3/4 inch male camlock

Warning: Polypropylene cam & groove should not be mixed with metal fittings. We recommend using polypropylene with other poly, plastic, pvc, banjo type camlock fittings.

How it works

  • To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

Cam and Groove Couplings Industries

  • Chemical
  • Sanitary
  • Government
  • Storage
  • Dry bulk
  • Petroleum

Applications

  • Reverse osmosis systems
  • Water treatment
  • Water transport
  • Irrigation
  • Waste / vacuum trucks
  • Hydraulic oil, coolants, gasoline and petroleum products
  • Salt water
  • Waste water
  • Chemical movement & storage

Specifications

Female Camlock Dimensions

  • Size: 3/4 inch (0.75)
  • Female Inside Diameter: 1 5/16 inches (1.289)

Download Spec Sheet

Warranty Information

Limited 1-Year Camlock Warranty - We will replace any camlock fitting with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, multiple use of NPT threads, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.
